We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:

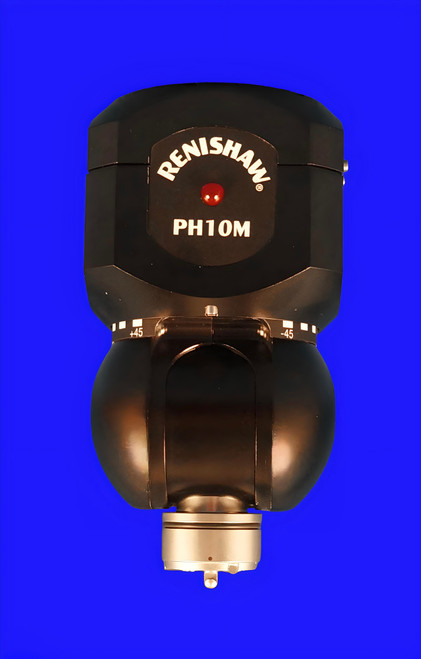

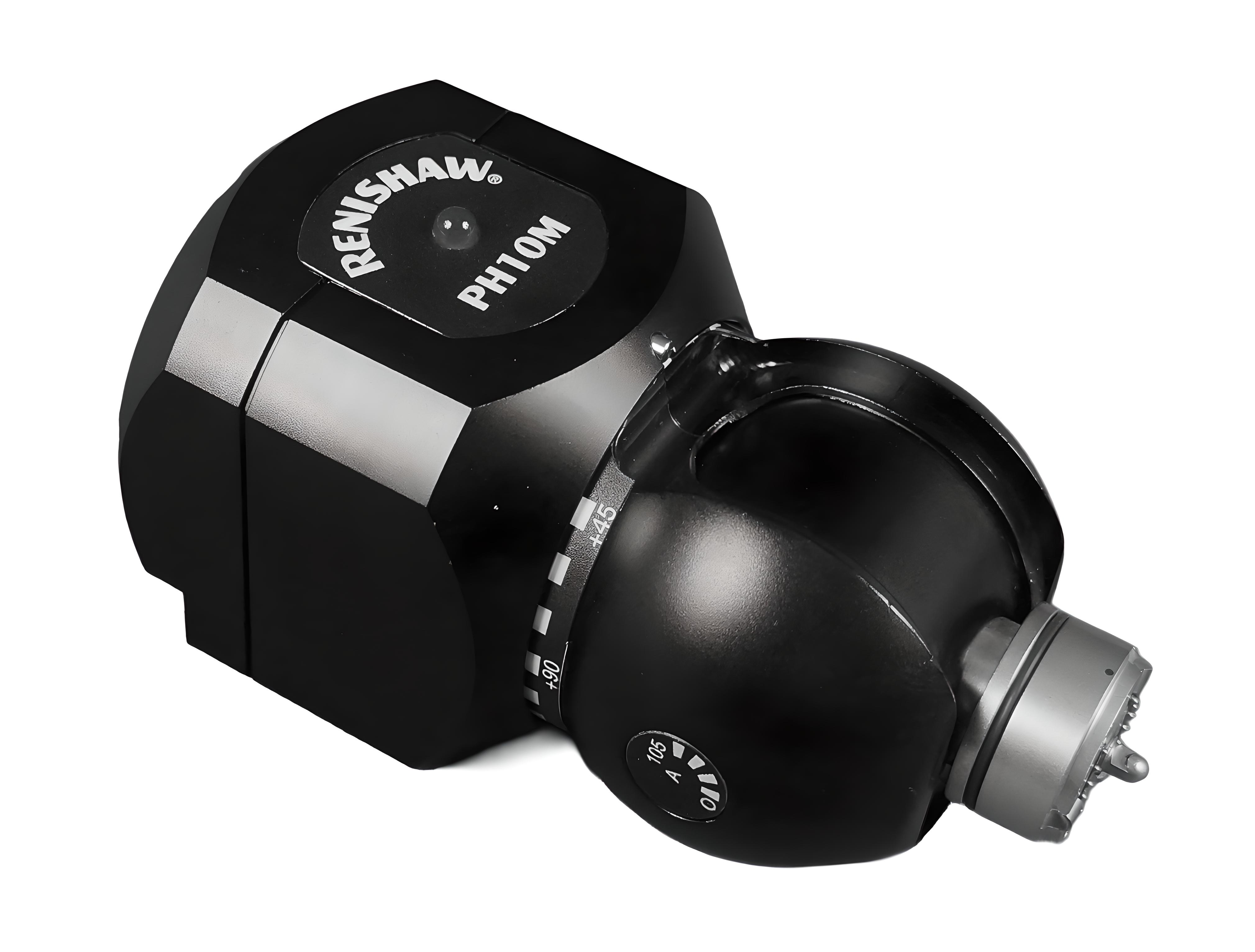

Renishaw PH10M Motorized CMM Probe Head Fully Tested with 90 Day Warranty
About PH10 Models
The range comprises three PH10 models, each of which can carry a range of probes and extensions and can be orientated in 720 repeatable positions, giving access to the most difficult-to-reach workpiece features.
All three variants of the new PH10 heads are now supplied with a revised repeatability specification, down from 0.5 µm (2?) to just 0.4 µm (2?) (specified at a distance of 62 mm), giving users improved positioning at the stylus tip. The new specification heads are physically differentiated by a new ‘aqua blast’ finish which gives a modern, matt black appearance.
All the heads in the range incorporate the following features:720 indexing positions
0.5 µm (2 s) indexing repeatability
7.5° indexing steps in both axes
300 mm extension bar capability
Additionally, the PH10M and PH10MQ heads offer the following features:
Autochange compatibility
Multiwired probe compatibility
PH10MQ
The PH10MQ is a variant of the PH10M that allows the motorised head to be attached directly to the quill with the B axis of the head inside the quill itself. This option provides a neater and shorter probe mount, with only the A axis protruding from the quill.
PH10MQ Specification
| Length | 73 mm |
| Width | 80 mm |
| Weight | 730 g |
| Probe mounting | Autojoint (multiwire) |
| Head mounting | Direct to quill |
| Suitable controller | PHC10-2 |
| Repeatability of position | 0.4 µm (0.00002 in) specified at a distance of 62 mm |
| Total no. of positions | 720 |
| Max recommended drive torque | 0.45 Nm |
| Maximum extension bar | 300 mm (11.8 in) using PAA3 extension |
This is a great price for a Renishaw PH10M CMM Probe Head Fully Tested with 90 Day
Warranty. Why pay retail prices when you can purchase with warranty from Metrology Parts.
Purchase with confidence from a verified Paypal retailer. If what you order is not what you
receive you will get a full refund for this sale. Metrology Parts would like the opportunity to
earn your business for this sale and all of your future Renishaw needs. If you have any
questions feel free to contact us. With 36 plus years of experience with Renishaw products we
can help with all your application needs as well as your after sales support.
