We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: PH10M
MPN: A-1025-0050
Item Description

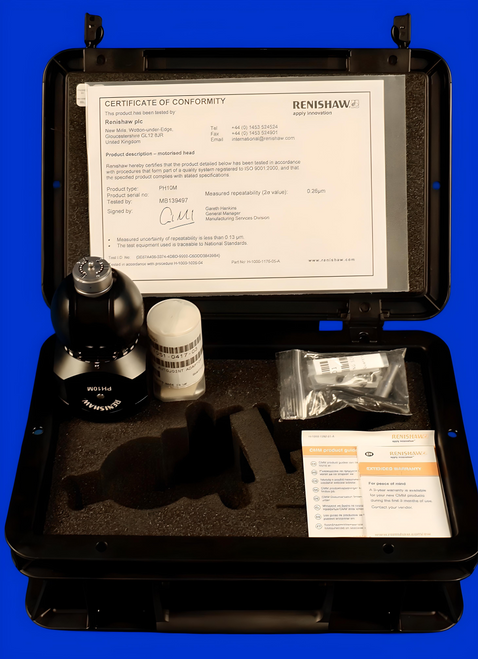

Renishaw PH10M Motorized CMM Probe Head 2023 New Stock in Box with 1 Year Warranty.
About PH10 Probe Heads
The range comprises three PH10 models, each of which can carry a range of probes and extensions and can be orientated in 720 repeatable positions, giving access to the most difficult-to-reach workpiece features.
All three variants of the new PH10 heads are now supplied with a revised repeatability specification, down from 0.5 µm (2?) to just 0.4 µm (2?) (specified at a distance of 62 mm), giving users improved positioning at the stylus tip. The new specification heads are physically differentiated by a new ‘aqua blast’ finish which gives a modern, matt black appearance.
PH10M
The PH10M can carry long extension bars and complex probes such as SP25M or TP7M. The highly repeatable autojoint allows rapid probe or extension bar changing without the need for re-qualification.
PH10M Specification
| Length | 117 mm |
| Width | 62 mm |
| Weight | 645 g |
| Probe mounting | Autojoint (multiwire) |
| Head mounting | PH10M shank to suit CMM |
| Suitable controller | PHC10-2 PHC10-3 |
| Repeatability of position | 0.4 µm (0.00002 in) specified at a distance of 62 mm |
| Total no. of positions | 720 |
| Max recommended drive torque | 0.45 Nm |
| Maximum extension bar | 300 mm (11.8 in) using PAA3 extension |
We can also supply you with a new or used controller and custom made cables for your machine if your application requires a complete retrofit package.
This by far is a great price for a Renishaw PH10M CMM Motorized Probe Head 2023 New Stock in Box
with 1 Year Warranty. Why pay retail prices when you can purchase new with warranty from Metrology
Parts. Purchase with confidence from a verified Paypal retailer. If what you order is not what you receive
you will get a full refund for this sale. Metrology Parts would like the opportunity to earn your
business for this sale and all of your future Renishaw needs. If you have any questions feel free to
contact us. With 36 plus years of experience with Renishaw products we can help with all your
application needs as well as your after sales support.
