Renishaw PH10M Motorized CMM Probe Head & PAA1 Display Model with 6 Month Warranty.
Each of the heads in the PH10 motorised probe head range is a general purpose, versatile unit designed specifically for use on direct computer controlled (DCC) coordinate measuring machines (CMMs).
The range comprises three heads:
PH10T
PH10M
PH10MQ
All the heads in the range incorporate the following features:
720 indexing positions
0.5 µm (2 s) indexing repeatability
7.5° indexing steps in both axes
300 mm extension bar capability
Additionally, the PH10M and PH10MQ heads offer the following features:
Autochange compatibility
Multiwired probe compatibility
PH10M
The PH10M can carry long extension bars and complex probes such as SP25M or TP7M. The highly repeatable autojoint allows rapid probe or extension bar changing without the need for re-qualification.
The above photo shows the shank-mounted PH10M motorised probe head fitted with an AM1 adjustment module, SP25M Probe Body, SM25-1 Module & M3 Stylus.
PH10M Specification

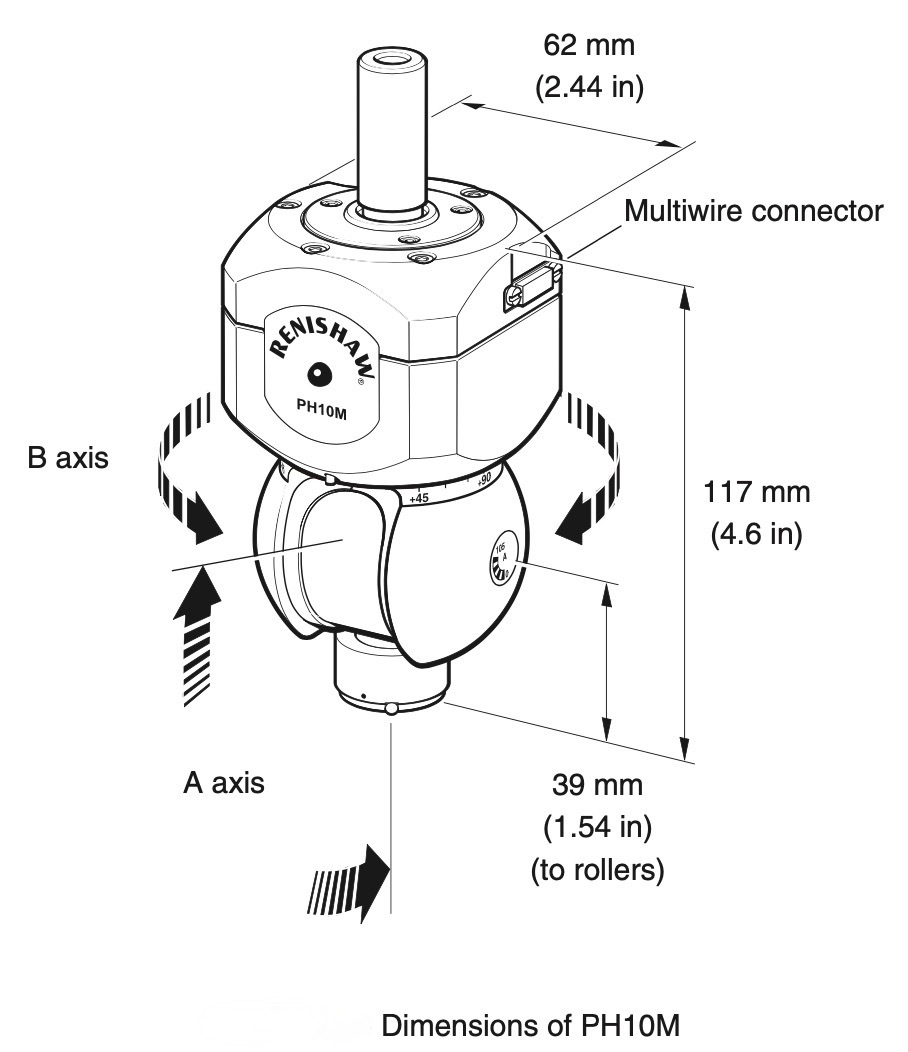

PH10M Probe Head Dimensions
PAA1 Autojoint Extension
PAA autojoint to M8 extension bars, available in three lengths, allow standard two-wire touch-trigger probes to be fitted to autojointed heads, for example TP20 to PH10M or MIH.
Technical Table
| Length (mm) | 30 |
|---|---|
| Material | Steel |
