Renishaw PH10M Motorized CMM Probe Head New Stock in Box & PAA1 Autojoint New with 1 Year Warranty .
About PH10 Probe Heads
The range comprises three PH10 models, each of which can carry a range of probes and extensions and can be orientated in 720 repeatable positions, giving access to the most difficult-to-reach workpiece features.
All three variants of the new PH10 heads are now supplied with a revised repeatability specification, down from 0.5 µm (2?) to just 0.4 µm (2?) (specified at a distance of 62 mm), giving users improved positioning at the stylus tip. The new specification heads are physically differentiated by a new ‘aqua blast’ finish which gives a modern, matt black appearance.

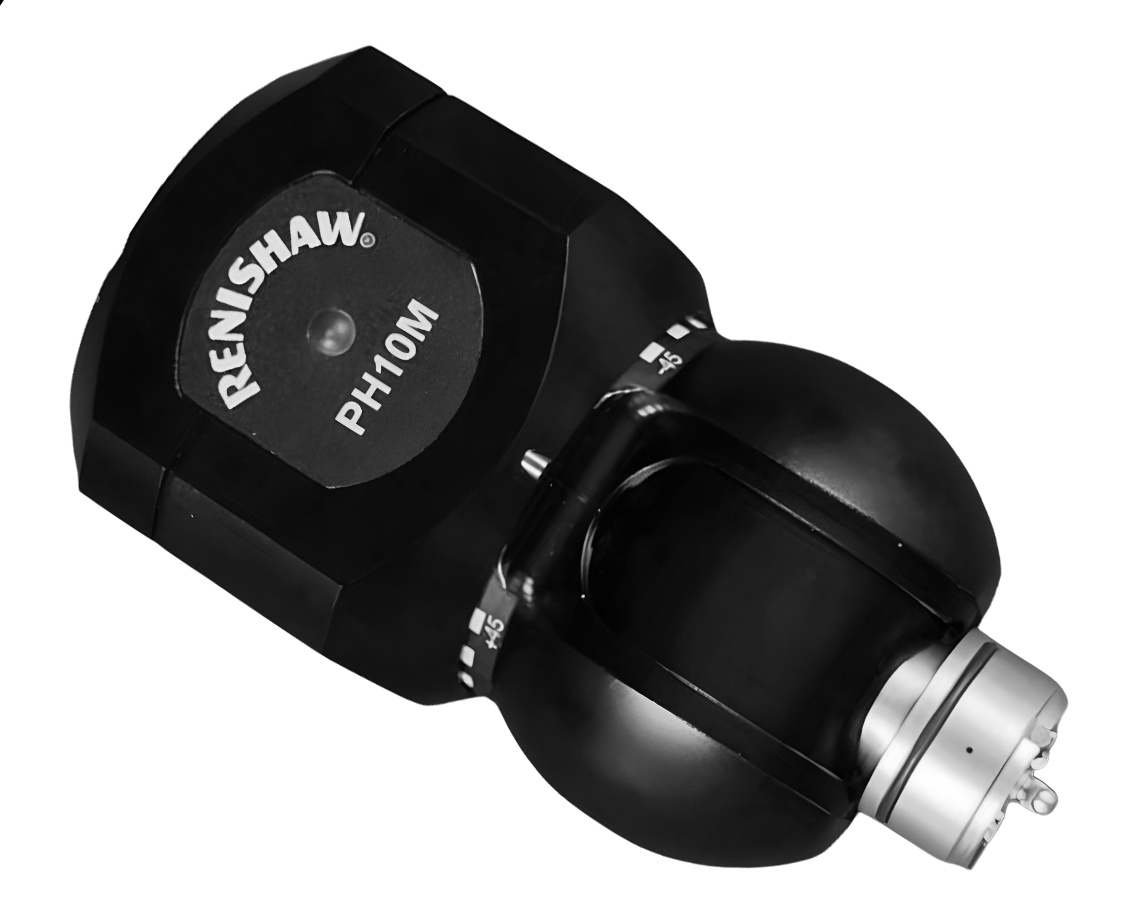

PH10M
The PH10M can carry long extension bars and complex probes such as SP25M or TP7M. The highly repeatable autojoint allows rapid probe or extension bar changing without the need for re-qualification.
PH10M Specification
| Length | 117 mm |
| Width | 62 mm |
| Weight | 645 g |
| Probe mounting | Autojoint (multiwire) |
| Head mounting | PH10M shank to suit CMM |
| Suitable controller | PHC10-2 PHC10-3 |
| Repeatability of position | 0.4 µm (0.00002 in) specified at a distance of 62 mm |
| Total no. of positions | 720 |
| Max recommended drive torque | 0.45 Nm |
| Maximum extension bar | 300 mm (11.8 in) using PAA3 extension |
PAA1 Autojoint
PAA autojoint to M8 extension bars, available in three lengths, allow standard two-wire touch-trigger probes to be fitted to autojointed heads, for example TP20 to PH10M or MIH.
Compatible Heads:
PH10M PLUS * PH10MQ PLUS * PH10M-IQ PLUS * MIH * PH6M * PHS1
Compatible Probes:
TP20 * TP200 * TP6 * TP2
Technical Table
| Length (mm) | 30 |
|---|---|
| Length (in) | 1.18 |
| Material | Steel |
| Thread | M8 |
* We can also supply you with a new or used controller and custom made cables for your machine if your application requires a complete retrofit package *
This by far is a great price for a Renishaw PH10M CMM Motorized Probe Head New Stock in Box &
PAA1 Autojoint New with 1 Year Warranty. Why pay retail prices when you can purchase new with
warranty from Metrology Parts. Purchase with confidence from a verified Paypal retailer. If what you
order is not what you receive you will get a full refund for this sale. Metrology Parts would like the
opportunity to earn your business for this sale and all of your future Renishaw needs. If you have any
questions feel free to contact us. With 36 plus years of experience with Renishaw products we can help
with all your application needs as well as your after sales support.
