We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: TP200
MPN: A-1207-0020
Fully Tested in Box Renishaw TP200 CMM Probe Body with 90 Day Warranty.
The TP200 is a electronic probe using strain gauge technology which gives higher accuracy than
kinematic touch trigger probes.

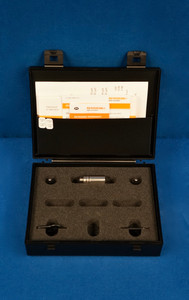

Whats included in this sale is one used TP200 probe body, cleaning kit, styli and body tools in original
foam lined Renishaw box.
Renishaws current retail price for all that is included in this sale is $4021.00
The TP200 system components are:
There is also an EO module (extended overtravel) which has the same overtravel force as the SF
but provides increased operating range and protection in the probe Z axis.
The TP200 probe uses micro strain gauge transducers to deliver excellent repeatability and accurate
3D form measurement even with long styli. The sensor technology gives sub-micron repeatability and
eliminates the probing characteristics encountered with kinematic probes. The solid state ASIC electronics
within the probe ensure reliable operation over millions of trigger points.
The TP200B uses the same technology as TP200 but has been designed to have higher tolerance to
vibration. This helps to overcome the problem of 'air' trigger generation which can arise from
vibrations transmitted through the CMM or when using long styli with faster positioning speeds.
Please note that we do not recommend the use of TP200B with the LF module or cranked/star styli.
| Summary | TP200 | TP200B |
|---|---|---|
| Principal application | DCC CMM where high accuracy is required. | As TP200 but where 'air' trigger events occur. |
| Sense directions | 6-axis: ±X, ±Y, ±Z | 6-axis: ±X, ±Y, ±Z |
| Unidirectional repeatability (2s µm) | Trigger level 1: 0.40 µm (0.000016 in) Trigger level 2: 0.50 µm (0.00002 in) | Trigger level 1: 0.40 µm (0.000016 in) Trigger level 2: 0.50 µm (0.00002 in) |
| XY (2D) form measurement deviation | Trigger level 1: ±0.80 µm (0.000032 in) Trigger level 2: ±0.90 µm (0.000036 in) | Trigger level 1: ±1 µm (0.00004 in) Trigger level 2: ±1.2 µm (0.000047 in) |
| XYZ (3D) form measurement deviation | Trigger level 1: ±1 µm (0.00004 in) Trigger level 2: ±1.40 µm (0.000056 in) | Trigger level 1: ±2.50 µm (0.0001 in) Trigger level 2: ±4 µm (0.00016 in) |
| Repeatability of stylus change | With SCR200: ±0.50 µm (0.00002 in) max. Manual: ±1 µm (0.00004 in) max. | With SCR200: ±0.50 µm (0.00002 in) max. Manual: ±1 µm (0.00004 in) max. |
| Trigger force (at stylus tip) | XY plane (all modules): 0.02 N Z axis (all modules): 0.07 N | XY plane (all modules): 0.02 N Z axis (all modules): 0.07 N |
| Overtravel force (@ 0.50 mm displacement) | XY plane (SF/EO module): 0.2 N to 0.4 N | XY plane (SF/EO module): 0.2 N to 0.4 N |
| Weight (probe sensor and module) | 22 g (0.78 oz) | 22 g (0.78 oz) |
| Maximum extension (if on a PH10 series head) | 300 mm (11.81 in) | 300 mm (11.81 in) |
| Maximum recommended stylus length (M2 styli range) | SF/EO module: 50 mm (1.97 in) steel to 100 mm (3.94 in) GF LF module: 20 mm (0.79 in) steel to 50 mm (1.97 in) GF | SF/EO module: 50 mm (1.97 in) steel to 100 mm (3.94 in) GF LF module: 20 mm (0.79 in) steel to 50 mm (1.97 in) GF |
| Mounting method | M8 thread | M8 thread |
| Suitable interface | PI200, UCC | PI200, UCC |
