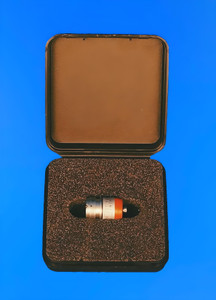

Renishaw TP20 Standard Force CMM Touch Probe Module Display Model

MSRP: $1,114.00
$670.00
(You save $444.00)
(No reviews yet) Write a Review
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
CONDITION:
New / Display Model

Out of stock

Product Description

Condition:

New – Open box: An item in excellent, new condition with no functional defects. The item has it's original packaging and was used for demo purposes. This item comes with a 6 Month Warranty.



Country of Manufacture:   UNITED KINGDOM

Brand:   RENISHAW

Model:   TP20

MPN:   A-1371-0270



Item Description

Renishaw TP20 Standard Force Stylus Module Display Model with 6 Month Warranty.

This sale is for the touch probe module only and does not include the touch probe body

About TP20

The TP20 is a compact module changing touch-trigger probe. The two-piece design, comprising of a probe body and detachable stylus module(s), allows the use of a range of stylus configurations and extensions to access features on complex parts. Modules can be changed manually or automatically without the need for requalification of the stylus tip.


The standard force probe module, identified by a black cap, is suited to the majority of applications requiring extensions up to 50 mm long. The standard force probe module can be used with the following range of styli:

Straight styli up to 50 mm long

Star and cranked styli up to 20 mm offset

TP20 Probe Body

Houses one half of the highly repeatable magnetic kinematic
coupling

Contains a magnetic proximity switch to inhibit triggering of
the probe during automatic module changing with MCR20



NOTE: If the probe is operated close to magnetised parts/clamping etc, the probe trigger may become inhibited. Countermeasures include the use of long styli, stylus extensions or body orientation to increase the distance to the magnetic source. Alternatively, use the TP20NI probe body.

TP20NI Probe Body

Probe body not affected by magnetic fields

Probe trigger must be inhibited through software during change cycles using the MCR20

TP20 Stylus Modules

The TP20 stylus module houses the kinematic switching touch sensor mechanism, carries the stylus assembly and provides overtravel in ±X, ±Y and +Z axes (or ±Z in the case of TP20 6-way module). The stylus mounting thread accepts styli from the Renishaw M2 range.

TP20 Specification

Sense directions

All modules except 6W

6W

±X, ±Y, +Z

±X, ±Y, ±Z

Suitable interface   PI4-2, PI7-2, PI200, UCC
Pre-travel variation

LF

SF / EM1 / EM2

MF

EF

6W

±0.60 µm (± 0.000023 in)

±0.80 µm (± 0.000032 in)

±1.00 µm (± 0.000039 in)

±2.00 µm (± 0.000079 in)

±1.50 µm (±0.000058 in)

Unidirectional repeatability

 LF / SF / EM1 / EM2

MF

EF

6W

±0.35 µm (± 0.000014 in)

±0.50 µm (± 0.000020 in)

±0.65 µm (± 0.000026 in)

±0.80 µm (± 0.000032 in)

Repeatability of stylus changing

MCR20

Manual

±0.50 µm (± 0.000020 in)

±1.00µm (± 0.000040 in)

Stylus range   M2
Mounting method   M8 thread





This is by far the best price you will find for a Renishaw TP20 Standard Force Stylus Module Display

Model 6 Month Warranty. Why pay retail prices when you can purchase a display model with warranty

from Metrology parts. Purchase with confidence from a Paypal verified retailer. If what you order is not

what you receive you will be refunded the full purchase price for this sale. Metrology Parts would like

the opportunity to earn your business for this sale and all of your future Renishaw product needs. If

you have any questions feel free to contact us. With 36 plus years of experience with Renishaw products

we can help with all of your application needs as well as your after sales support.
