Renishaw TP20 Extended Force CMM Probe Module Display Model - 6 Month Warranty

MSRP: $1,114.00
$670.00
(You save $444.00)
(No reviews yet) Write a Review
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
CONDITION:
Display Model

Product Description

Condition:

New/ Display Model: An item in excellent, new condition with no functional defects. The item has it's original packaging and was used for demo purposes. This item comes with a 6 Month Warranty.



Country of Manufacture:   UNITED KINGDOM

Brand:   RENISHAW

Model:   TP20

MPN:   A-1371-0272



Item Description

Renishaw TP20 Extended Force Stylus Module Fully Tested with 90 Day Warranty.


This sale is for the touch probe module only and does not include the touch probe body

About TP20

The TP20 is a compact module changing touch-trigger probe. The two-piece design, comprising of a probe body and detachable stylus module(s), allows the use of a range of stylus configurations and extensions to access features on complex parts. Modules can be changed manually or automatically without the need for requalification of the stylus tip.

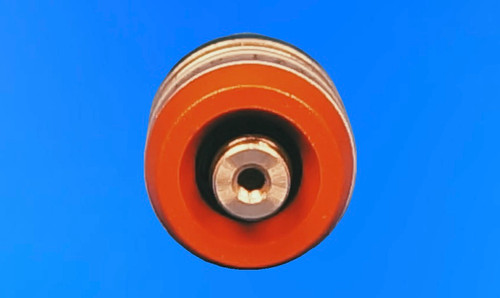

The extended force stylus module is identified by a brown cap. Typically, this stylus module will only be required with large stylus assemblies, and where spurious ‘air' triggers caused by machine vibration and acceleration, preclude the use of either SF, LF or MF modules.

* Straight styli up to 50 mm long * Star and cranked styli up to 20 mm offset *

Technical Drawing

TP20 Probe Body

Houses one half of the highly repeatable magnetic kinematic
coupling. Contains a magnetic proximity switch to inhibit triggering of
the probe during automatic module changing with MCR20



NOTE: If the probe is operated close to magnetised parts/clamping etc, the probe trigger may become inhibited. Countermeasures include the use of long styli, stylus extensions or body orientation to increase the distance to the magnetic source. Alternatively, use the TP20NI probe body.

TP20NI Probe Body

Probe body not affected by magnetic fields. Probe trigger must be inhibited through software during change cycles using the MCR20

TP20 Stylus Modules

The TP20 stylus module houses the kinematic switching touch sensor mechanism, carries the stylus assembly and provides overtravel in ±X, ±Y and +Z axes (or ±Z in the case of TP20 6-way module). The stylus mounting thread accepts styli from the Renishaw M2 range.

TP20 Dimensions & Technical Data







This is by far the best price you will find for a Renishaw TP20 Extended Force Stylus Module

Display Model with 6 Month Warranty. Why pay retail prices when you can purchase with

warranty from Metrology parts. Purchase with confidence from a Paypal verified retailer. If what

you order is not what you receive you will be refunded the full purchase price for this sale.

Metrology Parts would like the opportunity to earn your business for this sale and all of your

future Renishaw product needs. If you have any questions feel free to contact us. With 36 plus

years of experience with Renishaw products we can help with all of your application needs as

well as your after sales support.
