Condition:
Display Model: An item in excellent, new condition with no functional defects. This item was used for demo purposes and comes with a 6 Month Warranty.
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: TP20 NI BODY
MPN: A-1371-0636
Item Description

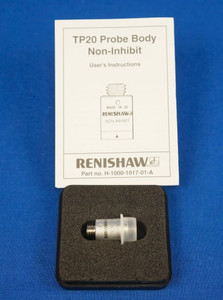

Renishaw TP20 NI Touch Probe Body Display Model with 6 Month Warranty.
The TP20 is a compact 5-way, or 6-way, kinematic touch-trigger probe system. The two-piece design, comprising probe body and detachable stylus module(s), connected using a highly repeatable magnetic kinematic coupling. This provides the facility to change stylus configurations either manually or automatically without the need for requalification of the stylus tips, thereby giving significant time savings in inspection routines. Modules offering a range of trigger forces allow the probe performance to be best matched to the measurement task. A set of probe extensions is also available, as is a 6-way module. The stylus mounting thread accepts styli from the Renishaw M2 range. The TP20 system is easily retrofitted and is compatible with existing touch trigger probe interfaces, extensions and adaptors.
* NI PROBE BODY NOTE: *
If the probe is operated close to magnetised parts/clamping etc, the probe trigger may become inhibited. Countermeasures include the use of long styli, stylus extensions or body orientation to increase the distance to the magnetic source. Alternatively, use the TP20NI probe body.
Probe body not affected by magnetic fields
Probe trigger must be inhibited through software during change cycles using the MCR20
This is the best price you will find on a Renishaw TP20 Non-Inhibit Probe Body Display Model with 6
Month Warranty. Why pay retail when you can buy new from Metrology parts. Purchase with
confidence from a Paypal verified retailer. If what you order is not what you receive you will be
refunded the full purchase price for this sale. Metrology Parts would like the opportunity to earn your
business for this sale and all of your future Renishaw product needs. If you have any questions feel free
to contact us. With 36 plus years of experience with Renishaw products we can help with all of your
application needs as well as your after sales support.
