Condition:
New – NO BOX: An item in excellent, new condition with no functional defects. The item is missing original packaging and used for demo purposes. The item includes accessories found with the original product and a 6 Month Warranty.
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: TCR20
MPN: A-1371-1001
Renishaw TCR20 CMM Probe Module Change Rack Display Model - 6 Month Warranty.

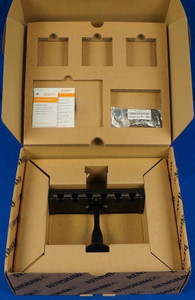

Whats included in this sale is a TCR20 Module Changing Rack, install kit and qualification styli.
This sale DOES NOT include any TP20 modules.
The TCR20 module changing rack provides rapid automatic changing of probe modules without the need to requalify.
Rack function is completely passive and does not require any electrical connections.
The TCR20 module changing rack is passive and can store up to six TP20 probe modules for automatic changing under measurement program control.
| Ports | 6 |
|---|
TCR20 is a compact probe module rack for use with PH20 that provides the capability for quick and repeatable tool changing and tip correction.
Based on the industry standard range of MCR20 rack systems, TCR20 securely stores modules for rapid automatic changing, protecting mating surfaces from any airborne contaminants within the working envelope of the machine.
TCR20 carries the full range of TP20 modules for use with a PH20 system and can accommodate a range of module and stylus combinations.
TCR20 features an integrated tip datum artefact in the centre of the rack assembly, reducing cycle time when measuring and performing the tip correct procedure.
Tip correction is key when the absolute highest level of accuracy is required for certain applications. It compensates for any residual variations after a tool change, maintaining a market leading level of accuracy from PH20.
| Specification | |
|---|---|
| Width | 200 mm (7.87 in) |
| Depth | 57 mm (2.24 in) |
| Base Diameter | 50 mm (1.97 in) |
