Renishaw SP25M SM25-2 CMM Scanning Module Demonstration Kit With 6 month Warranty A-2237-1112

MSRP: $5,094.00
$2,275.00
(You save $2,819.00)
(No reviews yet) Write a Review
Weight:
3.00 LBS
Shipping:
Calculated at Checkout

Product Description



Condition:

Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended.







Country of Manufacture:   UNITED KINGDOM

Brand:   RENISHAW

Model:   SM25-2 SCANNING MODULE

MPN:   A-2237-1112









Item Description

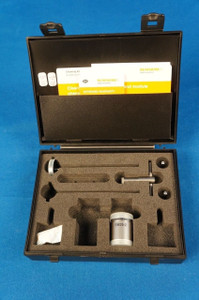

Renishaw SM25-2 Scanning Module Showroom Demonstration Model With 6 Month Warranty.

Renishaw current retail price for this kit is $4643.00





About SP25M

The SP25M comprises two sensors in a single housing. Users can switch between a choice of four scanning modules (which can carry M3 styli with lengths from 20 mm to 400 mm) and an adaptor module that is compatible with Renishaw's TP20 range of probe modules. This capability enables scanning and touch-trigger probing in a single probe system.

The SP25M's compact size and autojoint mounting makes it compatible with the PH10M/MQ and PH6M probe heads. It can also be mounted on a multiwired extension bar. Together, these combinations permit excellent reach and access to part features.

For details of the technology in SP25M, refer to the SP25M Technical Paper.

 SP25M + modules

Features and benefits

  • World's smallest scanning probe at only 25 mm in diameter
  • Excellent metrology - isolated optical sensing and 3rd order polynomial compensation
  • Four modules provide optimal performance across a range of stylus lengths (up to 400 mm)
  • Two sensors in one - scanning and touch-trigger
  • Crash protection and simple stylus changing
  • Fast and simple probe calibration cycle
  • Ideal for profile and form measurement
  • Suitable for use on motorised indexing heads for greater flexibility and shorter scanning cycle times
  • Simple and robust design for greater reliability - no motors or locking mechanisms



SP25M specification

Mounting Renishaw autojoint : PH10M, PH10MQ or PH6M
May be mounted on autojoint extension bars
Suitable interface Either: UCC controller
Or: AC3 PC interface card for machines not fitted with the UCC controller
Probe attributes

3-axis analogue measurement (X, Y, Z)
Pivoting motion in XY plane with translation in Z direction

For SM25-5: Plane translation in all 3 axes XYZ

Measurement range

±0.5 mm (±0.02 in) in X, Y and Z

For SM25-5: ±0.3 mm

Overtravel range

±2.0 mm (±0.08 in) in X and Y
1.7 mm (0.07 in) in +Z
1.2 mm (0.07 in) in –Z

For SM25-5:
±X, ±Y = 0.95 mm (0.037 in)
+Z = 1.0 mm (0.039 in)
-Z = 1.1 mm (0.043 in)

Crash protection: X, Y, –Z - break-off of either module or stylus holder
+Z - integral bump-stop design
Resolution < 0.1 µm (0.000004 in) with either UCC2 daughtercard or AC3 interface card
Spring rate 0.2 N/mm to 0.6 N/mm nominal dependent on stylus length
Damping

Single viscous fluid damper

For SM25-5: Two viscous fluid dampers

Power supply +12 V (±5%), –12 V (+10% / –8%), +5 V (+10% / –13%) DC at probe
Outputs (X,Y,Z)

Non-linear and non-orthogonal analogue outputs - rate, gain and resolution are not fixed
SP25M requires that a non-linear, third-order polynomial calibration method is used.

Stylus range M3





SP25M modules and stylus holders

SP25M family

A range of module kits allows SP25M users to build up their probing capability over time.

Each SM25-# scanning module is optimised in terms of gain and spring rate to suit the range of stylus lengths specified. For every module, there is a matching SH25-# stylus holder.

The SH25-3 and SH25-4 stylus holders are constructed with a fixed carbon fibre stem to which an M3 stylus is mounted, selected to provide the correct working length.

Whilst the SP25M can carry cranked (non straight) styli configurations when using SM25-1/2/3/4 scanning modules and the original standard stylus holders (SH25-1/2/3/4) but for optimum metrology where larger offsets are required Renishaw recommends the new SH25-2A/3A/4A range of stylus holder, specifically designed to meet the challenges posed by such stylus arrangements.



SM25-1 scanning moduleSM25-2SM25-3SM25-4TM25-20 TTP adaptor module
 SM25-1  SM25-2  SM25-3  SM25-4  TM25-20 TTP

Use with SH25-1.

Stylus length: 20 - 50 mm

Use with SH25-2.

Stylus length: 50 - 105 mm

Use with SH25-3.

Stylus length: 120 - 200 mm

Use with SH25-4.

Stylus length: 220 - 400 mm

Use with TP20 touch-trigger modules and extensions.



This is by the far the best price you will find on a demonstration model in box Renishaw SM25-2 scanning module with 6 month warranty.

Why pay retail prices when you can purchase with warranty from Metrology Parts.

Purchase with confidence from a Paypal verified retailer with Warranty.

If what you order is not what you receive you will be refunded the full purchase price for this sale.

Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw needs.

If you have any questions feel free to contact us. With 32 plus years of experience with Renishaw products we can help with all of your application needs as well as your after sales support.
