Model: SM25-2 SCANNING MODULE

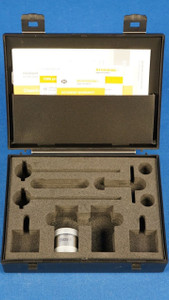

New Renishaw SM25-2 Scanning Module in original foam lined box with 1 Year Warranty.
Renishaw list price on what is included in this sale is $4643.00
The SP25M comprises two sensors in a single housing. Users can switch between a choice of four scanning modules (which can carry M3 styli with lengths from 20 mm to 400 mm) and an adaptor module that is compatible with Renishaw's TP20 range of probe modules. This capability enables scanning and touch-trigger probing in a single probe system.
The SP25M's compact size and autojoint mounting makes it compatible with the PH10M/MQ and PH6M probe heads. It can also be mounted on a multiwired extension bar. Together, these combinations permit excellent reach and access to part features.
For details of the technology in SP25M, refer to the SP25M Technical Paper.
|Mounting||Renishaw autojoint : PH10M, PH10MQ or PH6M
May be mounted on autojoint extension bars
|Suitable interface||Either: UCC controller
Or: AC3 PC interface card for machines not fitted with the UCC controller
3-axis analogue measurement (X, Y, Z)
For SM25-5: Plane translation in all 3 axes XYZ
±0.5 mm (±0.02 in) in X, Y and Z
For SM25-5: ±0.3 mm
±2.0 mm (±0.08 in) in X and Y
|Crash protection:||X, Y, –Z - break-off of either module or stylus holder
+Z - integral bump-stop design
|Resolution||< 0.1 µm (0.000004 in) with either UCC2 daughtercard or AC3 interface card|
|Spring rate||0.2 N/mm to 0.6 N/mm nominal dependent on stylus length|
Single viscous fluid damper
For SM25-5: Two viscous fluid dampers
|Power supply||+12 V (±5%), –12 V (+10% / –8%), +5 V (+10% / –13%) DC at probe|
Non-linear and non-orthogonal analogue outputs - rate, gain and resolution are not fixed
A range of module kits allows SP25M users to build up their probing capability over time.
Each SM25-# scanning module is optimised in terms of gain and spring rate to suit the range of stylus lengths specified. For every module, there is a matching SH25-# stylus holder.
The SH25-3 and SH25-4 stylus holders are constructed with a fixed carbon fibre stem to which an M3 stylus is mounted, selected to provide the correct working length.
Whilst the SP25M can carry cranked (non straight) styli configurations when using SM25-1/2/3/4 scanning modules and the original standard stylus holders (SH25-1/2/3/4) but for optimum metrology where larger offsets are required Renishaw recommends the new SH25-2A/3A/4A range of stylus holder, specifically designed to meet the challenges posed by such stylus arrangements.
|SM25-1 scanning module||SM25-2||SM25-3||SM25-4||TM25-20 TTP adaptor module|
Use with SH25-1.
Stylus length: 20 - 50 mm
Use with SH25-2.
Stylus length: 50 - 105 mm
Use with SH25-3.
Stylus length: 120 - 200 mm
Use with SH25-4.
Stylus length: 220 - 400 mm
|Use with TP20 touch-trigger modules and extensions.|
This is by the far the best price you will find on a Renishaw SM25-2 Scanning Module with 1 Year Warranty.
Why pay retail prices when you can purchase with warranty from Metrology Parts.
Purchase with confidence from a Paypal verified retailer.
If what you order is not what you receive you will be refunded the full purchase price for this sale.
Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw needs.
If you have any questions feel free to contact us. With 34 plus years of experience with Renishaw products we can help with all of your application needs as well as your after sales support.
