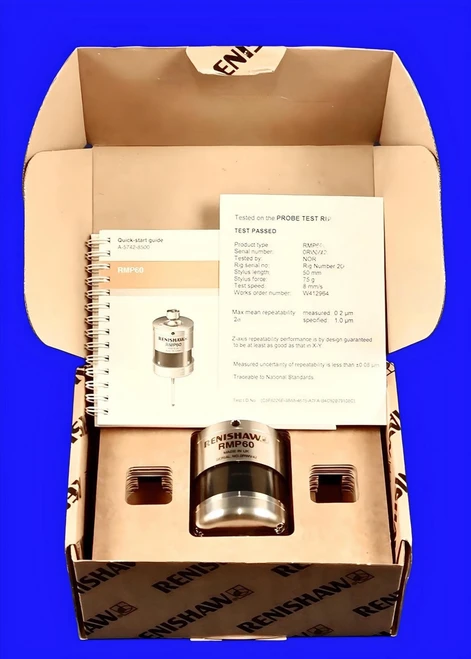

Renishaw RMP60Q Machine Tool Probe New With 1 Year Warranty A-5742-0001

Product Description

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging

Country of Manufacture:   UNITED KINGDOM

Brand:   RENISHAW

Model:   RMP60

MPN:   A-5742-0001

Item Description

Renishaw RMP60 Radio Transmission Probe Kit New with 1 Year Warranty.

About RMP60

RMP60 is part of a new generation of radio transmission part probing system, ideally suited to large machining centres or where line-of-sight between probe and receiver is difficult to achieve. RMP60 features an integrated probe module delivering exceptional robustness and generous overtravel. RMP60 complies with FCC regulations and operates in the 2.4 GHz band. It delivers interference-free transmission through the use of FHSS (frequency hopping spread spectrum). This allows many systems to operate in the same machine shop without risk of cross-talk.

Features

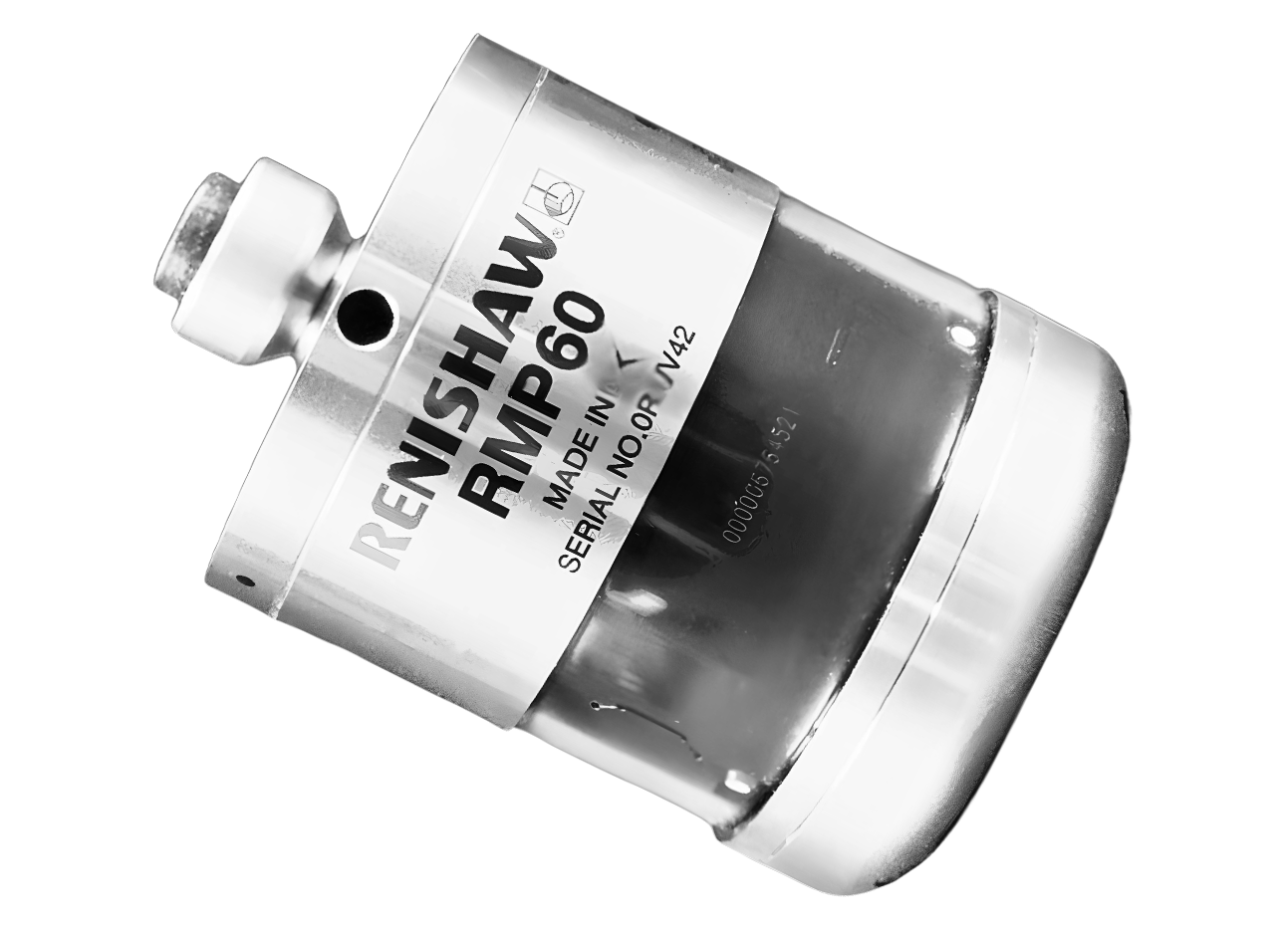

The RMP60 is a compact 3D touch-trigger probe
(±X, ±Y, +Z sense directions) with radio transmission, used for workpiece set-up and inspection on small to large CNC machining centres and vertical turning lathes. The RMP60 transmits data omnidirectionally to a range of up to 15 m (49.2 ft).

Ease of installation

• A standard battery life of 140 hours continuous use, or the equivalent of approximately 100 days at 5 % usage is achievable. For applications requiring greater battery life, certain high capacity lithium thionyl chloride batteries can be used.
• Repeatability, 1.0 μm (40 μin) is certified at 480 mm/min (1.57 ft/min) with 50 mm stylus.
• Probe switch on is user configurable between M code, spin or shank.
• Probe switch off is user configurable between M code, time, spin or shank switch dependant on turn on method.
• Sealed to IPX8 for the machine tool environment, IPX5 with battery cassette removed.

• 2.4 GHz radio transmission, enables a single system for worldwide use.

• Interference-free channel hopping transmission • No channel selection required.

RMP60 Inspection Probe

• Partner RMP60 and RMI systems allow interference-free multiple probe installations.

• The RMP60 is suitable for use with Renishaw single and double touch probing cycles.

• User adjustable trigger force for long/cranked styli.

• A weak link is included in each kit to protect the probe in the event of excessive stylus overtravel, when using steel styli.

RMI Interface

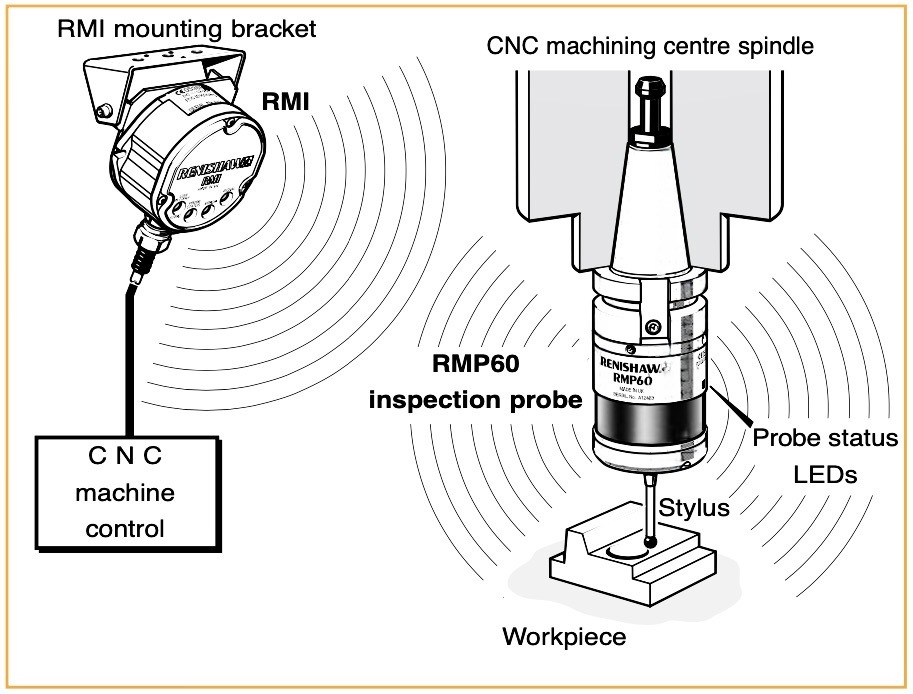

The RMI integrated interface/receiver is used to communicate between the RMP60 probe and the machine control. The probe may be activated by RF signal initiated by an M-code, spinning or shank switch.

This is a great price for a Renishaw RMP60 Machine Tool Probe New with 1 Year Warranty. Purchase

with confidence from a Paypal verified retailer. If what you order is not what you receive you will be

refunded the full purchase price for this sale. Metrology Parts would like the opportunity to earn your

business for this sale and all of your future Renishaw product needs. If you have any questions feel free

to contact us. With 36 plus years of experience with Renishaw products we can help with all of your

application needs as well as your after sales support.
