* * * RLP40 QE * * *
* * * DOES NOT work with a RMI A-4113-0050 Legacy Receiver * * *
Condition:
New – Display Model: An item in excellent, new condition with no functional defects. The item is missing original packaging and was used for demo purposes. The item includes accessories found with the original product and a 6 Month Warranty.
Country Of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: RLP40 (QE) 25MM PARALLEL SHANK
MPN: A-6717-0001 A-5625-1003
Item Description

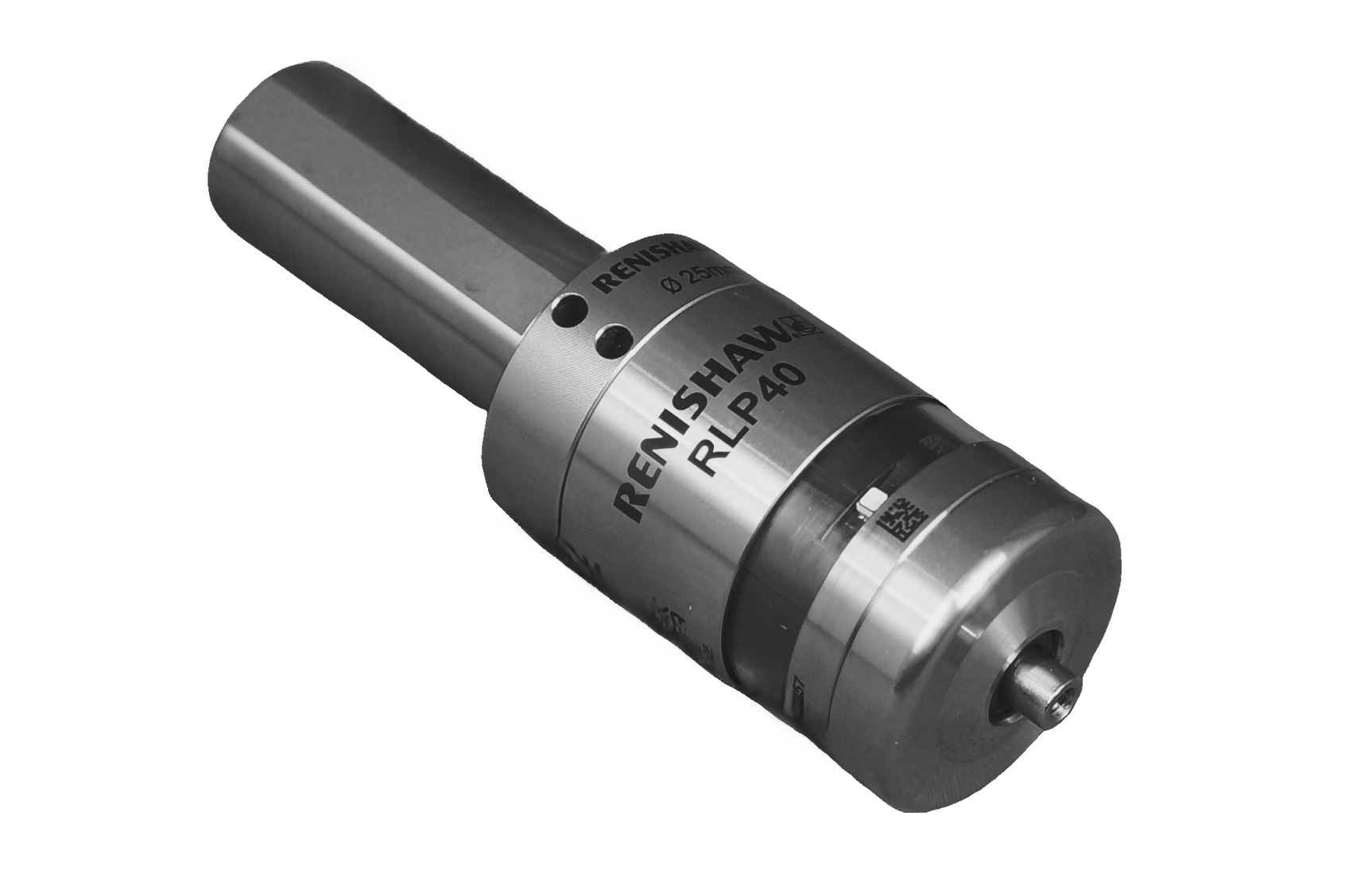

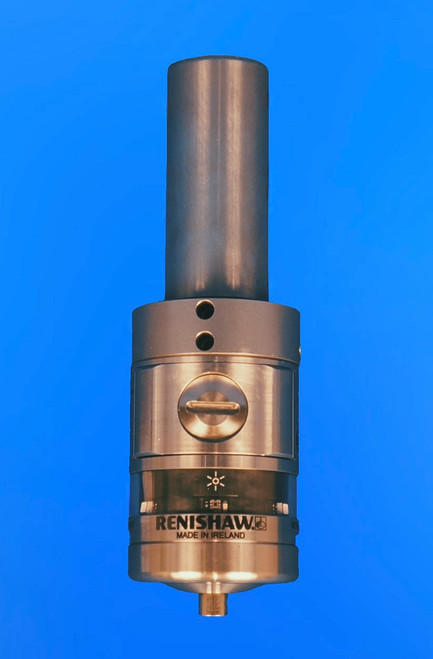

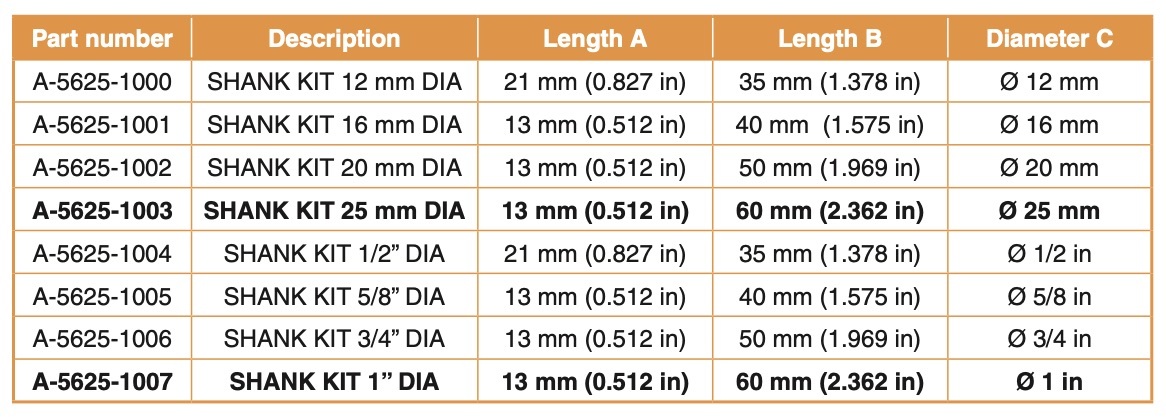

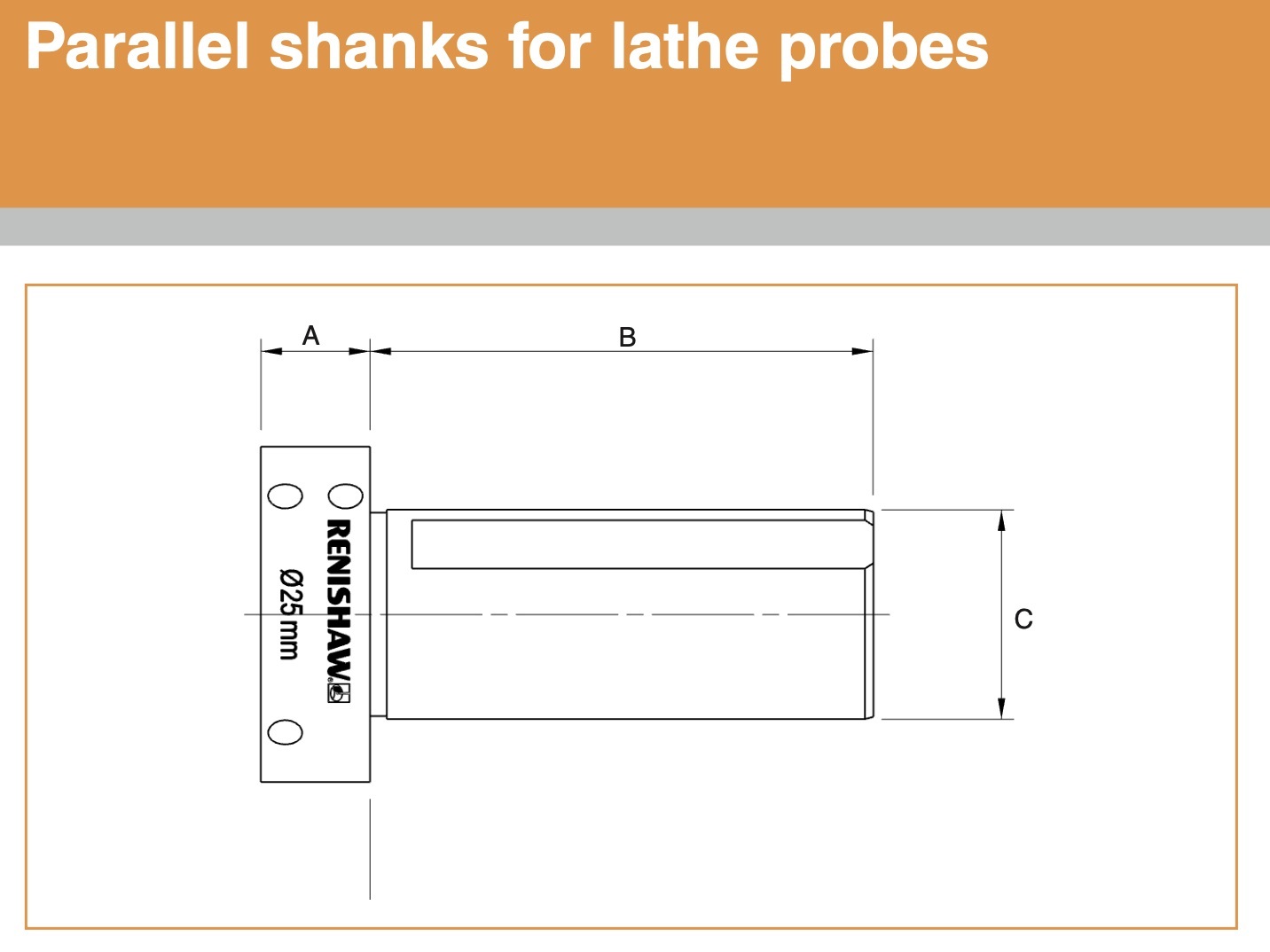

Renishaw RLP40 (QE) Machine Tool Turning Center Probe & 25 mm Parallel Shank Display Model with 6 Month Warranty.
RLP40 (QE) Introduction
The RLP40 enables automated workpiece inspection and job set-up on multi-tasking machines and lathes. It is ideally suited to multi-tasking machines and lathes or where line-of-sight between probe and receiver is difficult to achieve or where Z travel is limited. At only Ø40 mm, this compact probe sets industry standards for functionality, reliability and robustness in the harshest of machine tool environments. The RLP40 complies with FCC regulations and operates in the 2.4 GHz band. It delivers interference-free transmission through the use of hybrid FHSS (frequency-hopping spread spectrum) technology, which allows multiple systems to operate in the same machine shop without risk of cross-interference. All RLP40 settings are configured using either Opti-LogicTM or Trigger LogicTM. These techniques enable the user to review and subsequently change probe settings.

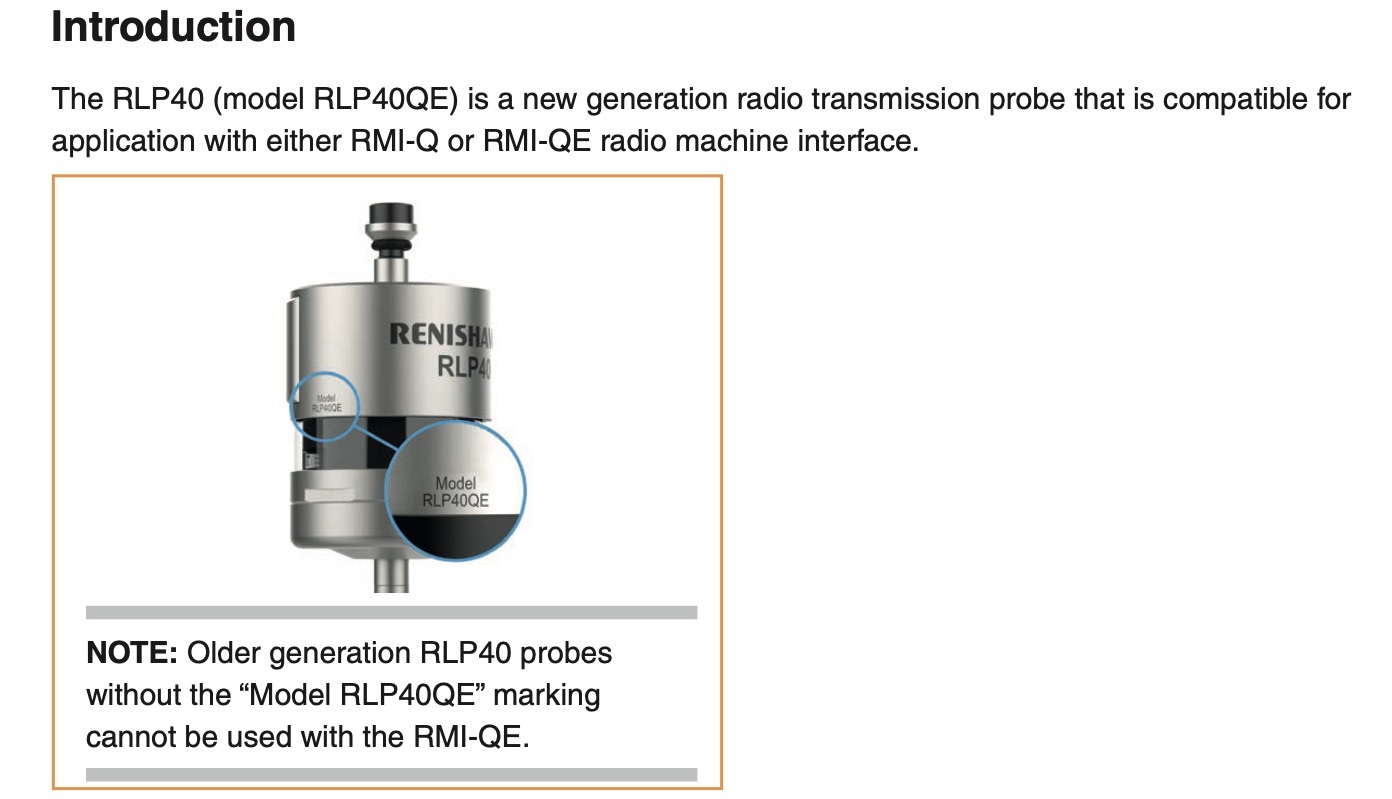

The small-bodied RLP40 QE is designed to be turret mounted for part setting and inspection on turning centres. Ultra-compact and specifically designed to be additionally robust with a toughened glass window for the harsh environment in lathes and grinding machines. The RLP40 QE is compatible with RMI-QE and RMI-Q interfaces. It is not compatible with the RMI interface. Probe switch-on / switch-off methods are user configurable. The factory-default setting of radio on / radio off can be modified to radio on / timer off (timeout), spin on / spin off, or spin on / timer off (timeout) if required.
Technical Table
| Transmission type | Radio |
|---|
Key Features & Benefits:
• Proven kinematic design • Secure frequency hopping spread spectrum (FHSS)
• Globally recognised 2.4 GHz waveband compliant with radio regulations in all major markets
• Ultra-compact design • Increased environmental protection • 1.00 µm 2σ repeatability
• Provides an increase of up to 400% in battery life compared with previous generation probes
RLP40 (QE) Dimensions
Probe Modes
The RLP40 probe can be in one of three modes: Standby Mode – Probe is waiting for a switch-on signal. NOTE: The RLP40 will enter “hibernation mode” should the system interface be powered off or out of range for a period of 30 seconds (“hibernation mode” is only applicable to “radio on mode” when used with an RMI-Q). Operational Mode – When activated by one of the switch-on methods, the probe is switched on and ready for use. Configuration Mode – Ready to change the probe settings using Opti-Logic or Trigger Logic.
RLP40 (QE) Machine Tool Specification
* Performance specification is tested at a standard test velocity of 480 mm/min (18.9 in/min) with a 50 mm stylus. Significantly higher velocity is possible depending on application requirements. Trigger force, which is critical in some applications, is the force exerted on the component by the stylus when the probe triggers. The maximum force applied will occur after the trigger point (overtravel). The force value depends on related variables, including measuring speed, machine deceleration and system latency. These are the factory settings; manual adjustment is not possible on the RLP40H.
System Interface
The RMI-Q or RMI-QE is an integrated interface/receiver used to communicate between the RLP40 probe and the machine controller. For more details, refer to the RMI-Q radio machine interface installation guide (Renishaw part no. H-5687-8504) or the RMI-QE radio machine interface installation guide (Renishaw part no. H-6551-8520). It is necessary that the RLP40 is partnered to either an RMI-Q or RMI-QE. Prior to partnering for the first time, the RLP40 is pre-set to operate in RMI-QE mode. The LED check will display a double flashes of red, green, blue. NOTE: The RLP40 (model RLP40QE) is not compatible with the older RMI integrated interface/ receiver.

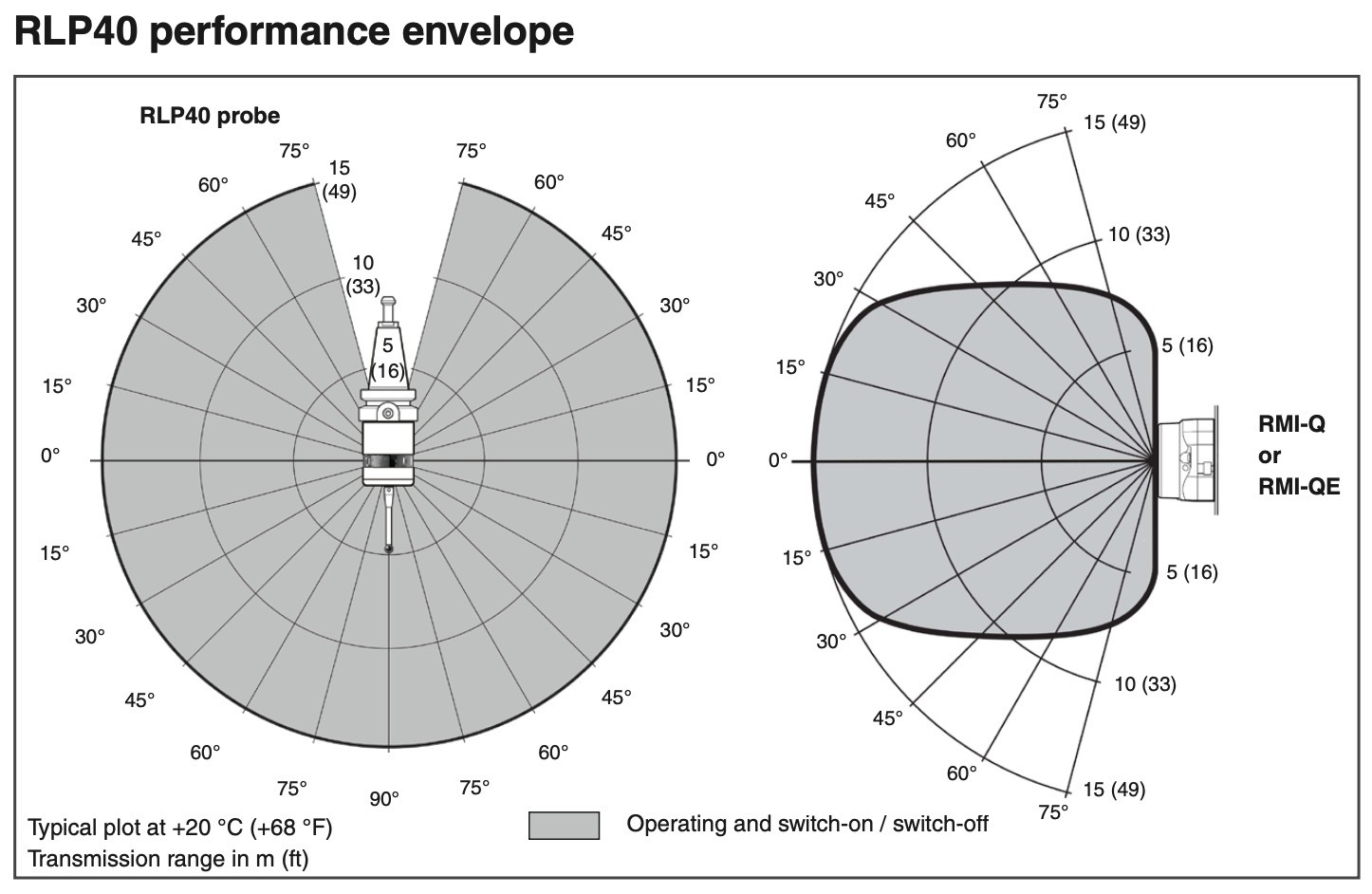

RLP40 (QE) Performance Envelope
The RLP40 and RMI-Q or RMI-QE must be within each other’s performance envelope, as shown below. The performance envelope shows line-of-sight performance, however, this is not necessary for the RLP40 radio transmission as it will operate with any reflected radio path provided that the reflected path length does not exceed the 15 m (49.2 ft) operating range.
This is a great price for a Renishaw RLP40 (QE) Machine Tool Turning Center Probe & 25 mm
Parallel Shank Display Model with 6 Month Warranty. Purchase with confidence from a Paypal
verified retailer. If what you order is not what you receive you will be refunded the full
purchase price for this sale. Metrology Parts would like the opportunity to earn your business
for this sale and all of your future Renishaw product needs. If you have any questions feel free
to contact us. With 36 plus years of experience with Renishaw products we can help with all of
your application needs as well as your after sales support.
