THIS PH10T PLUS IS A 2015 DISPLAY MODEL
Condition:
New – Open box: An item in excellent, new condition with no functional defects. The item comes with original packaging and was only used for demo purposes. The item includes accessories found with the original product and a 6 Month Warranty.
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: PH10T PLUS
MPN: A-5863-5000
Renishaw PH10T Plus Motorized CMM probe head 2015 Display Model with 6 Month Warranty.
If your application requires custom or stock cabling please contact us prior to your order.
The range comprises three PH10 PLUS models, each of which can carry a range of probes and extensions and can be orientated in 720 repeatable positions, giving access to the most difficult-to-reach workpiece features.
All three variants of the new PH10 PLUS heads are now supplied with a revised repeatability specification, down from 0.5 µm (2?) to just 0.4 µm (2?) (specified at a distance of 62 mm), giving users improved positioning at the stylus tip. The new specification heads are physically differentiated by a new ‘aqua blast’ finish which gives a modern, matt black appearance.
The PH10T PLUS is similar to the PH10M PLUS, except that it features an M8 thread probe mount in place of the auto joint.
All M8 threaded probes, such as TP20 and TP200, and extension bars fit directly onto the head. The PH10T PLUS is fully compatible with all of Renishaw's stylus and module change systems.

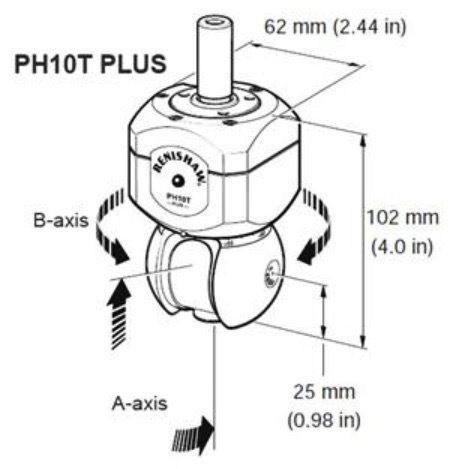

| Length | 103 mm |
| Width | 62 mm |
| Weight | 645 g |
| Probe mounting | M8 thread (2 wire) |
| Head mounting | Shank to suit CMM |
| Suitable controller | PHC10-3 PLUS |
| Repeatability of position | 0.4 µm (0.00002 in) specified at a distance of 48 mm (equivalent to a TP2 and PS1R stylus) |
| Total no. of positions | 720 |
| Max recommended drive torque | 0.45 Nm |
| Maximum extension bar |
| 300 mm (11.8 in) using PEL4 extension |
