Renishaw PH10T PLUS CMM Probe Head New Stock 2019 Model with 1 Year Warranty A-5863-5000

MSRP: $22,174.00
$8,925.00
(You save $13,249.00)
(No reviews yet) Write a Review
Condition:
New
Weight:
5.00 LBS
Shipping:
Calculated at Checkout

Product Description



THIS PH10T PLUS IS A 2019 MODEL

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging.



Country of Manufacture:   UNITED KINGDOM

Brand:   RENISHAW

Model:   PH10T PLUS

MPN:   A-5863-5000



Item Description

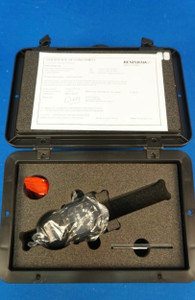

Renishaw PH10T Plus Motorized CMM Probe Head New Stock in Box 2019 Model with 1 Year Warranty.




If your application requires custom or stock cabling please contact us prior to your order.

PH10 PLUS RANGE

The range comprises three PH10 PLUS models, each of which can carry a range of probes and extensions and can be orientated in 720 repeatable positions, giving access to the most difficult-to-reach workpiece features.

All three variants of the new PH10 PLUS heads are now supplied with a revised repeatability specification, down from 0.5 µm (2?) to just 0.4 µm (2?) (specified at a distance of 62 mm), giving users improved positioning at the stylus tip. The new specification heads are physically differentiated by a new ‘aqua blast’ finish which gives a modern, matt black appearance.

PH10T PLUS

The PH10T PLUS is similar to the PH10M PLUS, except that it features an M8 thread probe mount in place of the auto joint.

All M8 threaded probes, such as TP20 and TP200, and extension bars fit directly onto the head. The PH10T PLUS is fully compatible with all of Renishaw's stylus and module change systems.

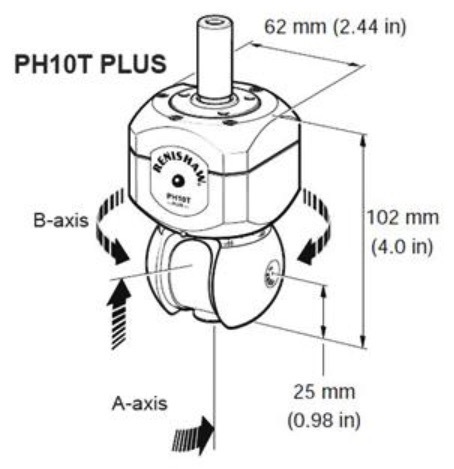

PH10T PLUS Specification

Length 103 mm
Width 62 mm
Weight 645 g
Probe mounting M8 thread (2 wire)
Head mounting Shank to suit CMM
Suitable controller  PHC10-3 PLUS
Repeatability of position 0.4 µm (0.00002 in) specified at a distance of 48 mm (equivalent to a TP2 and PS1R stylus)
Total no. of positions 720
Max recommended drive torque 0.45 Nm
Maximum extension bar
300 mm (11.8 in) using PEL4 extension



This by far is the best price for a Renishaw PH10T PLUS New Stock in Box 2019 Model with 1 Year

Warranty you will find anywhere.Why pay retail prices when you can purchase new from Metrology

Parts. Purchase with confidence from a verified Paypal retailer.If what you order is not what you receive

you will get a full refund for this sale. Metrology Parts would like the opportunity to earn your

business for this sale and all of your future Renishaw needs. If you have any questions feel free to

contact us. With 36 plus years of experience with Renishaw products we can help with all your

application needs as well as your after sales support.
