New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is
Country of Manufacture: UNITED KINGDOM
Model: PH10MQ PLUS

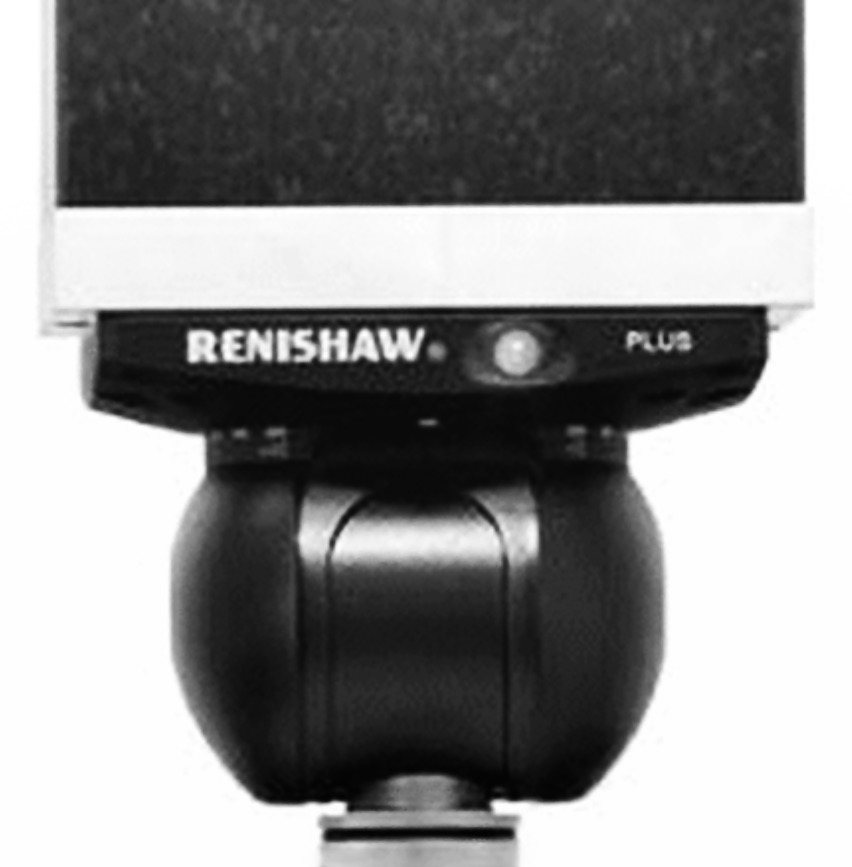

Renishaw PH10MQ PLUS Motorized Probe Head 2017 Model New in Box with 1 Year Warranty.
Current list price for this probe is $22,920.00
If your application requires custom or stock cabling please contact us prior to ordering.
The range comprises three PH10 models, each of which can carry a range of probes and extensions and can be orientated in 720 repeatable positions, giving access to the most difficult-to-reach workpiece features.
All three variants of the new PH10 PLUS heads are now supplied with a revised repeatability specification, down from 0.5 µm (2?) to just 0.4 µm (2?) (specified at a distance of 62 mm), giving users improved positioning at the stylus tip. The new specification heads are physically differentiated by a new ‘aqua blast’ finish which gives a modern, matt black appearance.

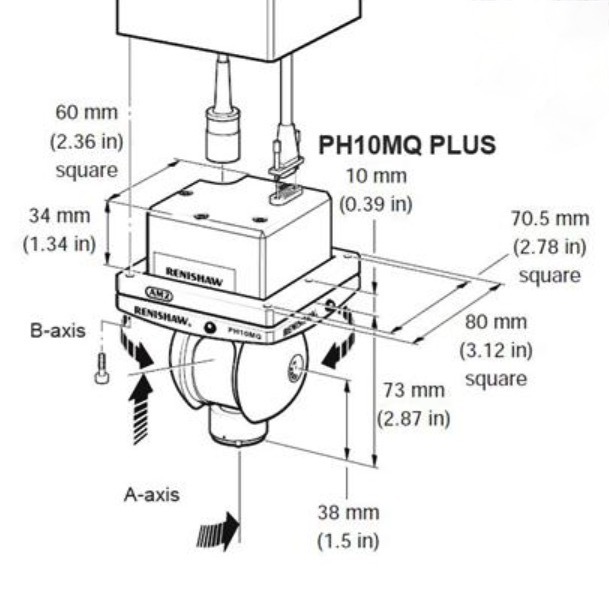

The PH10MQ PLUS is a variant of the PH10M PLUS that allows the motorized head to be attached directly to the quill with the B axis of the head inside the quill itself. This option provides a neater and shorter probe mount, with only the A axis protruding from the quill.
|Probe mounting||Autojoint (multiwire)|
|Head mounting||Direct to quill|
|Suitable controller||PHC10-3 PLUS|
|Repeatability of position||0.4 Âµm (0.00002 in) specified at a distance of 62 mm|
|Total no. of positions||720|
|Max recommended drive torque||0.45 Nm|
|Maximum extension bar||300 mm (11.8 in) using PAA3 extension|
This by far is the best price for a brand new 2017 Model PH10MQ PLUS you will find anywhere.
Why pay retail prices when you can purchase new with warranty from Metrology Parts.
Purchase with confidence from a verified Paypal retailer.
If what you order is not what you receive you will get a full refund for this sale.
Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw needs.
If you have any questions feel free to contact us. With 34 plus years of experience with Renishaw products we can help with all your application needs as well as after sales support.
