Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: PH10MQ PLUS
MPN: A-5863-6000
Item Description

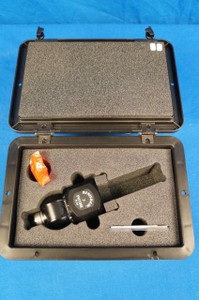

Renishaw PH10MQ PLUS Motorized Probe Head Fully Tested with 90 Day Warranty.
About PH10
The range comprises three PH10 models, each of which can carry a range of probes and extensions and can be orientated in 720 repeatable positions, giving access to the most difficult-to-reach workpiece features.
All three variants of the new PH10 heads are now supplied with a revised repeatability specification, down from 0.5 µm (2?) to just 0.4 µm (2?) (specified at a distance of 62 mm), giving users improved positioning at the stylus tip. The new specification heads are physically differentiated by a new ‘aqua blast’ finish which gives a modern, matt black appearance.
The PH10MQ is a variant of the PH10M that allows the motorised head to be attached directly to the quill with the B axis of the head inside the quill itself. This option provides a neater and shorter probe mount, with only the A axis protruding from the quill.
| Length | 73 mm |
| Width | 80 mm |
| Weight | 730 g |
| Probe mounting | Autojoint (multiwire) |
| Head mounting | Direct to quill |
| Suitable controller | PHC10-3 PLUS |
| Repeatability of position | 0.4 µm (0.00002 in) specified at a distance of 62 mm |
| Total no. of positions | 720 |
| Max recommended drive torque | 0.45 Nm |
| Maximum extension bar | 300 mm (11.8 in) using PAA3 extension |
This by far is the best price for a fully tested Renishaw PH10MQ PLUS with 90 Day Warranty you will
find anywhere. Why pay retail prices when you can purchase new with warranty from Metrology Parts.
Purchase with confidence from a verified Paypal retailer. If what you order is not what you receive you
will get a full refund for this sale. Metrology Parts would like the opportunity to earn your business for
this sale and all of your future Renishaw needs. If you have any questions feel free to contact us. With
36 plus years of experience with Renishaw products we can help with all your application needs as well
as after sales support.
