We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging.
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: OSI-D
MPN: A-5492-3020
Item Description

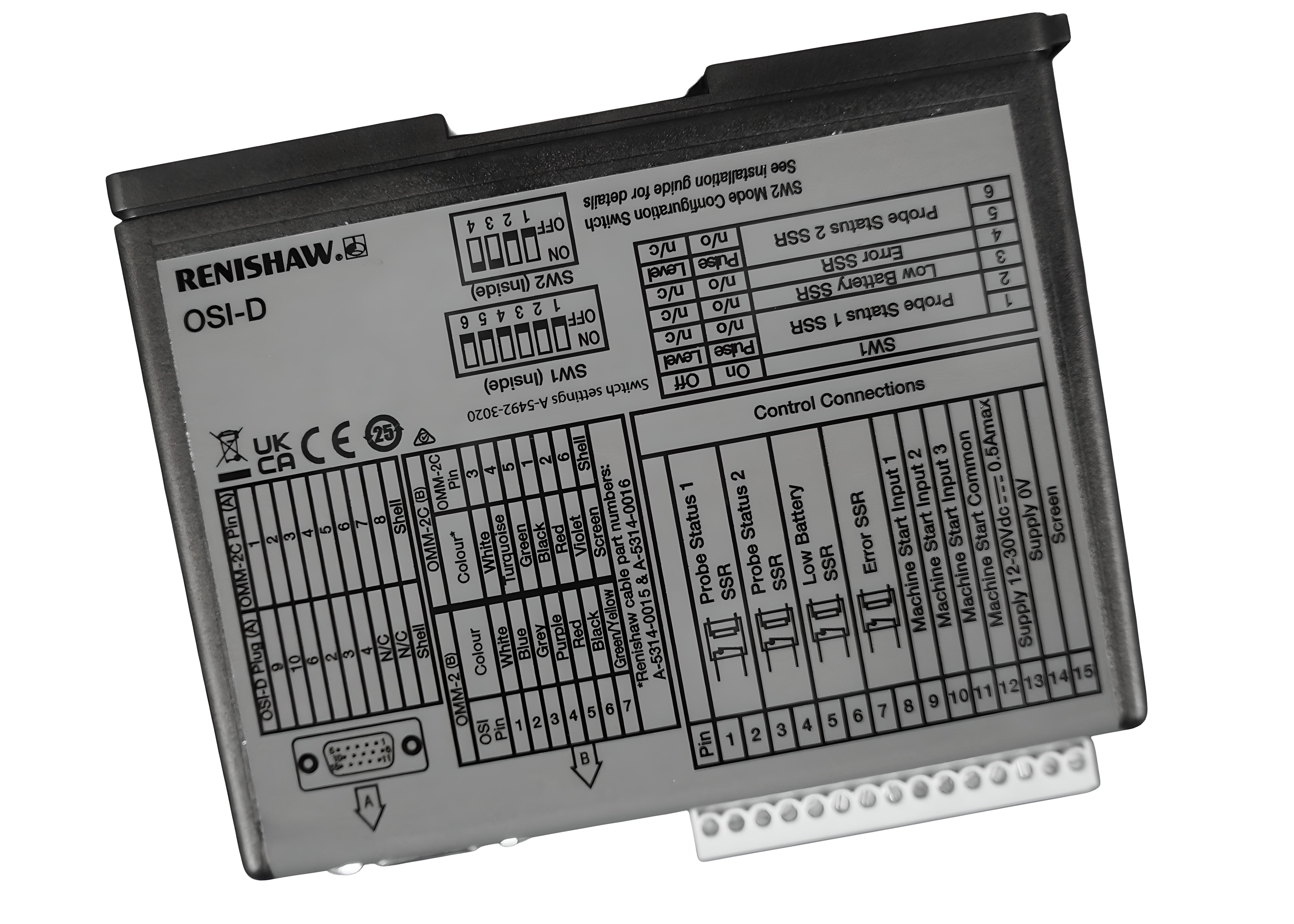

Renishaw OSI-D Kit (Multiple Probe Mode) New with 1 Year Warranty.

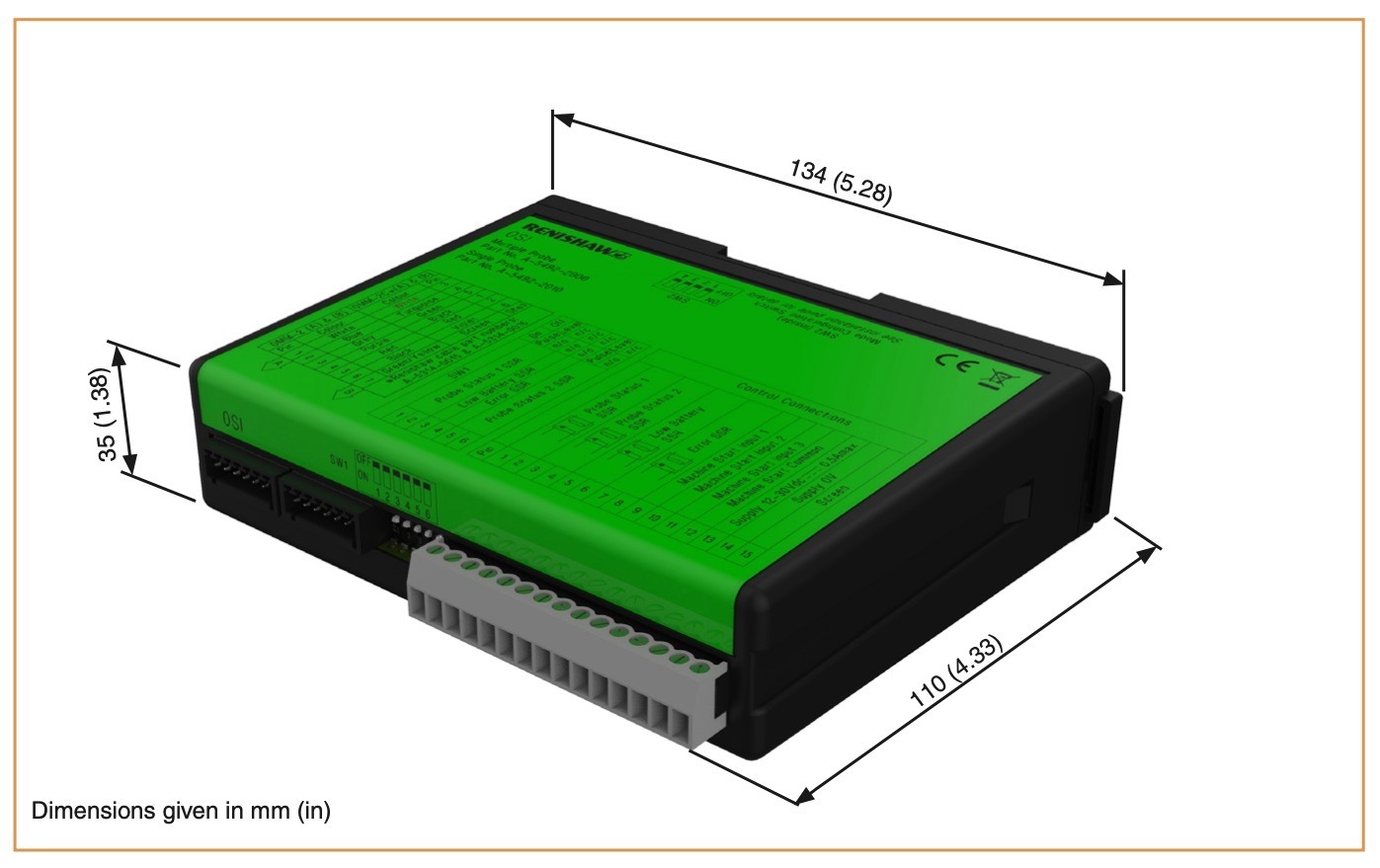

OSI-D Dimensions & Specification
OSI-D Components

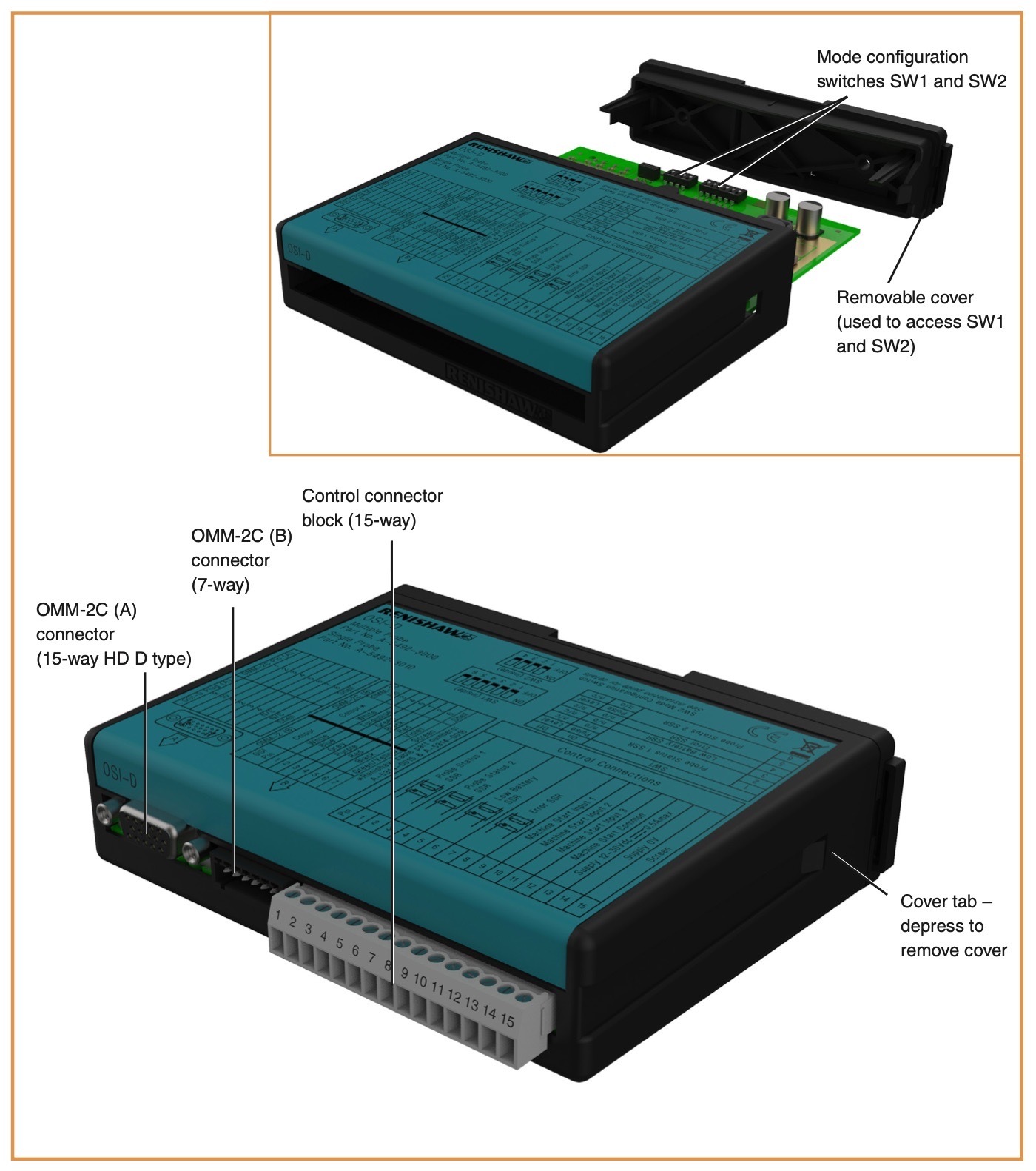

The following components are housed within the front face of the OSI-D (as shown in the figure below):
OMM-2C (A) connector (15-way HD D type);
OMM-2C (B) connector (7-way);
Control connector block (15-way);
The following components are housed within the body of the OSI-D:
SSR configuration switch SW1.
Mode configuration switch SW2.
Access to switch SW1 and switch SW2 is required during installation only.
|
PIN |
SW1 | ON | OFF |
| 1 | Probe status 1 SSR | Pulse | Level |
| 2 | Probe status 1 SSR | Normally open | Normally closed |
| 3 | Low battery SSR | Normally open | Normally closed |
| 4 | Error SSR | Normally open | Normally closed |
| 5 | Probe status 2 SSR | Pulse | Level |
| 6 | Probe status 2 SSR | Normally open | Normally closed |
This by far is the best price you will find for a Renishaw OSI-D Kit (Multiple Probe Mode) New with 1
Year Warranty. Purchase with confidence from a Paypal verified retailer. If what you order is not what
you receive you will be refunded the full purchase price for this sale. Metrology Parts would like the
opportunity to earn your business for this sale and all of your future Renishaw product needs. If you
have any questions feel free to contact us. With 36 plus years of experience with Renishaw products we
can help with all of your application needs as well as your after sales support.
