We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: PH20
MPN: A-5669-0001
Item Description

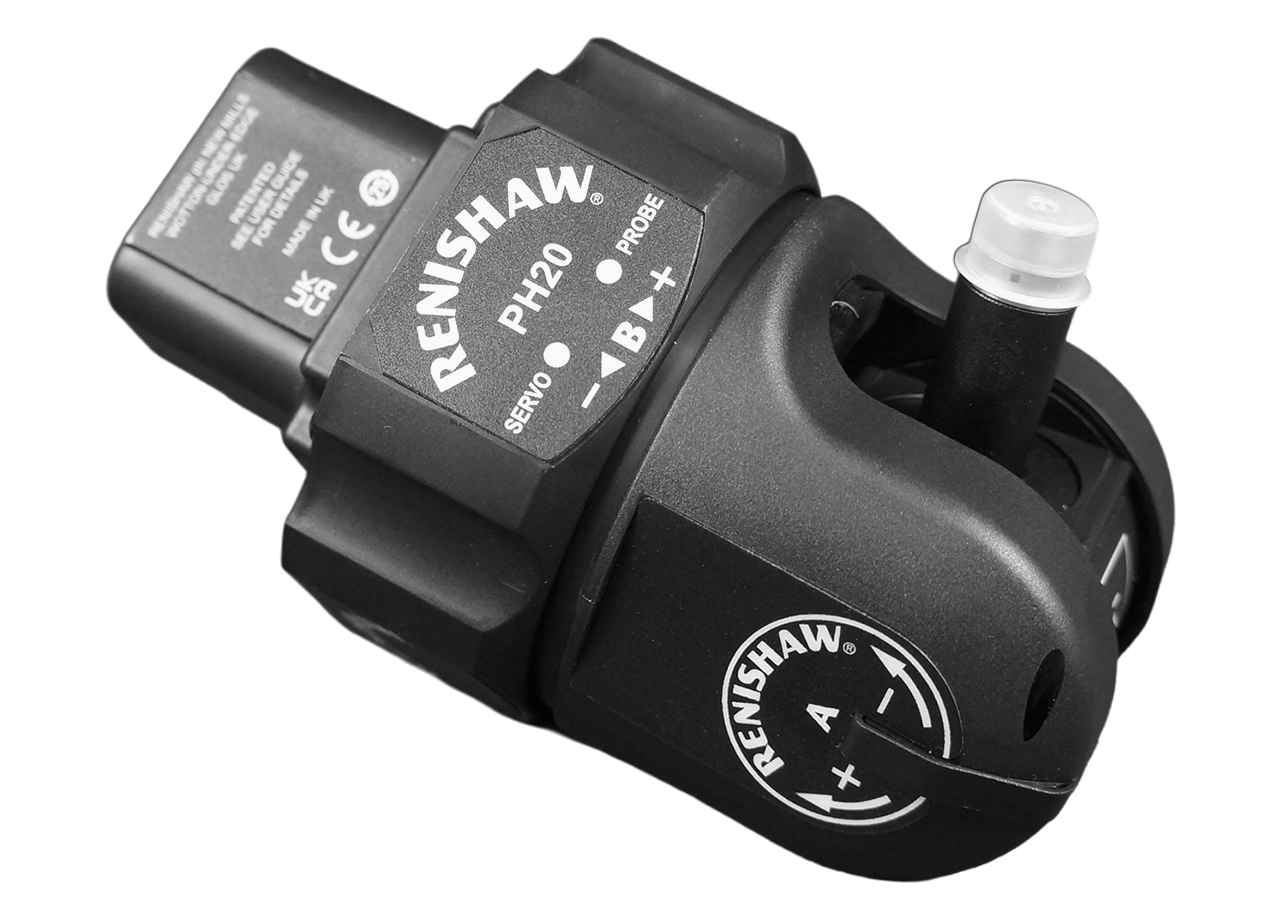

Renishaw PH20 5 Axis Motorized CMM Probe Head & TP20 SF Module with 1 Year Warranty.
PH20
5-axis touch-trigger measurement system with integral TP20 probe and automatic module
changing via TCR20 rack
Compact design - suitable for a wide range of CMMs using shank or quill mounting
Renishaw CMM controller - I++DME communication, wide selection of metrology software
Index head compatibility - no requirement to modify existing programs in the majority of cases
Integral TP20 probe - allows re-use of existing equipment
Mechanical bearings - no air supply required

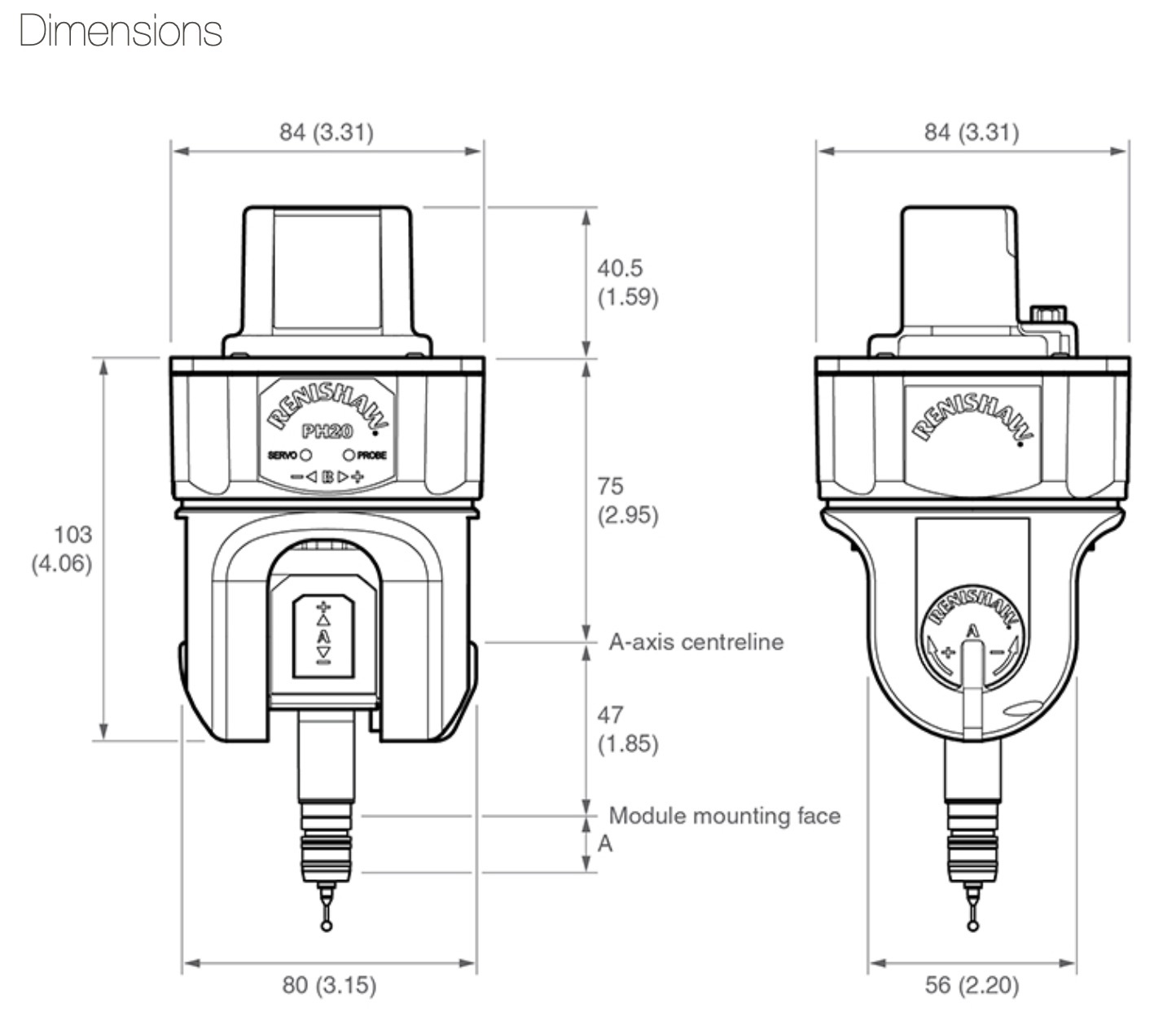

| Dimension 'A' | |
| Standard force module | 21 mm (0.83 in) |
| Medium force module | 21 mm (0.83 in) |
| Low force module | 21 mm (0.83 in) |
| 6-way module | 25 mm (0.98 in) |
| EM1 module | 71 mm (2.80 in) |
| EM2 module | 96 mm (3.78 in) |
Hardware Integration
The PH20 system is only available with the UCC T5 controller
SPA3 is a servo power amplifier used to power the CMM
MCUlite-2 / MCU5-2 / MCU W-2 are the multi-function hand control units available for use with
the PH20 system
The PH20 head has two rotary axes (A and B) and is normally mounted on the CMM quill to
create a 5-axis measuring system.
The PH20 head's B-axis is mounted on the CMM quill and can rotate continuously in both
directions.
The A-axis, which is orthogonal to the B-axis, has ±115° of travel.
ISO 10360-5 (2001) typical performance using a std force module with 12 4 mm stylus on a CMM with ISO 10360-2 (2002) specification of 0.48 + L/1000 (specified with a TP7):
| CMM touch | Head touch | |
| Size | 0.0006 mm (0.00002 in) | 0.0002 mm (0.00001 in) |
| Form | 0.0026 mm (0.00010 in) | 0.0024 mm (0.00009 in) |
| Location | 0.0013 mm (0.00005 in) | 0.0009 mm (0.00003 in) |
| Weight (excluding module and cables) | 810 g (28.6 oz) |
| Operating temperature range | 15 °C to 35 °C (59 °F to 95 °F) |
| Storage temperature range | -25 °C to 70 °C (-13 °F to 158 °F) |
| Maximum movement speed | 3 revs/s (1281 mm/s with standard module and 10 mm stylus) |
| Maximum head touch speed | 50 mm/s |
| A-axis rotation angle | -115° to 115° |
| B-axis rotation angle | Infinite positioning |
| Angular resolution | 0.4 Radians (0.04 m / 100 mm) |
| Bearings | Mechanical |
| Change rack system | TCR20 |
| Joystick | MCUlite-2 / MCU5-2 / MCU W-2 |

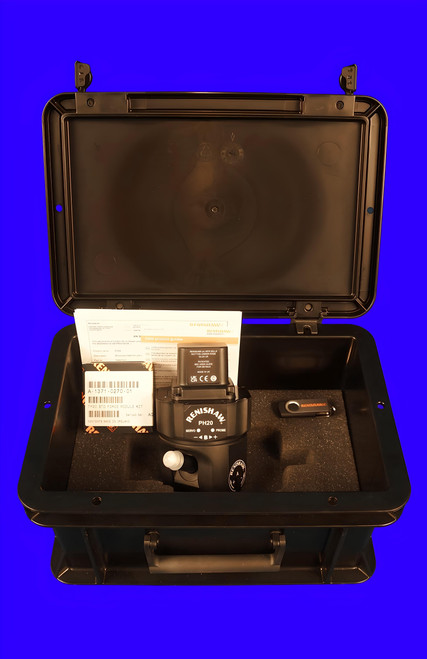

This is a great price for a Renishaw PH20 Motorized CMM Probe Head & TP20 SF Module
New with 1 Year Warranty. Why pay retail prices when you can purchase new with warranty
from Metrology Parts. Purchase with confidence from a verified Paypal retailer. If what you
order is not what you receive you will get a full refund for this sale. Metrology Parts would
like the opportunity to earn your business for this sale and all of your future Renishaw needs.
If you have any questions feel free to contact us. With 36 plus years of experience with
Renishaw products we can help with all your application needs as well as your after sales
support.
