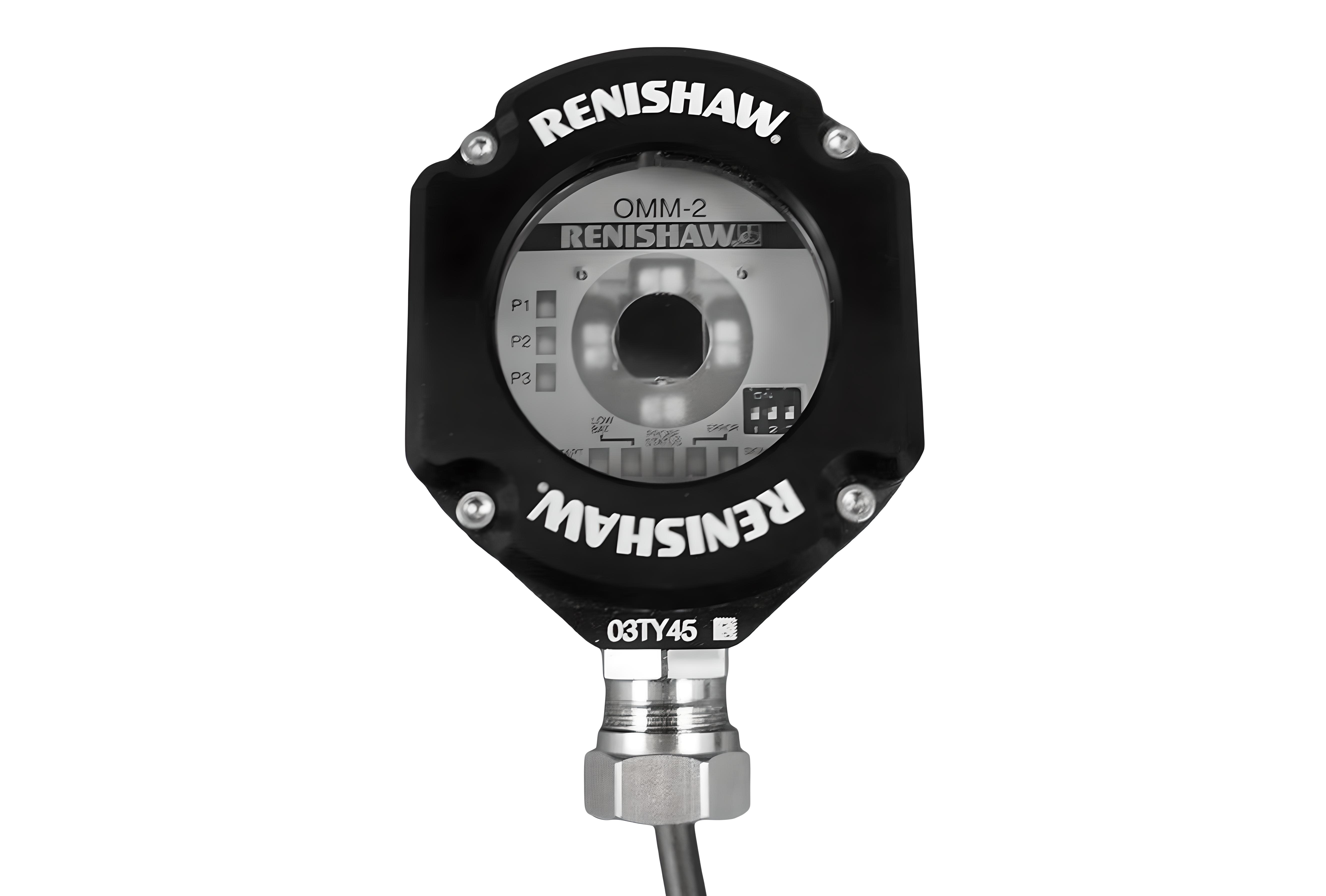

Renishaw OMM-2 Optical Machine Tool Receiver New A-5492-0051

Product Description

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging

Country of Manufacture:   UNITED KINGDOM

Brand:   RENISHAW

Model:   OMM-2

MPN:   A-5492-0051

Item Description

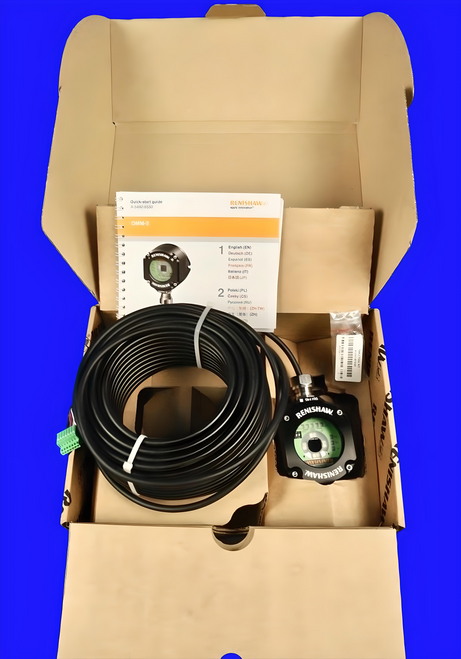

Renishaw OMM-2 Optical Machine Module 25M New in Box with 1 Year Warranty.



OSI with OMM-2 Optical Interface System

The new OSI, in conjunction with OMM-2, enables up to three touch probes or tool setters to be used in various combinations. The OSI with OMM-2 is a multiple optical probe interface system. The OSI is designed to be installed within the CNC machine controller’s cabinet and be used with either a single or tandem OMM-2 configuration, housed within the machine’s working envelope. The OSI with OMM-2 system operates using a ‘modulated’ optical transmission mode and is compatible with machine probes that also operate in ‘modulated’ mode. The OSI with OMM-2 system is user configurable for operation in either single probe mode or multiple probe mode.

Features

Multiple Probe System

In multiple probe mode the system is capable of operating three compatible probes sequentially.

Single or Tandem OMM-2

Tandem OMM-2 is ideal for applications with either long spindle movements, or partitioned machining areas.

Modulated Transmission

Effects of light interference are reduced which in some circumstances could cause false trigger signals.

Visible Probe Diagnostic LEDs

LEDs on OMM-2 provide a visual indication of system status and identify the active probe.

Mounting Bracket

The optional mounting bracket allows directional setting of the OMM-2.

Range Selection

User Configurable Outputs

Probe status 1 SSR Probe status 2 SSR Error 1 SSR
Low battery SSR

NO / NC pulsed / level NO / NC pulsed / level NO / NC
NO / NC

Level mode: which requires a dedicated level output per probe.

Common start mode / pulsed output. Common start mode / level output.

Start (Tx)
Reception (RX)
Both factory set to 100%

50% or 100% 50% or 100%

Start input (machine output)

In single probe mode the interface will operate with either a pulsed or level machine output. In multiple probe mode, two or three probes can be operated using either two or three machine outputs. If two machine outputs (for three probes) are used, a coded turn on technique is used to turn on / turn off the selected probe. To allow for a delay between machine outputs, three user- selectable options (10 ms, 50 ms and 100 ms) are provided to allow for machine variation.

This by far is the best price you will find for a Renishaw OMM-2 Optical Machine Module New in Box

with 1 Year Warranty. Purchase with confidence from a Paypal verified retailer. If what you order is not

what you receive you will be refunded the full purchase price for this sale. Metrology Parts would like

the opportunity to earn your business for this sale and all of your future Renishaw product needs. If

you have any questions feel free to contact us. With 36 plus years of experience with Renishaw products

we can help with all of your application needs as well as your after sales support.
