New: A brand-new, unused, unopened, undamaged item in its original packaging.
Country of Manufacture: UNITED KINGDOM
MPN: A-1371-0640 A-1371-0270
Renishaw TP20 NI CMM Touch Probe Kit with 3 TP20 SF Force Probe Modules New with 1 Year Warranty.
You may also specify medium, extended or standard force modules in any combinations with your order.
Renishaw List Price $5328.00
Whats included in this sale is:
- 1 TP20 Touch Probe Body
- 3 TP20 SF Modules
- New with 1 Year Warranty
The probe body incorporates a standard Renishaw M8 × 1.25 mm screw connector mount and is designed to house the mating half of the
probe module's kinematic coupling.
The TP20 is a compact module changing touch-trigger probe. The two-piece design, comprising of a probe body and detachable stylus module(s), allows the use of a range of stylus configurations and extensions to access features on complex parts. Modules can be changed manually or automatically without the need for requalification of the stylus tip.
The TP20 NI Probe body is not affected by magnetic fields and the probe trigger must be inhibited through software during change cycles using the MCR20

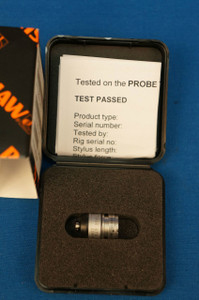

The standard force probe module, identified by a black cap, is suited to the majority of applications requiring extensions up to 50 mm long. The standard force probe module can be used with the following range of styli:
The TP20 is a compact 5-way, or 6-way, kinematic touch-trigger probe system. The two-piece design, comprising probe body and detachable stylus module(s), connected using a highly repeatable magnetic kinematic coupling. This provides the facility to change stylus configurations either manually or automatically without the need for requalification of the stylus tips, thereby giving significant time savings in inspection routines.
Modules offering a range of trigger forces allow the probe performance to be best matched to the measurement task. A set of probe extensions is also available, as is a 6-way module. The stylus mounting thread accepts styli from the Renishaw M2 range.
The TP20 system is easily retrofitted and is compatible with existing touch trigger probe interfaces, extensions and adaptors.
The system components are:
This is by far the best price you will find on a Renishaw TP20 NI Probe Kit with 3 TP20 Standard Force Modules New with 1 Year Warranty.
Why pay retail prices when you can purchase from Metrology Parts.
Purchase with confidence from a Paypal verified retailer.
If what you purchase is not what you receive you will be refunded the full purchase price of this sale.
Metrology Parts would like the opportunity to earn your business for this sale and all your future Renishaw needs.
If you have any questions feel free to contact us. With 36 plus years of experience with Renishaw products we can help with all of your applications needs as well as your after sales support.
