Renishaw M4 Styli Kit for TP7M Probe New with 1 Year Warranty A-5000-7829

MSRP: $1,614.00
(You save $264.00)
(No reviews yet) Write a Review
5.00 LBS
Calculated at Checkout

Product Description


New Stock: A brand-new, unused, undamaged item in its original wood box with 1 Year Warranty.


Country of Manufacture:   UNITED KINGDOM

Brand:    RENISHAW

Model:    M4 STYLI KIT FOR TP7M

MPN:   A-5000-7829


Item Description

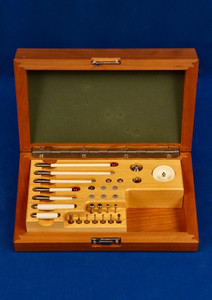

Renishaw TP7M M4 Styli Kit including Wood Box New with 1 Year Warranty.


Selecting & Using Styli

renishaw-thread-styli-options-.jpeg   renishaw-styli-material-options-.jpeg

In principle, styli are the CMM’s “tools”, providing the same relationship that turning tools have with lathes, and milling and boring tools have with milling machines.

When measuring with a touch-trigger probe, the machine uses the stylus to take the data points on the surface of the work piece.

Each touch generates a point that is defined using coordinate values in X, Y and Z. Feature, size, form and position can then be computed from these points.

By contrast a scanning probe takes continuous readings along the surface of a work piece. Sophisticated software uses this data to compute the size, position and form of features on the component.

Carefully select the stylus best suited to your measurement application



The probe calibration procedure establishes the stylus tip’s effective diameters when measuring, and their positions in relation to one another and to the machine’s co-ordinate system.


The CMM compensates for the stylus position & tip dimensions. This leaves just the form of the stylus tip as the only factor influencing the measurements

What's in the M4 TP7M Stylus Kit

renishaw-m4-kit-for-tp7m-styli-kit-part-list-image-.jpeg  renishaw-m4-kit-for-tp7m-styli-kit-part-list-.jpeg

Overall length

Renishaw uses a standard description of overall length, measured from the rear mounting face of the stylus to the centre of the ball.

Effective working length (EWL)

This is measured from the centre of the ball to the point at which the stem will foul against the feature when measuring 'normal' to the part.

EWL can also be affected by assembly tolerances. For this reason Renishaw styli are assembled to exacting standards in controlled conditions.


This is by far the best price you will find on a Renishaw TP7M M4 Styli Kit including Wood Box New with

1 Year Warranty. Purchase with confidence from a Paypal verified retailer. If what you order is not what

you receive you will be refunded the full purchase price of this sale. Metrology Parts would like

the opportunity to earn your business for this sale and all of your future Renishaw needs. If you have

any questions feel free to contact us. With 36 plus years of experience with Renishaw products we can help

with all of your application needs as well as your after sales support.
