Renishaw M2 Ø1.5 mm Ruby Spherically ended Cylinder Styli, Steel Stem, L 15 mm New With 1 Year Warranty A-5000-8877

Renishaw M2 Ø1.5 mm Ruby Spherically ended Cylinder Styli, Steel Stem, L 15 mm New With 1 Year Warranty A-5000-8877

MSRP: $270.00
$240.00
(You save $30.00)
(No reviews yet) Write a Review
Condition:
New
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

Product Description

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging.





Country of Manufacture:   UNITED KINGDOM

Brand:    RENISHAW

Model:    M2 RUBY CYLINDER STYLI

MPN:   A-5000-8877





Item Description

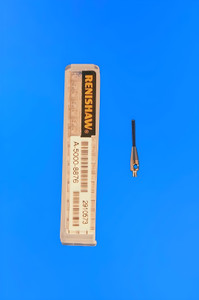

Renishaw M2 Ø1.5 mm Ruby Spherically Ended Cylinder, Stainless Steel Stem, L 15 mm New With 1 Year Warranty.


Renishaw List Price $270.00

Technical Table

Ball diameter (mm) 1.5
Cylinder diameter (mm) 1.5
EWL (mm) 8
Overall length (mm) 15
Stem material Stainless steel
Thread M2
Tip material Ruby



A few simple rules can be applied to maximize accuracy for most probing applications.

Stylus Selection Checklist

*   Always use styli that are as short and stable as possible.

*    Ensure that long stylus components have the required stability.

*    Check that the styli you use have no defects, particularly to the thread and the contact area.

*    If you are getting variations in data, check that the probe component is firmly attached.

*   Always replace worn styli.

*    Use components that are thermally stable?

*    Consider the ambient conditions.

*    When putting together stylus configurations, refer to the permitted masses as specified by the sensor manufacturer.

*    Avoid too many or unnecessary thread connections.

*    Use the lowest possible number of separate components.

*    Do you have scanning applications? Take advantage of the benefits offered by silicon nitride balls when scanning aluminium!

*    Use the largest possible balls. Large ball styli act as mechanical filters on the surface of the work piece. The fine structures on the surface of the work piece are scarcely recorded with large balls, which prevents random measurement variations (flyers).

*    Styli should always be aligned at right-angles, or as close to a right angle as possible, to the planes being measured. For angled measuring planes, angled cubes and knuckles are available to ensure that styli are accurately aligned. The same applies when measuring angled bores.

*    Ensure that the measuring force and dynamics suit the stylus components. With small ball styli with a slim stem, you should reduce these values when necessary.


Cylinder Styli Application / Purpose

Cylinder styli can be used in situations where correct contact with a ball stylus cannot be guaranteed, such as applications with sheet metal, pressed components or thin work pieces. A stainless steel stem offers excellent rigidity and is ideal for applications where weight is not critical.

Equivalent to Mitutoyo part number: K651035

Equivalent to Q-Mark part number: TM2-1515-B

Terminology

A = cylinder diameter = 1.5 MM

B = overall length = 15 MM

C = thread size = M2



This is by far the best price you will find for a Renishaw M2 Ø1 MM Ruby Spherically

Ended Cylinder, Stainless Steel Stem, L 15 MM.  Purchase with confidence from a Paypal verified retailer.

If what you order is not what you receive you will be refunded the full purchase price of this sale.

Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw

needs. If you have any questions feel free to contact us. With 36 plus years of experience with Renishaw

products we can help with all of your application needs as well as your after sales support.
