Brand: RENISHAW
Model: M2 HIGH PERFORMANCE STYLUS KIT
MPN: A-5003-2310
Item Description

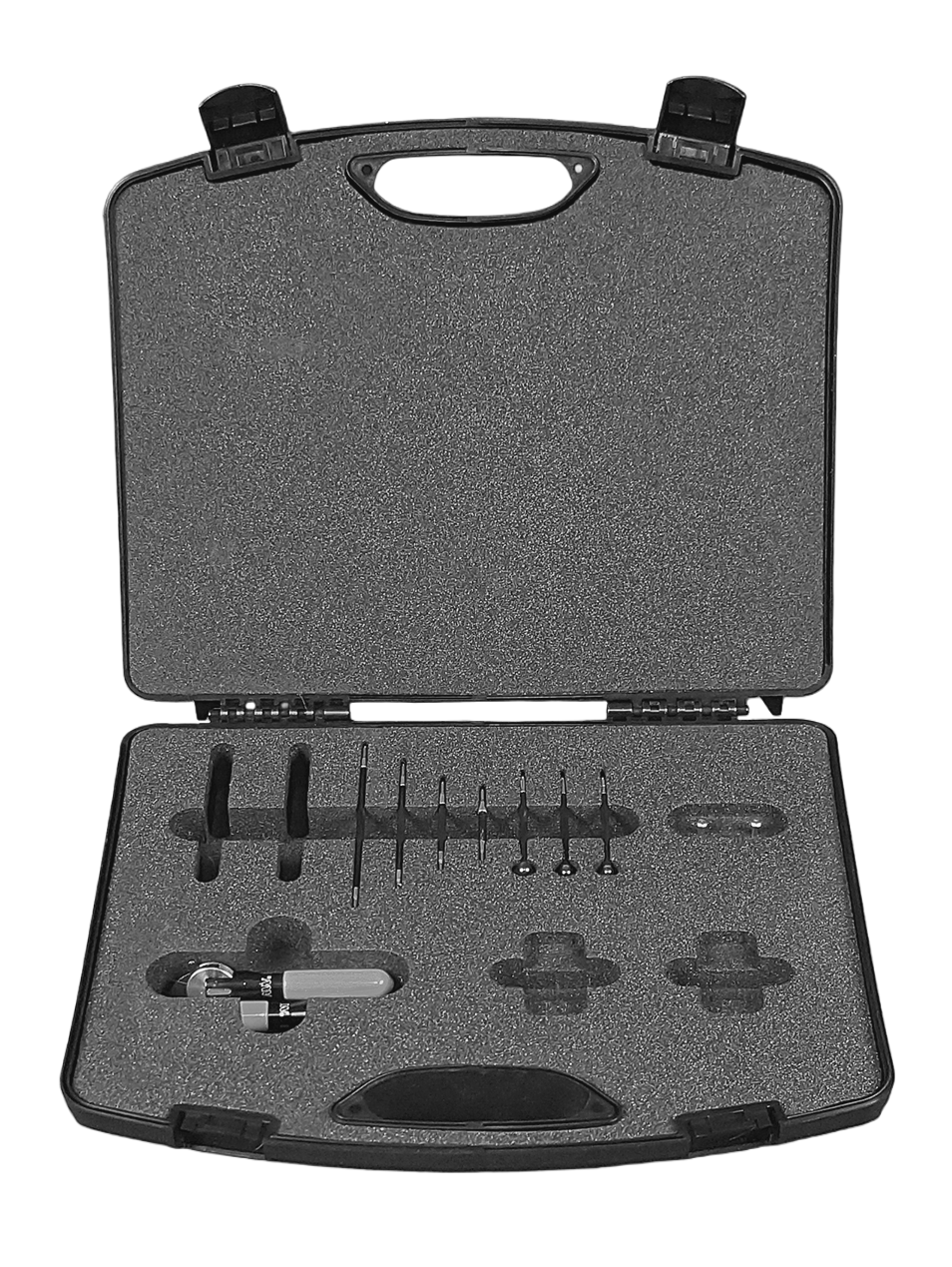

Renishaw M2 High Performance Carbon Fiber CMM Stylus Kit Display Model with 6 Month Warranty.
| Thread | M2 |
|---|
| Quantity | Part Number | Description |
|---|---|---|
| 1 | A-5003-2283 | M2 extension, L 90 mm |
| 1 | A-5003-2282 | M2 extension, L 70 mm |
| 1 | A-5003-2281 | M2 extension, L 50 mm |
| 1 | A-5003-2280 | M2 extension, L 40 mm |
| 1 | A-5003-2287 | M2 Ø6 mm ruby ball, carbon fibre stem, L 50 mm, EWL 50 mm |
| 1 | A-5003-2286 | M2 Ø5 mm ruby ball, carbon fibre stem, L 50 mm, EWL 50 mm |
| 1 | A-5003-2285 | M2 Ø4 mm ruby ball, carbon fibre stem, L 50 mm, EWL 50 mm |
| 2 | A-5004-7582 | M2 - M3 stylus tool |
| 2 | A-5003-2300 | M2 stylus tool |
Renishaw uses a standard description of overall length, measured from the rear mounting face of the stylus to the centre of the ball.
This is measured from the centre of the ball to the point at which the stem will foul against the feature when measuring 'normal' to the part.
A few simple rules for stylus selection can be applied to maximize accuracy for most probing applications
The more the stylus bends or deflects, the lower the accuracy. Probing with the minimum stylus length for your application is the best option.
Every time you join styli and extensions, you introduce potential bending and deflection points. Try, wherever possible, to keep to the minimum number of pieces possible for your application.
There are several reasons for this:
it maximises your ball/stem clearance, thereby reducing the chance of false triggers caused by 'shanking out' on the stylus stem, and increasing the EWL;
a larger ball allows a larger stem diameter, increasing the stiffness of the stylus;
the larger ruby ball reduces the effect of the surface finish of the component being inspected.
EWL can also be affected by assembly tolerances. For this reason Renishaw styli are assembled to exacting standards in controlled conditions.
This is a great price for a Renishaw M2 High Performance Carbon Fiber CMM Stylus Kit Display
Model with 6 Month Warranty. Purchase with confidence from a Paypal verified retailer. If what you
order is not what you receive you will be refunded the full purchase price of this sale. Metrology Parts
would like the opportunity to earn your business for this sale and all of your future Renishaw needs.
If you have any questions feel free to contact us. With 36 plus years of experience with Renishaw
products we can help with all of your application needs as well as your after sales support.
