Renishaw M2 High Performance Carbon Fiber CMM Styli Kit Fully Tested A-5003-2310

MSRP: $710.00
$400.00
(You save $310.00)
(No reviews yet) Write a Review
Condition:
Used
Weight:
3.00 LBS
Shipping:
Calculated at Checkout

Product Description

Condition:

Used:  Fully tested, undamaged item in its original packaging



Country of Manufacture:   UNITED KINGDOM

Brand:   RENISHAW

Model:   M2 HIGH PERFORMANCE STYLUS KIT

MPN:   A-5003-2310



Item Description

Renishaw M2 High Performance Carbon Fiber CMM Stylus Kit Fully Tested with 90 Day Warranty.

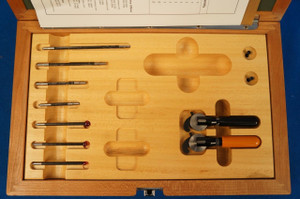

M2 HIGH PERFORMANCE STYLUS KIT INCLUDES:

Technical Table

Thread M2
Quantity Part Number Description
A-5003-2283 M2 extension, L 90 mm
A-5003-2282  M2 extension, L 70 mm
A-5003-2281  M2 extension, L 50 mm
A-5003-2280  M2 extension, L 40 mm
A-5003-2287  M2 Ø6 mm ruby ball, carbon fibre stem, L 50 mm, EWL 50 mm
A-5003-2286  M2 Ø5 mm ruby ball, carbon fibre stem, L 50 mm, EWL 50 mm
A-5003-2285  M2 Ø4 mm ruby ball, carbon fibre stem, L 50 mm, EWL 50 mm
A-5004-7582 M2 - M3 stylus tool
A-5003-2300 M2 stylus tool

A few simple rules can be applied to maximize accuracy for most probing applications:

Overall Length

Renishaw uses a standard description of overall length, measured from the rear mounting face of the stylus to the centre of the ball.

Effective Working Length (EWL)

This is measured from the centre of the ball to the point at which the stem will foul against the feature when measuring 'normal' to the part.

Rules for Choosing a Stylus

A few simple rules for stylus selection can be applied to maximize accuracy for most probing applications

Keep Styli Short

The more the stylus bends or deflects, the lower the accuracy. Probing with the minimum stylus length for your application is the best option.

Minimise Joints

Every time you join styli and extensions, you introduce potential bending and deflection points. Try, wherever possible, to keep to the minimum number of pieces possible for your application.

Keep the Stylus Ball as Large as Possible

There are several reasons for this:

  • it maximises your ball/stem clearance, thereby reducing the chance of false triggers caused by 'shanking out' on the stylus stem, and increasing the EWL;

  • a larger ball allows a larger stem diameter, increasing the stiffness of the stylus;

  • the larger ruby ball reduces the effect of the surface finish of the component being inspected.

EWL can also be affected by assembly tolerances. For this reason Renishaw styli are assembled to exacting standards in controlled conditions.



Purchase with confidence from a Paypal verified retailer Renishaw M2 High Performance

Carbon Fiber CMM Stylus Kit Fully Tested with 90 Day Warranty. If what you order is not what

you receive you will be refunded the full purchase price of this sale. Metrology Parts would like

the opportunity to earn your business for this sale and all of your future Renishaw needs.

If you have any questions feel free to contact us. With 36 plus years of experience with Renishaw

products we can help with all of your application needs as well as your after sales support.
