Renishaw HAAS MAZAK Machine Tool WIPS Kit OMP60 OTS AA OMI-2T 1 Year Warranty A-5439-0049 A-5514-2001 A-4038-2001

MSRP: $8,421.00
$5,775.00
(You save $2,646.00)
(No reviews yet) Write a Review
Condition:
New
Weight:
10.00 LBS
Shipping:
Calculated at Checkout

Product Description

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging.





Country of Manufacture:   UNITED KINGDOM

Brand:   RENISHAW

Model:   OMI-2T OMP60 OTS AA

MPN:   A-5439-0049 A-5514-2001 A-4038-2001







Item Description

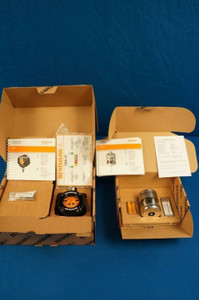

Renishaw Wireless Intuitive Probing System New with 1 Year Warranty


Renishaw List Price $8421.00

(OMP60, OTS AA, OMI2-T)



OMP60 Probe

(Modulated & Legacy Mode)

This OMP60 Probe includes a quick start guide, batteries and tool kit only.

Compact 3D touch-trigger probe with optical signal transmission. Used for workpiece set-up inspection on a wide range of medium and large machining centres.

Compatibility with all Renishaw optical receivers enables users to easily upgrade existing installations.



Key features and benefits:

• Proven kinematic design
• Exceptional resistance to light interference with modulated transmission
• 360° transmission envelope
• Compact design
• Various activation options and adjustable trigger force
• 1.00 µm 2σ repeatability



OTS contact tool setting probe

OTS cableless optical tool setting and broken tool for

vertical machining centres.

The OTS can be used as part of a Twin Probe System twin probe system,

either with a second OTS (e.g. on machines with twin pallets),

or with a suitable inspection probe.

About OMI-2T

The OMI-2T is a combined optical receiver
and machine interface which is designed to be mounted within the machine’s working envelope .

The OMI-2T operates using a ‘Modulated’ optical transmission mode and is compatible with machine probes that also operate in ‘Modulated’ mode .

Power supply

The OMI-2T can draw its supply from the CNC machine’s nominal 12 Vdc to 30 Vdc supply .

The maximum peak supply current is 160 mA when the OMI-2T is transmitting . The average supply current is 40 mA when the OMI-2T is receiving .

The values quoted are for a 24 Vdc supply and assume all outputs are open circuit .



renishaw-omi-2t-specification-.jpeg renishaw-machine-tool-probe-system-set-up-.jpeg



Compatible probes

OMI-2T can be used with any combination of the following new

generation probes. Flexible twin probe system configurations,

using one receiver and two probes, can provide an

easily integrated solution for most on-machine inspection

applications. Component setting/inspection : New!

OMP40-2, OMP60, OMP400

Tool setting/inspection :

OTS

OTS AA Tool Setting Probe

renishaw-ots-tool-setter-specification-.jpeg renishaw-ots-tool-setting-dimensions-.jpeg

Note 1 - Performance specification is tested at a standard test velocity of 480 mm/min (18.9 in/min) with a 35 mm stylus.

Significantly higher velocity is possible depending on application requirements.



Note 2 - Trigger force, which is critical in some applications, is the force exerted on the component by the stylus when the

probe triggers. The maximum force applied will occur after the trigger point (overtravel). The force value depends on

related variables including measuring speed and machine deceleration.



Note 3 - These are the factory settings: manual adjustment is not possible.

This by far is the best price you will find for a Renishaw WIPS Kit with 1 Year Warranty. Purchase with confidence from a Paypal verified retailer. If what you order is not what you receive you will be refunded the full purchase price for this sale. Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw product needs. If you have any questions feel free to contact us. With 36 plus years of experience with Renishaw products we can help with all of your application needs as well as your after sales support.
