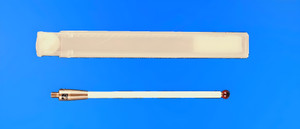

Renishaw M4 Ceramic Machine Tool Star Styli 100x6mm New in Box with 1 Year Warranty.
Renishaw List Price $94.00
Styli centres are designed to provide maximum probing flexibility with a single probe, allowing custom stylus configurations. Ruby is regarded as the industry standard for stylus tips. It is one of the hardest materials available and suitable for most applications. Due to adhesive pickup, ruby tips are not recommended for scanning aluminium parts. A ceramic stem is lightweight yet very stiff and offers built-in crash protection.
A few simple rules can be applied to maximize accuracy for most probing applications.
|Ball dia||6 mm|
|Holder material||Stainless steel|
A= ball diameter = 6.0 (0.24)
B = overall length = 100.0 (3.94)
C = stem diameter = 4.5 (0.18)
Renishaw uses a standard description of overall length, measured from the rear mounting face of the stylus to the centre of the ball.
This is measured from the centre of the ball to the point at which the stem will foul against the feature when measuring 'normal' to the part.
A few simple rules for stylus selection can be applied to maximize accuracy for most probing applications
The more the stylus bends or deflects, the lower the accuracy. Probing with the minimum stylus length for your application is the best option.
Every time you join styli and extensions, you introduce potential bending and deflection points. Try, wherever possible, to keep to the minimum number of pieces possible for your application.
There are several reasons for this:
EWL can also be affected by assembly tolerances. For this reason Renishaw styli are assembled to exacting standards in controlled conditions.
This is by far the best price you will find on a Renishaw M4 Ceramic Machine Tool Star Styli 100x6mm New in Box with 1 Year Warranty.
Purchase with confidence from a Paypal verified retailer.
If what you order is not what you receive you will be refunded the full purchase price of this sale.
Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw needs.
If you have any questions feel free to contact us. With 36 plus years of experience with Renishaw products we can help with all of your application needs as well as your after sales support.
