Renishaw M4 Ceramic 50X6MM Machine Tool Styli New in Box with Warranty A-5000-3709

MSRP: $97.00
$85.00
(You save $12.00)
(No reviews yet) Write a Review
Condition:
New
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

Product Description

Condition:

New: A brand-new, unused, unopened, undamaged item in packaging.





Country of Manufacture:   UNITED KINGDOM

Brand:    RENISHAW

Model:    MACHINE TOOL M4 CERAMIC STYLI

MPN:   A-5000-3709





Item Description

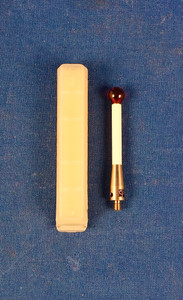

Renishaw M4 Ceramic 50 x 6mm Machine Tool Styli New in Box with 1 Year Warranty.


Renishaw List Price $97.00



Straight Styli

Straight styli are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. A ceramic stem is lightweight yet very stiff and offers built-in crash protection. Ruby is regarded as the industry standard for stylus tips. It is one of the hardest materials available and suitable for most applications. Due to adhesive pickup, ruby tips are not recommended for scanning aluminium parts.

Equivalent to Q-Mark part number: TM4-6053-C.

Styli Breakdown

A few simple rules can be applied to maximize accuracy for most probing applications.


Technical Table

Ball diameter (mm) 6
Centre styli N
EWL (mm) 38.5
Holder material Stainless steel
Is Rohs Compliant Compliant
Overall length (mm) 50
Stem diameter (mm) 4.5
Stem material Ceramic
Thread M4
Tip material Ruby

Overall length

Renishaw uses a standard description of overall length, measured from the rear mounting face of the stylus to the centre of the ball.

Effective working length (EWL)

This is measured from the centre of the ball to the point at which the stem will foul against the feature when measuring 'normal' to the part.

Rules for choosing a stylus

A few simple rules for stylus selection can be applied to maximize accuracy for most probing applications

Keep styli short

The more the stylus bends or deflects, the lower the accuracy. Probing with the minimum stylus length for your application is the best option.

Minimise joints

Every time you join styli and extensions, you introduce potential bending and deflection points. Try, wherever possible, to keep to the minimum number of pieces possible for your application.

Keep the stylus ball as large as possible

There are several reasons for this:

  • it maximises your ball/stem clearance, thereby reducing the chance of false triggers caused by 'shanking out' on the stylus stem, and increasing the EWL;
  • a larger ball allows a larger stem diameter, increasing the stiffness of the stylus;
  • the larger ruby ball reduces the effect of the surface finish of the component being inspected.

EWL can also be affected by assembly tolerances. For this reason Renishaw styli are assembled to exacting standards in controlled conditions.



This is by far the best price you will find on a Renishaw HAAS MAZAK M4 Ceramic 50x6mm

Machine Tool Styli New with 1 Year Warranty. Purchase with confidence from a Paypal verified retailer.

If what you order is not what you receive you will be refunded the full purchase price of this sale.

Metrology Parts would like the opportunity to earn your business for this sale and all of your future

Renishaw needs. If you have any questions feel free to contact us. With 36 plus years of experience with

Renishaw products we can help with all of your application needs as well as your after sales support.
