Model: STYLUS KIT 206 M2 PROBES
MPN: A-6560-7524
Item Description:

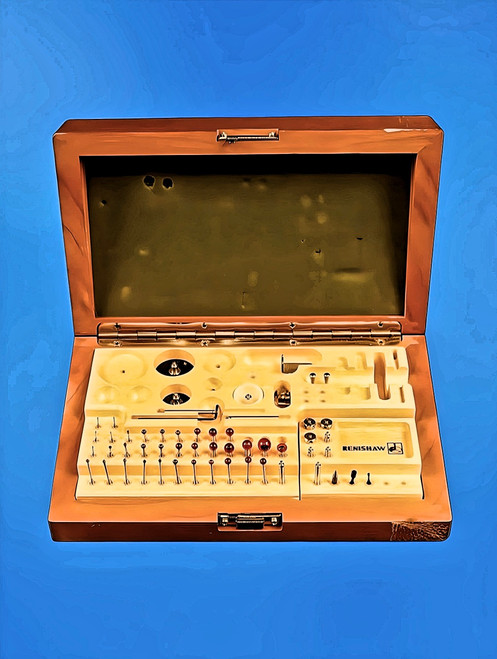

Renishaw Kit 206 with New and Used Styli Fully Tested with 90 Day Warranty.
In principle, styli are the CMM’s “tools”, providing the same relationship that turning tools have with lathes, and milling and boring tools have with milling machines.
When measuring with a touch-trigger probe, the machine uses the stylus to take the data points on the surface of the work piece.
Each touch generates a point that is defined using coordinate values in X, Y and Z. Feature, size, form and position can then be computed from these points.
By contrast a scanning probe takes continuous readings along the surface of a work piece. Sophisticated software uses this data to compute the size, position and form of features on the component.
At a basic level, the choice of stylus always relates to the connecting thread on your
coordinate measuring machine’s sensor – M5 usually M2, M3, M4 or M5. Renishaw sensors work with connecting threads. M4 Zeiss sensors mainly work with M5 and M3 connecting threads.
Styli can be used very flexibly with the help of thread adaptors e.g. you can use M2/M3/M4 styli on M5
sensor connecting threads. M2
Disc Styli
These styli are ‘sections’ of highly spherical balls and are available in various diameters and thicknesses. Mounted on a threaded spigot, the discs are made from steel, ceramic or ruby. Full rotational adjustment and the ability to add a centre stylus are features of the range. This makes them particularly flexible and easy to use.
Main Application:
These styli are used to probe undercuts and grooves within bores, which may be inaccessible to star styli. Probing with the ‘spherical edge’ of a simple disc is effectively the same as probing on or about the equator of a large stylus ball. However, only a small area of this ball surface is available for contact and hence thinner discs require angular alignment in order to ensure correct contact with the feature being probed. Disc stylus for measuring edges or undercuts. The edges of all discs are curved, as though a section had been cut out of a sphere at its equator.
Semi-Spherical Disc Styli
These styli have a half-ball, or roller, mounted on each face of the disc, both beneath and on top, which guarantees point contact in the Z direction.
Main Application:
Also for undercuts, stepped bores
and grooves within bores. Using the hemispheres above and below you can also measure in the Z direction e.g. to measure the width of a groove. Measurement of diameter and width of the groove
Ceramic Hemispherical Styli
Their advantage is that they have a large effective ball diameter with minimal weight.
Main Application:
For measuring deep features and bores. Suitable also for contact with rough surfaces, as the roughness is mechanically filtered out by the large diameter surface. Measurement of a deep threaded bore. Probing with such a large diameter ball can average out the effects of very rough surface
This is a great price for a Renishaw Stylus Kit 206 with 90 Day Warranty. Purchase with confidence from
a Paypal verified retailer. If what you order is not what you receive you will be refunded the full
purchase price for this sale. Metrology Parts would like the opportunity to earn your business for this
sale and all of your future Renishaw product needs. If you have any questions feel free to contact us.
