Renishaw CMM Stylus Kit 204 For M2 Probes 90 - Day Warranty A-6560-7565

MSRP: $1,290.00
$650.00
(You save $640.00)
(No reviews yet) Write a Review
Condition:
Used
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

Product Description



Condition:

Used and New.





Country of Manufacture:   UNITED KINGDOM

Brand:   RENISHAW

Model:   STYLUS KIT 204 FOR M2 PROBES

MPN:   A-6560-7565







Item Description:

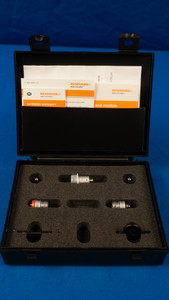

Renishaw 204 Stylus Kit for M2 Probes Fully Tested New/Used With 90 Day Warranty.

kit-204-stylus-styli-.jpgRenishaw's current list price for this kit is 1290.00.



Quantity

Part Number

Description



1

A-5000-7806

M2 stylus Ø1 ruby ball, stainless steel stem, EWL 4.5mm

1

A-5000-7807

M2 stylus Ø2mm ruby ball, stainless steel stem, EWL 6mm

1

A-5000-3604

M2 stylus Ø3mm ruby ball, stainless steel stem, EWL 7.5mm

1

A-5000-4154

M2 stylus Ø4 ruby ball, stainless steel stem, EWL 10mm

1

A-5000-4155

M2 stylus Ø5 ruby ball, stainless steel stem, EWL 10mm

1

A-5000-4156

M2 stylus Ø6 ruby ball, stainless steel stem, EWL 10mm

1

A-5000-4158

M2 stylus Ø8 ruby ball, stainless steel stem, EWL 11mm

1

A-5000-3603

M2 stylus Ø2mm ruby ball, stainless steel stem, EWL 14mm

1

A-5000-4160

M2 stylus Ø3mm ruby ball, stainless steel stem, EWL 17.5mm

1

A-5000-4161

M2 stylus Ø4mm ruby ball, stainless steel stem, EWL 20mm

1

A-5000-3611

M2 stylus Ø6mm ruby disk styli

1

M-5000-4152

M2 Cylinder Styli Ø1.5mm, silver steel, EWL 1.25mm

1

M-5000-4153

M2 Cylinder Styli Ø3mm, silver steel, EWL 3.75mm

1

M-5000-4150

M2 tungsten carbide pointer with 30 degree angle, L 15mm

1

A-5000-7809

M2 disk styli, Ø18 disk, silver steel

1

A-5000-7810

M2 disk styli, Ø25 disk, silver steel

1

A-5000-3614

M2 Ø18mm ceramic hemisphere, L 11mm

1

A-5000-7534

M2 stylus knuckle

1

M-5000-4163

M3 to M2 stainless steel adapter, L 5mm

1

A-5000-3627

M2 5-way styli center, L 7.5mm

2

M-5000-3647

M2 10mm stainless steel stylus extension

2

M-5000-3648

M2 20mm stainless steel stylus extension

2

M-5000-4162

M2 30mm stainless steel stylus extension

2

M-5000-3540

M2-M3 stylus tool

1

P-TL01-0150

Hex wrench 1.5mm A/F

1

M-5000-3541

TP2-6W spanner

1

A-1015-7749

Box

What is a stylus?

In principle, styli are the CMM’s “tools”, providing the same relationship that turning tools have with lathes, and milling and boring tools have with milling machines.

When measuring with a touch-trigger probe, the machine uses the stylus to take the data points on the surface of the work piece.

Each touch generates a point that is defined using coordinate values in X, Y and Z. Feature, size, form and position can then be computed from these points.

By contrast a scanning probe takes continuous readings along the surface of a work piece. Sophisticated software uses this data to compute the size, position and form of features on the component.

Connecting thread

At a basic level, the choice of stylus always
relates to the connecting thread on your
coordinate measuring machine’s sensor – M5 usually M2, M3, M4 or M5.

Renishaw sensors work with connecting
threads. M4

Zeiss sensors mainly work with M5 and M3 connecting threads.

M3

Styli can be used very flexibly with the
help of thread adaptors
e.g. you can use M2/M3/M4 styli on M5
sensor connecting threads. M2

Disc styli

These styli are ‘sections’ of highly spherical balls and are available in various diameters and thicknesses. Mounted on a threaded spigot, the discs are made from steel, ceramic or ruby. Full rotational adjustment and the ability to add a centre stylus are features of the range. This makes them particularly flexible and easy to use.

Main application:

These styli are used to probe undercuts and grooves within bores, which may be inaccessible to star styli. Probing with
the ‘spherical edge’ of a simple disc is effectively the same as probing on or about the equator of a large stylus ball. However, only a small area of this ball surface is available for contact and hence thinner discs require angular alignment in order

to ensure correct contact with the feature being probed.

Disc stylus for measuring edges or undercuts

The edges of all discs are curved, as though a section had been cut out of a sphere at its equator.

Semi-spherical disc styli

These styli have a half-ball, or roller, mounted on each face of the disc, both beneath and on top, which guarantees point contact in the Z direction.

Main application:

Also for undercuts, stepped bores
and grooves within bores. Using the hemispheres above and below you can also measure in the Z direction e.g. to measure the width of a groove.

Measurement of diameter and width of the groove

Ceramic hemispherical styli

Their advantage is that they have a large effective ball diameter with minimal weight.

Main application:

For measuring deep features and bores. Suitable also for contact with rough surfaces, as the roughness is mechanically filtered out by the large diameter surface.

Measurement of a deep threaded bore

Probing with such a large diameter ball can average out the effects of very rough surface



This is a great price for Renishaw New/Used Stylus Kit 204 with 90 Day Warranty.

Purchase with confidence from a Paypal verified retailer.

If what you order is not what you receive you will be refunded the full purchase price for this sale.

Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw product needs.

If you have any questions feel free to contact us. With 35 plus years of experience with Renishaw products we

can help with all of your application needs as well as your after sales support.
