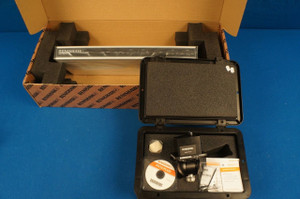

Renishaw CMM PH10M and PHC10-3 Controller All New in Boxes 1 Year Warranty A-1025-6050 A-5863-0100

MSRP: $25,756.00
$12,075.00
(You save $13,681.00)
(No reviews yet) Write a Review
Condition:
New
Weight:
10.00 LBS
Shipping:
Calculated at Checkout

Product Description

Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging.






Country of Manufacture:   UNITED KINGDOM

Brand:   RENISHAW

Model:   PH10M PHC10-3

MPN:   A-1025-6050 A-5863-0100




Item Description

Renishaw PH10M Motorized Probe Head and Renishaw PHC10-3 Probe Head Controller New with 1 Year Warranty.  (The PHC10-3 has now replaced the PHC10-2)


 Renishaw List Price $25756.00



About PH10

The range comprises three PH10 models, each of which can carry a range of probes and extensions and can be orientated in 720 repeatable positions, giving access to the most difficult-to-reach workpiece features.

All three variants of the new PH10 heads are now supplied with a revised repeatability specification, down from 0.5 µm (2?) to just 0.4 µm (2?) (specified at a distance of 62 mm), giving users improved positioning at the stylus tip. The new specification heads are physically differentiated by a new ‘aqua blast’ finish which gives a modern, matt black appearance.

PH10M

The PH10M can carry long extension bars and complex probes such as SP25M or TP7M. The highly repeatable autojoint allows rapid probe or extension bar changing without the need for re-qualification.

PH10M specification

Length 117 mm
Width 62 mm
Weight 645 g
Probe mounting Autojoint (multiwire)
Head mounting PH10M shank to suit CMM
Suitable controller PHC10-2
Repeatability of position 0.4 µm (0.00002 in) specified at a distance of 62  mm
Total no. of positions 720
Max recommended drive torque 0.45 Nm
Maximum extension bar 300 mm (11.8 in) using PAA3 extension

PHC10-3 head controller

 PHC10-3 head controller receives instructions from the CMM control. The PHC10-3 controls all head functions and reports system status to the CMM:

  • Drives PH10 (PH10T, PH10M or PH10MQ) to position - sent either from the HCU1 or CMM.
  • Checks and reports position
  • Flags up errors, e.g. failure to reach position, obstruction before or after locking etc.

The PHC10-3 does not process any of the probe sensor signals. These are railed clean through the heads axes and controller to the probe interface.

renishaw-phc10-3-plus-controller-switch-configuration-.jpeg  renishaw-phc10-3-plus-controller-product-description-.jpeg

PHC10-3 specification

Length 180 mm
Width 440 mm
Height 44 mm
Weight 1.5 Kg
Data transmission RS232 or USB
Current Consumption
(at 240V)
less than 1 A
PSU electrical ratings
Supply voltage: 100-240 V ± 10%
Frequency range: 50/60 Hz
Power consumption: 49 W max.
Transient voltages: Installation category II
Input connectors 15 way 'D'
Power supply 24 V DC 49 W provided by the Emerson PSU (DP4024N3M) power adaptor
Probe output connectors 7-pin DIN or 9-way 'D' type
Maximum cable length
RS232
USB

50 m
5 m (extendible in lengths of 5 m by use of a hub, to a maximum length of 30 m)
Hand held control unit HCU1 only



PH10T or PH10MQ can be shipped for the same price. RS 232 and USB communication for PHC10-3 controller. If your application requires custom cables please contact us. We also offer partial refunds for probing that you have replaced with this system. All components in this sale are new and in unopened boxes with 1 Year Warranty. If you were to purchase these items at full retail price you would pay $25756.00



This is by far the best price you will find on a Renishaw PH10M Motorized Probe and PH10-3 Probe Head Controller New with 1 Year Warranty. Why pay retail prices when you can purchase new with 1 Year Warranty from Metrology Parts. Purchase with Paypal from Metrology Parts a Paypal verified retailer. If what you order is not what you receive you will be refunded the full purchase price for this sale. Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw product needs. If you have any questions feel free to contact us. With 36 plus years of experience with Renishaw products we can help with all of your application needs as well as your after sales support.
