Renishaw CMM PH10M PLUS PHC10-3 PLUS Controller All New in Boxes with 2 Year Warranty

MSRP: $26,027.00
$11,500.00
(You save $14,527.00)
(No reviews yet) Write a Review
Condition:
New
Weight:
12.00 LBS
Shipping:
Calculated at Checkout

Product Description





Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).









Country of Manufacture:   UNITED KINGDOM

Brand:   RENISHAW

Model:   PH10M PH10MQ PH10T PHC10-3

MPN:   A-5863-1000 A-5863-0100









Item Description

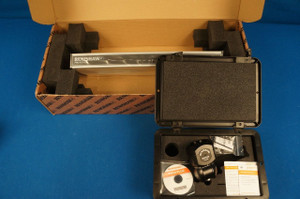

All New in Boxes with 2 Year Warranty Renishaw PH10M PLUS Motorized Probe Head and Renishaw PHC10-3 PLUS Probe Head Controller.

PH10T PLUS or PH10MQ PLUS can be shipped for the same price.

RS 232 and USB communication for PHC10-3 PLUS controller.

All items will be ordered from the factory for you which is why we have a 5 day handling time.

If your application requires custom cables please contact us. We also offer partial refunds for probing that you have replaced with this system.

All components in this sale are new and in unopened boxes with 2 Year Warranty.

If you were to purchase these items at full retail price you would pay $26027.00





The range comprises three PH10 models, each of which can carry a range of probes and extensions and can be orientated in 720 repeatable positions, giving access to the most difficult-to-reach workpiece features.

All three variants of the new PH10 heads are now supplied with a revised repeatability specification, down from 0.5 µm (2?) to just 0.4 µm (2?) (specified at a distance of 62 mm), giving users improved positioning at the stylus tip. The new specification heads are physically differentiated by a new ‘aqua blast’ finish which gives a modern, matt black appearance.

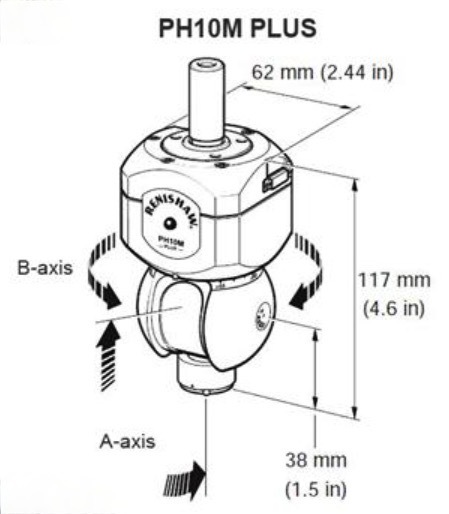

PH10M PLUS

motorised head PH10M matt with SP25 scanning probeThe PH10M can carry long extension bars and complex probes such as SP25M or TP7M. The highly repeatable autojoint allows rapid probe or extension bar changing without the need for re-qualification.



PH10M specification

Length 117 mm
Width 62 mm
Weight 645 g
Probe mounting Autojoint (multiwire)
Head mounting PH10M shank to suit CMM
Suitable controller PHC10-3 PLUS
Repeatability of position 0.4 µm (0.00002 in) specified at a distance of 62  mm
Total no. of positions 720
Max recommended drive torque 0.45 Nm
Maximum extension bar 300 mm (11.8 in) using PAA3 extension




PH10MQ PLUS

motorised head PH10MQ matt with SP25 scanning probeThe PH10MQ is a variant of the PH10M that allows the motorised head to be attached directly to the quill with the B axis of the head inside the quill itself. This option provides a neater and shorter probe mount, with only the A axis protruding from the quill.





PH10MQ specification

Length 73 mm
Width 80 mm
Weight 730 g
Probe mounting Autojoint (multiwire)
Head mounting Direct to quill
Suitable controller PHC10-3 PLUS
Repeatability of position 0.4 µm (0.00002 in) specified at a distance of 62  mm
Total no. of positions 720
Max recommended drive torque 0.45 Nm
Maximum extension bar 300 mm (11.8 in) using PAA3 extension




PH10T PLUS

PH10T motorised head (matt) with TP20 EF touch probeThe PH10T is similar to the PH10M, except that it features an M8 thread probe mount in place of the autojoint.

All M8 threaded probes, such as TP20 and TP200, and extension bars fit directly onto the head. The PH10T is fully compatible with all of Renishaw's stylus and module change systems.





PH10T specification

Length 103 mm
Width 62 mm
Weight 645 g
Probe mounting M8 thread (2 wire)
Head mounting Shank to suit CMM
Suitable controller PHC10-3 PLUS
Repeatability of position 0.4 µm (0.00002 in) specified at a distance of 48 mm (equivalent to a TP2 and PS1R stylus)
Total no. of positions 720
Max recommended drive torque 0.45 Nm
Maximum extension bar 300 mm (11.8 in) using PEL4 extension



PHC10-3 PLUS head controller

PHC10-3 controller PHC10-3 head controller receives instructions from the CMM control. The PHC10-3 controls all head functions and reports system status to the CMM:

  • Drives PH10 (PH10T, PH10M or PH10MQ) to position - sent either from the HCU1 or CMM.
  • Checks and reports position
  • Flags up errors, e.g. failure to reach position, obstruction before or after locking etc.

The PHC10-3 does not process any of the probe sensor signals. These are railed clean through the heads axes and controller to the probe interface.

PHC10-3 specification

Length 180 mm
Width 440 mm
Height 44 mm
Weight 1.5 Kg
Data transmission RS232 or USB
Current Consumption
(at 240V)
less than 1 A
PSU electrical ratings
Supply voltage: 100-240 V ± 10%
Frequency range: 50/60 Hz
Power consumption: 49 W max.
Transient voltages: Installation category II
Input connectors 15 way 'D'
Power supply 24 V DC 49 W provided by the Emerson PSU (DP4024N3M) power adaptor
Probe output connectors 7-pin DIN or 9-way 'D' type

Maximum cable length
RS232
USB


50 m
5 m (extendible in lengths of 5 m by use of a hub, to a maximum length of 30 m)

Hand held control unit HCU1 HCU2





This is by far the best price you will find on a Renishaw PH10 PLUS motorized probe and PH10-3 PLUS probe head controller.

Why pay retail prices when you can purchase new with 2 Year Warranty from Metrology Parts.

Purchase with Paypal from Metrology Parts a Paypal verified retailer.

If what you order is not what you receive you will be refunded the full purchase price for this sale.

Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw product needs.

If you have any questions feel free to contact us. With 32 plus years of experience with Renishaw products we can help with all of your application needs as well as your after sales support.
