Renishaw ACR1 Autochange CMM Probe Rack & ACC2 Controller Display Model - 6 Month Warranty A-1051-1300 A-1520-0101

MSRP: $19,027.00
(You save $13,027.00)
(No reviews yet) Write a Review
23.00 LBS
Calculated at Checkout

Product Description


New Other – Display Model: Both items in excellent, new condition with no functional defects. Comes with original packaging and used for demo purposes only. These items both include some accessories found with the original product and a 6 Month Warranty. Please see photos.



Country of Manufacture:   UNITED KINGDOM


Model:   ACR1 ACC2-2

MPN:   A-1051-1300 A-1520-0101



Item Description

Renishaw ACR1 Autochange Rack & ACC2-2 Controller Display Model - 6 Month Warranty.


The accessories supplied with this ACR1 sale are a datum stylus, an alignment stylus, a stylus tool, a S10 autojoint key.

The Autochange System

General Description

Renishaw's ACR1 is a fully integrated 8 port probe exchange system. Mounted within the CMM's working envelope, the autochange system facilitates fast, automatic probe exchange without the need for re-qualification of the probe assembly.

Fast probe exchange cycles are achieved by the probe head docking the original probe and selecting a new one. The high repeatability of the autojoint removes the need to re-qualify between moves.

The autochange system consists of an autochange rack, an autochange controller and an autochange head which, together with a mounting kit and cables, form a complete kit.

ACR1 Autochange Rack

The ACR1 autochange rack is the functional part of the system which is located within the CMM working volume. It is powered and controlled by the ACC2-3 controller via a rack cable which can be up to 30 metres (98 feet) long.

The ACR1 stores up to eight 25 mm diameter autojointed probe and extension bar combinations which can be exchanged automatically by the CMM. The ACR1 can be mounted in either the horizontal or vertical orientation depending on the application.

The two cut-aways on the ACR1 are to allow larger diameter probes to be used, such as SP600M. In this case special short ports are required making the ports either side of the probe redundant (or with limited use).

A full set of short ports (i.e. eight) are supplied with the ACR1 allowing the rack to be fully customised.

Datum Probe

The rack includes a fixed touch-trigger datum probe at its left end which incorporates a datum stylus and an alignment stylus. This datum probe is used to align the probe head to the ACR1.

Datuming the probe head autojoint on the datum stylus relates the position of the head to the rack, and the location of the probe configurations held within the rack. The alignment stylus is included to assist with the head alignment.

Sensing System

The rack performs probe change routines using light beams to detect the probe head and includes motor-driven screwdriver blades to lock and unlock the probes. The light beams are located in front of and behind the probe docking port lids, and a light beam sensing system determines which function to perform by monitoring which light beam is broken first.

If the front beam is broken first, this indicates to the system that the head is entering the port with either a probe or extension bar attached - the screwdriver blades will be set to the locked position to enable the head to dock correctly.

If the rear beam (within the main unit) is broken first, this indicates that an empty probe head or extension bar is entering the rack - the screwdriver blades will be set to the unlocked position. After both beams have been broken, the system waits for the appropriate command or time to lock or unlock the probe.

Rack LED Sequences

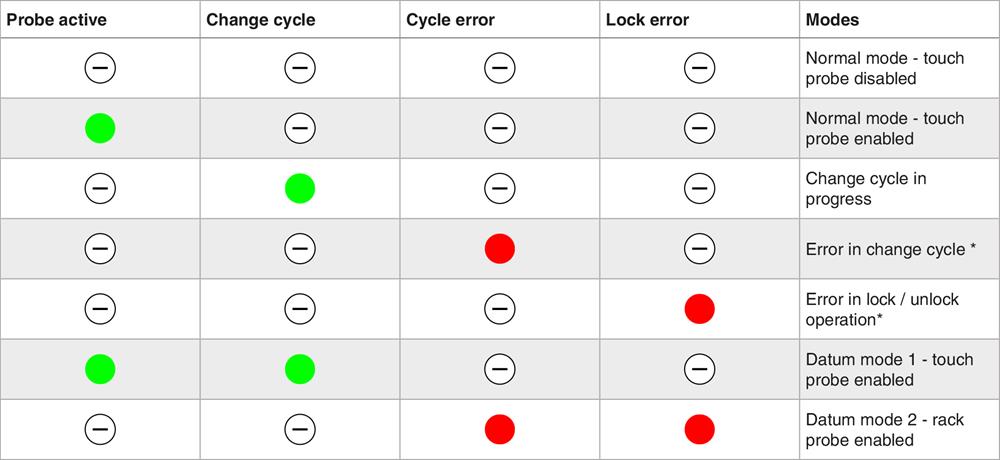

There are four LEDs on the rack which indicate the status of the probe change cycle (see table below):

ACR1 LED sequences

There is a limited ovetravel and crash protection facility built into the rack. If it is deflected by more than 1 mm (0.039 in) it sends a STOP signal to the CMM control to stop the machine.

* See 'Fault finding' section for error mode analysis.

ACC2-2 Legacy Controller

ACC2-2 Autochange Controller for ACR1

Handles communications between the CMM controller and the ACR1 autochange rack

Multiplexes head and rack probe signals

Communicates to CMM via RS232


Data transmission Serial RS232
User definable parameters Serial Baud rate 300 - 19200
Voltage range 85 V - 264 V 50 Hz / 60 Hz


88 mm (3.47 in) 2'U'


289.30 mm (11.40 in) - 2/3 of a 19" rack


220 mm (8.66 in)
Weight 3.85 kg (8.49 lb)

This sale does not include any probe modules, legs or cables but can be added.

If you would like to order addition probing with ACR1 please do not hesitate to contact us


This is by the far the best price you will find on a Renishaw ACR1 Auto Change Rack & ACC2-2

Controller Display Model with 6 Month Warranty. Why pay retail prices when you can purchase

with warranty from Metrology Parts. Purchase with confidence from a Paypal verified retailer. If what

you order is not what you receive you will be refunded the full purchase price for this sale.

Metrology Parts would like the opportunity to earn your business for this sale and all of

your future Renishaw needs. If you have any questions feel free to contact us. With

36 plus years of experience with Renishaw products we can help with all of your

application needs as well as your after sales support.
