Model: UCC PI80 INTERFACE
MPN: A-6251-0100
Item Description

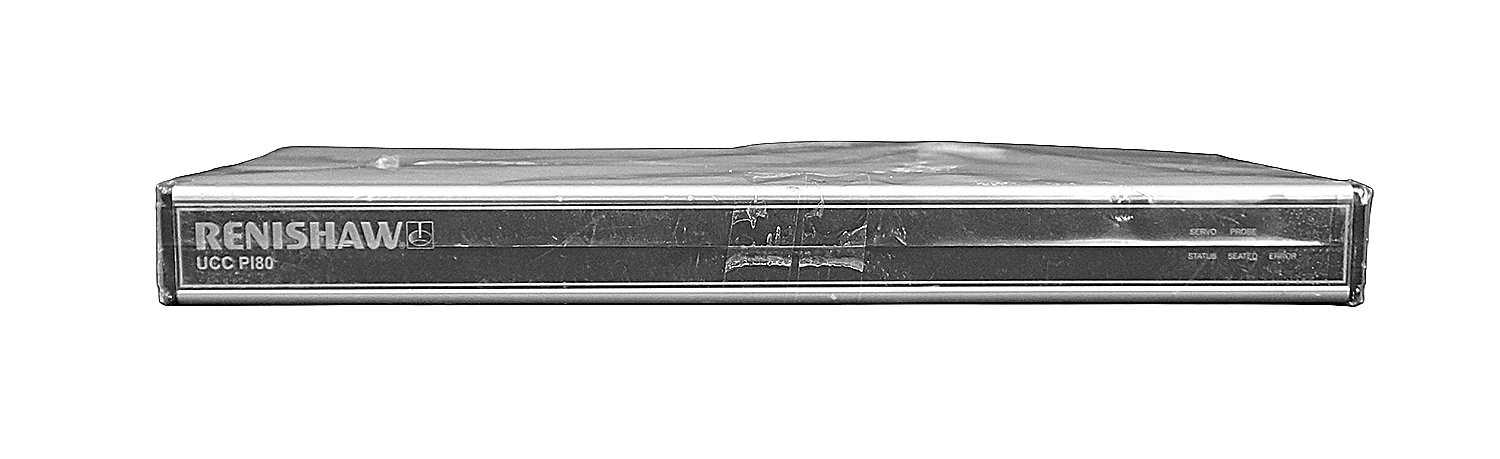

Renishaw UCC PI80 Interface Display Model/New-No Box with 6 Month Warranty.
UCC PI 80 Introduction
The UCC PI 80 is required for CMM systems which are fitted with Renishaw's SP80 scanning probe and facilitates the use of the UCC S3 as the machine controller.
If the CMM system uses brushless motors, then the UCC PI 80 may be connected to a Renishaw SPA2-2 which provides power. Please see the UCC BI user guide (Renishaw part number H-1000-7602) for configuration instructions.
If the CMM system uses motors which are not supported by Renishaw SPA products (e.g. above 80 V or 10 A), then the UCC PI 80 may be connected to a third party analogue amplifier to provide power. Please see the UCC AI installation guide for configuration instructions.
| Width | Depth | Height | Weight |
| 440 mm (17.3 in) | 180 mm (7.1 in) | 44 mm (1.7 in) | 2.4 kg (5 lb 3 oz) |

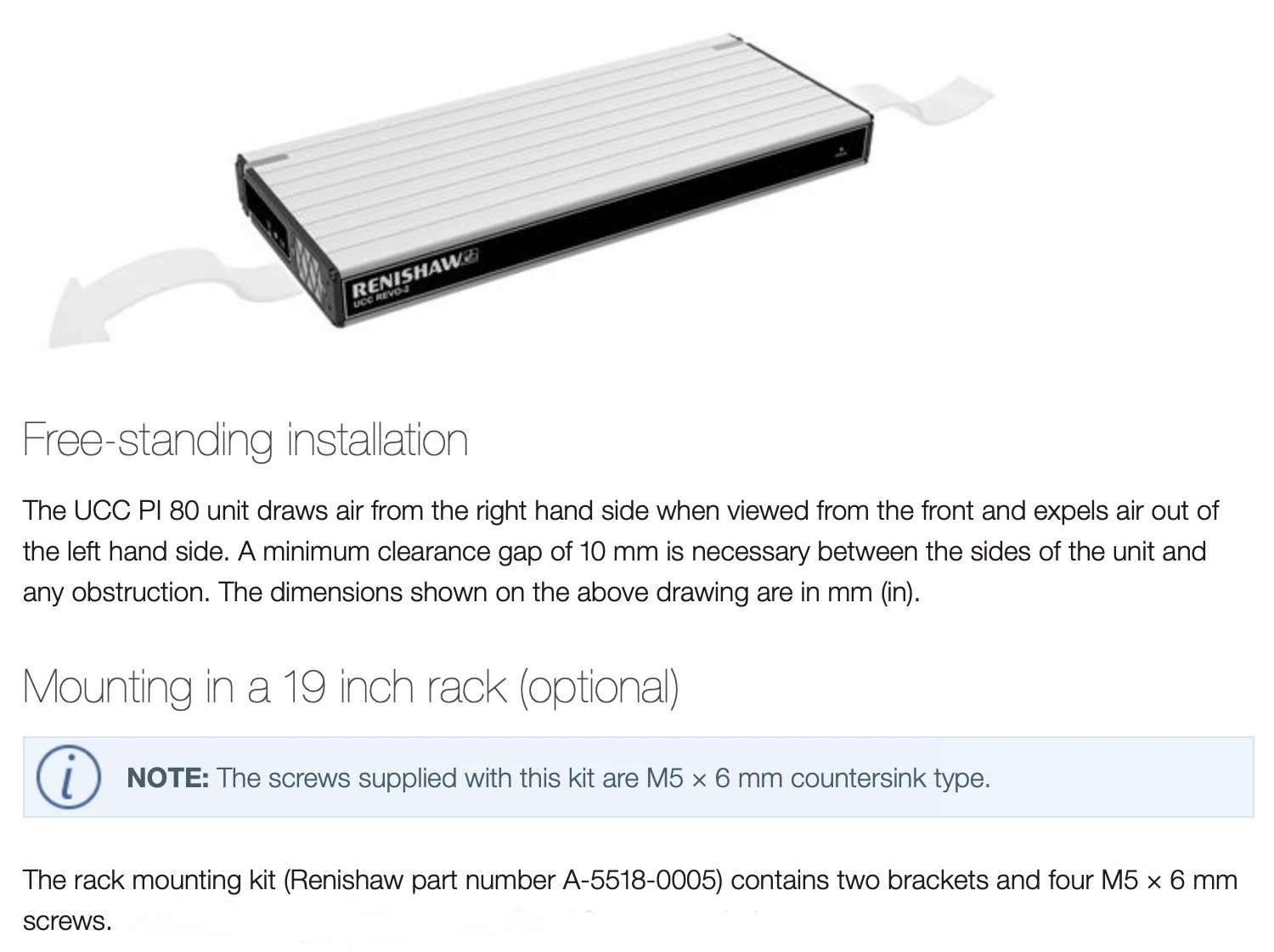

UCC PI 80 can either be free standing or used in a 19 inch rack system.
WARNING: Ensure the UCC PI 80 is disconnected from the mains supply during installation.
UCC PI 80 general wiring standards
To achieve reliable operation of the UCC PI 80 the following should be observed:
NOTE: When used for SP80 only, with an SPA3 and UCC S3, the amplifier ground will be connected to the UCC PI 80 ground through the UCC S3.
|
Function |
Description |
|---|---|
|
signal |
active high |
|
/signal/ |
(active low) |
|
reserved |
Do not use. For Renishaw purposes only. |
|
signal + |
Positive differential pair |
|
signal - |
Negative differential pair |
Connectivity
The UCC PI 80 has different configuration layouts to provide an interface to CMM systems with three, four or five machine axes, whether brushed or brushless motors.
