Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended.
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: TP8 PROBE KIT I/L ADJUSTMENT
MPN: A-1311-0151
Item Description

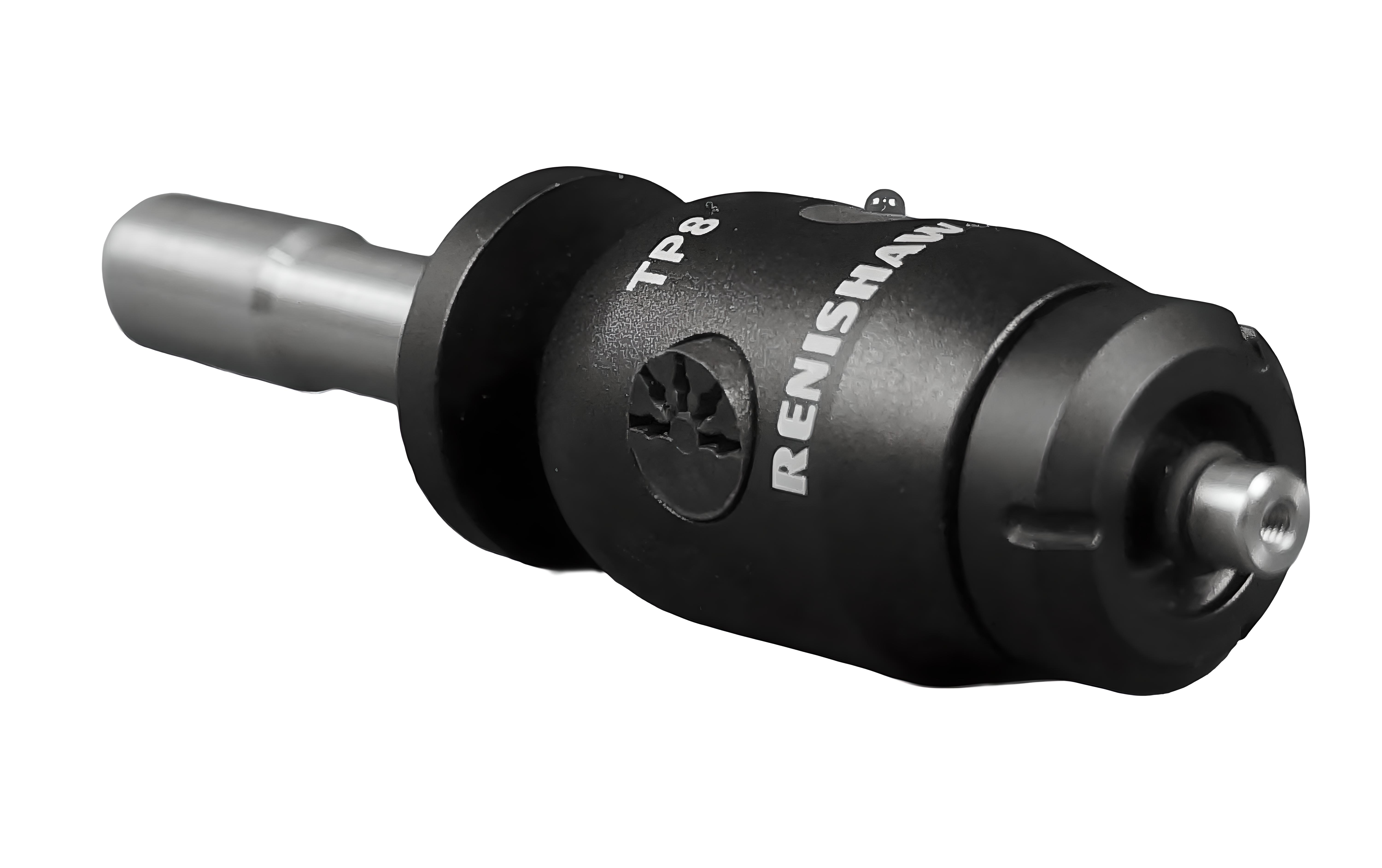

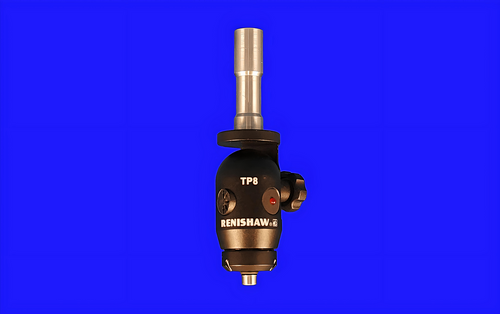

Renishaw TP8 Touch Probe Kit I/L Adjustment Fully Tested with 90 Day Warranty.
* * * Probe not stocked at Renishaw USA * * *
TP8
Robust kinematic probe ideal for manual CMMs
Large overtravel range
Large adjustable trigger force range
Shank mounted
External cable
Specification
| Principal application | Robust universal DCC and manual CMMs. |
|---|---|
| Sense directions | 5-axis: ±X, ±Y, +Z |
| Unidirectional repeatability maximum (2σ μm) (at stylus tip) | 0.5 μm (0.00002 in) |
| Pre-travel variation 360° (XY plane) | ±1 μm (±0.00004 in) |
| Weight (without shank) | 95 g (3.36 oz) |
| Stylus range | M3 |
| Stylus force range (adjustable) | 0.11 N - 0.3 N |
| Stylus force (set by Renishaw) | 0.11 N - 0.13 N |
| Stylus overtravel (typical) | XY plane:±22°+Z axis:5.5 mm (0.22 in) @ 0.11 N2 mm (0.08 in) @ 0.3 N |
| Mounting method | Shank |
| Suitable interface | PI 7-3, PI 200-3, UCC |
Above Data Applies to Test Conditions as Follows:
Stylus length 21 mm (0.83 in)
Stylus velocity 480 mm/min (1.57 ft/min)
Stylus force 0.11 N to 0.13 N
Ø4 mm ball
TP8 Probe Variants
| Description | Part Number |
|---|---|
| TP8 probe only (no shank) | A-1311-0164 |
| TP8 probe with MS1/T | A-1311-0239 |
| TP8 probe with MS2 shank | A-1311-0232 |
| TP8 probe kit I/L adjustment | A-1311-0151 |
