Renishaw TP7M High Accuracy CMM Strain Gauge Fully Tested Probe Kit with 90 Day Warranty A-1073-0121

MSRP: $5,906.00
$1,000.00
(You save $4,906.00)
(No reviews yet) Write a Review
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

Product Description



Condition:

Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used.







Country of Manufacture:   UNITED KINGDOM

Brand:   RENISHAW

Model:   TP7

MPN:   A-1073-0121








Item Description

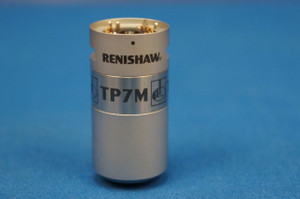

Demo machine Renishaw TP7M High Accuracy CMM Strain Gauge Probe in box.






The Renishaw TP7M is designed to maintain a high level of accurate and reliable performance across a wide range on conditions.

Renishaws current retail price for the TP7M probe kit is $5625.00



About TP7M

The TP7M probe is an electronic probe using strain gauge technology, which gives higher accuracy, eliminates lobing and reseat errors and offers a much longer life than kinematic touch trigger probes.

Incorporating a multi-wired autojoint connection, the TP7M is compatible with the PH10M/PH10MQ motorised heads, PH6M fixed probe head, plus the range of multi-wired extension bars (PEM).



TP7M specification

Specification summaryTP7M
Principle application FMS and automated systems. Universal DCC and manual CMMs.
Sense direction 6-axis: ±X, ±Y, ±Z
3D accuracy (test to ISO 10360 Pt 2) N/A
Unidirectional repeatability(2s µm)

Trigger level 1:  0.25 µm (0.00001 in)

Trigger level 2:  0.25 µm (0.00001 in)

XY (2D) form measurement deviation

Trigger level 1:  ±0.25 µm (0.00001 in)

Trigger level 2:  ±0.50 µm (0.00002 in)

XYZ (3D) form measurement deviation

Trigger level 1:  ±0.50 µm (0.00002 in)

Trigger level 2:  ±1 µm (0.00004 in)

Trigger force (at stylus tip)  XY plane:  0.02 N
Z axis:  0.15 N
Overtravel force XY plane:  0.78 N
Z axis:  11.75 N
Weight 85 g (3 oz)
Maximum extension (if on a PH10 series head) 200 mm (7.87 in)
Maximum recommended stylus length (M4 styli range) 150 mm (5.91 in) steel - 180 mm (7.09 in) GF
Mounting method Multiwired autojoint
Suitable interface PI 7-2
Automatic probe changing Autochange rack
Stylus range M4



This is by far the best price you will find on a demo Renishaw TP7M probe.

Why pay retail prices when you can purchase with warranty from Metrology Parts.

Purchase with Paypal from Metrology Parts a Paypal verified retailer.

If what you order is not what you receive you will be refunded the full purchase price for this sale.

Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw product needs.

If you have any questions feel free to contact us. With 35 plus years of experience with Renishaw products we can help with all of your application needs as well as your after sales support.
