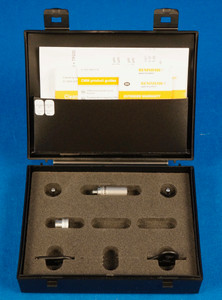

Renishaw TP200B CMM Probe Kit New With 1 Year Warranty A-1207-0046

MSRP: $4,412.00
(You save $2,257.00)
(No reviews yet) Write a Review
2.00 LBS
Calculated at Checkout

Product Description


New: A brand-new, unused, unopened, undamaged item in its original packaging.



Country of Manufacture:   UNITED KINGDOM

Brand:    RENISHAW

Model:   TP200B

MPN:   A-1207-0046



Item Description

Renishaw TP200 CMM Probe Body New with 1 Year Warranty.


TP200 Product Description

Probe Body

The TP200 probe body houses the strain sensing structure and electronic processing circuitry.

When the stylus contacts the workpiece, in a normal gauging move, the force applied to the stylus tip is transferred, through the stylus module and the coupling at the front of the probe body, to the silicon strain sensors. A tip deflection of a few μm is sufficient to trigger the probe. The probe's signals are amplified and processed in a hybrid microcircuit electronic assembly. The probe's data and control signals are communicated between the probe and the PI 200-3 interface over a pair of screened wires, allowing the TP200 system to be compatible with the majority of Renishaw probe heads and accessories.

The TP200B probe body uses the same technology as the TP200 probe body but has been designed to have a higher tolerance to vibration. This helps to overcome the problem of 'air' trigger generation which can arise from vibrations transmitted through the CMM or when using long styli with fast positioning speeds.

The stylus module is held in position on the front of the probe body by a magnetic, kinematic coupling. The coupling allows the stylus module to be removed and then replaced such that the stylus tip returns to a highly repeatable spatial position, eliminating the need for requalification.


The TP200 / TP200B are electronic probes using strain gauge technology, which gives higher accuracy than kinematic touch-trigger probes. They combine outstanding metrology performance with superior functionality to produce a highly versatile DCC CMM probing system, with excellent productivity.

TP200 Module

The stylus module is mounted on the TP200 / TP200B probe body via a highly repeatable magnetic kinematic joint, providing a rapid stylus changing capability and probe overtravel protection.

TSF (standard force) module is suitable for most applications.

 LF (low force) module is recommended for use with small precision ball styli or on delicate materials.

renishaw-tp200-strain-gage-probe-body-precision-part-precise-measuring-specification-.jpeg  renishaw-tp200-tp200b-strain-gage-probe-body-precision-part-precise-measuring-specification-.jpeg

Features and Benefits

Excellent repeatability and precision 3D form measurement
Rapid exchange between stylus configurations without the need to re-calibrate
6-way measuring capability (±X, ±Y, ±Z)
Zero reseat errors and no lobing effect
Suitable for intensive 'peck' or 'stitch' scanning
Stylus reach up to 100 mm (3.99 in) GF range
Module life of more than 10 million triggers
Compatible with the full range of Renishaw probe heads and accessories

This is by the far the best price you will find on a Renishaw TP200B Probe Kit with 1 Year Warranty.

Why pay retail prices when you can purchase with warranty from Metrology Parts. Purchase with

confidence from a Paypal verified retailer. If what you order is not what you receive you will be

refunded the full purchase price for this sale. Metrology Parts would like the opportunity to earn your

business for this sale and all of your future Renishaw needs. If you have any questions feel free to

contact us. With 36 years of experience with Renishaw products we can help with all of your application

needs as well as your after sales support.
