Renishaw TP20 Probe Kit with MF, SF, EF New in Box with 1 Year Warranty A-1371-0294 A-1371-0270

MSRP: $5,328.00
$3,285.00
(You save $2,043.00)
(No reviews yet) Write a Review
Condition:
New
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

Product Description

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging.





Country of Manufacture:   UNITED KINGDOM

Brand:   RENISHAW

Model:   TP20

MPN:    A-1371-0294 A-1371-0270





Item Description

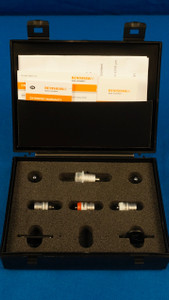

Renishaw TP20 CMM Touch Probe Kit with 1 TP20 Medium, Standard & Extended Force Probe Modules New with 1 Year Warranty


You may also specify medium, extended or standard force modules in any combinations with your order.

Renishaw List Price $5328.00

Whats included in this sale is:

- 1 TP20 Touch Probe Body

-   TP20 MF, SF & EF Modules

- New with 1 Year Warranty



TP20 Probe Body

The probe body incorporates a standard Renishaw M8 × 1.25 mm screw connector mount and is designed to house the mating half of the

probe module's kinematic coupling.

TP20 NI Body

The TP20 is a compact module changing touch-trigger probe. The two-piece design, comprising of a probe body and detachable stylus module(s), allows the use of a range of stylus configurations and extensions to access features on complex parts. Modules can be changed manually or automatically without the need for requalification of the stylus tip.

The TP20 NI Probe body is not affected by magnetic fields and the probe trigger must be inhibited through software during change cycles using the MCR20

The standard force probe module, identified by a black cap, is suited to the majority of applications requiring extensions up to 50 mm long. The standard force probe module can be used with the following range of styli:

  • Straight styli up to 50 mm long
  • Star and cranked styli up to 20 mm offset

TP20 Touch Probe Options

renishaw-tp20-specifications-.jpeg renishaw-tp20-touch-probe-option-descriptions-.jpeg

About TP20

The TP20 is a compact 5-way, or 6-way, kinematic touch-trigger probe system. The two-piece design, comprising probe body and detachable stylus module(s), connected using a highly repeatable magnetic kinematic coupling. This provides the facility to change stylus configurations either manually or automatically without the need for requalification of the stylus tips, thereby giving significant time savings in inspection routines.

Modules offering a range of trigger forces allow the probe performance to be best matched to the measurement task. A set of probe extensions is also available, as is a 6-way module. The stylus mounting thread accepts styli from the Renishaw M2 range.

The TP20 system is easily retrofitted and is compatible with existing touch trigger probe interfaces, extensions and adaptors.

renishaw-tp20-module-comparative-stylus-lengths-.jpeg renishaw-tp20-module-application-guide-.jpeg

System components

The system components are:

  • TP20 probe body
  • TP20 probe module - seven variants allow optimisation to suit application
  • MCR20 module changing rack - automatic operation
  • MSR1 module storage rack - manual operation
  • Suitable for interfacing with Renishaw's PI4-2, PI7-2 or PI200

renishaw-tp20-technical-measuring-performance-.jpeg renishaw-tp20-probing-forces-overtravel-limits-.jpeg



This is by far the best price you will find on a Renishaw TP20 Probe Kit with TP20 Medium, Standard & Extended Force Probe Modules New with 1 Year

Warranty. Why pay retail prices when you can purchase from Metrology Parts. Purchase with confidence from a Paypal verified retailer.

If what you purchase is not what you receive you will be refunded the full purchase price of this sale.

Metrology Parts would like the opportunity to earn your business for this sale and all your future Renishaw needs.

If you have any questions feel free to contact us. With 36 plus years of experience with Renishaw products we can help with all of your applications needs as

well as your after sales support.
