Renishaw TP20 Non-Inhibit CMM Probe Kit with 1 SF Module New in Box with Warranty A-1371-0656

MSRP: $3,340.00
$1,840.00
(You save $1,500.00)
(No reviews yet) Write a Review
Condition:
New
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

Product Description



Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).







Country of Manufacture:   RENISHAW

Brand:   RENISHAW

Model:   TP20

MPN:   A-1371-0656







Item Description

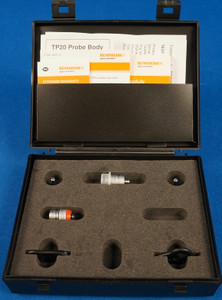

New in Box with 1 Year Warranty Renishaw TP20 Non-Inhibit Touch Probe Kit with One Standard Force Module.



                                                                                renishaw-tp20-body-.jpg   tp20-sf-.jpeg



The Non-Inhibit version of the TP20 has been designed to better perform than the standard TP20 where probe operation is within a magnetic field.

The TP20 NI version body must be inhibited through software during cycle changes using the MCR20 probe rack.

You may also specify a standard TP20 body with your order as well as a different force range of the module included.



About TP20

The TP20 is a compact 5-way, or 6-way, kinematic touch-trigger probe system. The two-piece design, comprising probe body and detachable stylus module(s), connected using a highly repeatable magnetic kinematic coupling. This provides the facility to change stylus configurations either manually or automatically without the need for requalification of the stylus tips, thereby giving significant time savings in inspection routines.

Modules offering a range of trigger forces allow the probe performance to be best matched to the measurement task. A set of probe extensions is also available, as is a 6-way module. The stylus mounting thread accepts styli from the Renishaw M2 range.

The TP20 system is easily retrofitted and is compatible with existing touch trigger probe interfaces, extensions and adaptors.



System components

The system components are:

  • TP20 probe body
  • TP20 probe module - seven variants allow optimisation to suit application
  • MCR20 module changing rack - automatic operation
  • MSR1 module storage rack - manual operation
  • Suitable for interfacing with Renishaw's PI4-2, PI7-2 or PI200

                                                              TP20 system configuration

TP20 specification

Sense directions

All modules except 6W

6W

±X, ±Y, +Z

±X, ±Y, ±Z

Suitable interface   PI4-2, PI7-2, PI200, UCC
Pre-travel variation

LF

SF / EM1 / EM2

MF

EF

6W

±0.60 µm (± 0.000023 in)

±0.80 µm (± 0.000032 in)

±1.00 µm (± 0.000039 in)

±2.00 µm (± 0.000079 in)

±1.50 µm (±0.000058 in)

Unidirectional repeatability

 LF / SF / EM1 / EM2

MF

EF

6W

±0.35 µm (± 0.000014 in)

±0.50 µm (± 0.000020 in)

±0.65 µm (± 0.000026 in)

±0.80 µm (± 0.000032 in)

Repeatability of stylus changing

MCR20

Manual

±0.50 µm (± 0.000020 in)

±1.00µm (± 0.000040 in)

Stylus range   M2
Mounting method   M8 thread



Probe modules

A range of seven, application specific, probe modules is available and are identified by coloured caps.

Module ApplicationTrigger forcesStylus lengths
SF - Standard force TP20 SF module  Suited to the majority of applications

XY: 0.08 N

Z: 0.75 N

Stylus: 10 mm

10 - 50 mm GF
LF - Low force  TP20 LF module Low trigger forces applications - e.g. rubber seals

XY: 0.055 N

Z: 0.65 N

Stylus: 10 mm

10 - 30 mm
MF - Medium force TP20 MF module Where a higher trigger force than standard is required

XY: 0.1 N

Z: 1.9 N

Stylus: 25 mm

10 - 60 mm
EF - Extended force TP20 EF module Large stylus assemblies or where vibration causes spurious 'air' triggers

XY: 0.1 N

Z: 3.2N

Stylus: 10 mm

10 - 60 mm
6W - 6-way TP20 6W module Measurement in the –Z direction - e.g. undercuts

XY: 0.14 N

Z: 1.6N

Stylus:  10 mm

10 - 50 mm
EM1 STD - 50 mm extension TP20 EM1 Majority of applications requiring a 50 mm extension

XY: 0.08 N

Z: 0.75 N

Stylus:  10 mm

10 - 50 mm
EM2 STD - 75 mm extension TP20 EM2 module Majority of applications requiring a 75 mm extension

XY: 0.08 N

Z: 0.75 N

Stylus:  10 mm

10 - 50 mm



This is by far the best price you will find on a new Renishaw TP20 Non-Inhibit Probe Kit with One Stylus Force Module.

Why pay retail prices when you can purchase new with warranty from Metrology Parts.

Purchase with confidence from a Paypal verified retailer.

If what you order is not what you receive you will be refunded the full purchase price of this sale.

Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw product needs.

If you have any questions feel free to contact us. With 35 plus years of experience with Renishaw products we can help with all your application needs as well as your after sales support.
