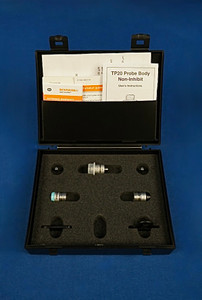

Renishaw TP20 NI Body CMM Probe Kit With 1 LF & 1 MF Module with 1 Year Warranty A-1371-0604

MSRP: $4,454.00
$2,730.00
(You save $1,724.00)
(No reviews yet) Write a Review
Condition:
New
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

Product Description

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging.





Country of Manufacture:   UNITED KINGDOM

Brand:   RENISHAW

Model:   TP20

MPN:   A-1371-0604





Item Description

Renishaw TP20 Non-Inhibit Touch Probe Body, TP20 Low Force Module & TP20 Medium Force Module New with 1 Year Warranty.


 Renishaw List Price $4262.00

 Non-Inhibit Touch Probe Body

The Non-Inhibit version of the TP20 has been designed to better perform than the Standard TP20 where probe operation is within a magnetic field.

The TP20 NI Probe body is not affected by magnetic fields and the probe trigger must be inhibited through software during change cycles using the MCR20

 The Low Force Probe Module

Identified by a green cap, is suited to applications that require a low trigger force to measure workpiece deflection.

The low force probe module has the following recommended stylus limits:

Steel and carbide styli up to 30 mm long
No star or cranked styli

The Medium Force Probe Module

Identified by a grey cap, is suited to applications where a higher trigger force than standard is required.

The medium force probe module has the following recommended stylus limits:

Any stylus type up to 60 mm long
Star and cranked styli up to 20 mm offset


About TP20

renishaw-tp20-probe-module-specification-.jpeg renishaw-tp20-touch-probe-module-force-range-specification-chart-.jpeg

The TP20 is a compact 5-way, or 6-way, kinematic touch-trigger probe system. The two-piece design, comprising probe body and detachable stylus module(s), connected using a highly repeatable magnetic kinematic coupling. This provides the facility to change stylus configurations either manually or automatically without the need for requalification of the stylus tips, thereby giving significant time savings in inspection routines.

Modules offering a range of trigger forces allow the probe performance to be best matched to the measurement task. A set of probe extensions is also available. The stylus mounting thread accepts styli from the Renishaw M2 range.

 renishaw-tp20-module-comparative-stylus-lengths-.jpeg renishaw-tp20-module-application-guide-.jpeg



This is by far the best price you will find on a Renishaw TP20 Non-Inhibit Touch Probe Body,

TP20 Low Force Module & TP20 Medium Force Module New with 1 Year Warranty. Why pay retail prices

when you can purchase new with warranty from Metrology parts. Purchase with confidence from a

Paypal verified retailer. If what you order is not what you receive you will be refunded the full purchase

price of this sale. Metrology Parts would like the opportunity to earn your business  for this sale and

all of your future Renishaw needs. If you have any questions feel free to contact us. With 36 plus

years of experience with Renishaw products we can help with all of your application needs as well

as your after sales support.
