Renishaw TP1S/TP1SM CMM Touch Probe New in Box with 1 Year Warranty A-1041-7540 A-1041-7541

MSRP: $3,812.00
(You save $1,812.00)
(No reviews yet) Write a Review
2.00 LBS
Calculated at Checkout

Product Description



New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store.




Country of Manufacture:   UNITED KINGDOM


Model:   TP1S

MPN:   A-1041-7540 A-1041-7541




Item Description

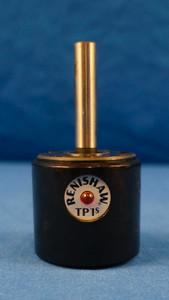

New in box with 1 Year Warranty Renishaw TP1S or TP1SM CMM touch probe.




The TP1S is a robust and reliable probe which is especially suited for manual CMMs.

It is available in two versions with differing plug orientations.

Renishaws current list price for the TP1S/TP1SM is $3474.00


About TP1S / TP1SM

The TP1S/TP1SM is a 1 inch diameter, shank mounted probe that is ideal for manual CMMs due to its robust design and large overtravel range. The probe signal is carried to the CMM via an external cable, and the probe has an adjustable stylus force to help optimise its performance. It has an M3 stylus mount and can carry a wide range of styli.

The TP1S system comprises the TP1S probe and a suitable interface; PI 4-2, PI 7-2, PI 200 or UCC.

The TP1SM is similar to TP1S, but with the cable connector rotated 90°.


TP1S / TP1SM specification

Specification summaryTP1S(M)

Principal application

Manual CMMs.
Sense direction 5-axis: ±X, ±Y, +Z
Unidirection repeatability maximum (2s µm) (at stylus tip) 0.50 µm (0.00002 in)
Pre-travel variation 360° (XY plane) ±2 µm (0.00008 in)
Weight  *excluding shank and cable 128 g* (4.52 oz*)
Stylus range M3
Stylus force range (adjustable) 0.1 N - 0.5 N
Stylus force (set by Renishaw) 0.15 N
Stylus overtravel (typical)  XY plane:  ±19.5°
+Z axis:  8.5 mm (0.34 in) @ 0.1 N
5 mm (0.20 in) @ 0.5 N
Maximum extension on PH10 series N/A
Mounting method Shank to suit machine
Suitable interface PI 4-2, PI 7-2, PI 200, UCC


Please specify TP1S or TP1SM with your order.

Also please specify CMM shank needed to mount the probe head to the quill of your machine.

Shank sizes are found on page 1-44 of your current Renishaw catalog.

Please do not hesitate to contact us if you need any help in placing your order.

Whats included in this sale is a new in box Renishaw TP1S or TP1SM probe head with shank to suit your application.

This is by the far the best price you will find on a new Renishaw TP1S or TP1SM in box with 1 Year Warranty.

Why pay retail prices when you can purchase new with warranty from Metrology Parts.

Purchase with confidence from a Paypal verified retailer.

If what you order is not what you receive you will be refunded the full purchase price for this sale.

Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw needs.

If you have any questions feel free to contact us. With 35 plus years of experience with Renishaw products we can help with all of your application needs as well as your after sales support.
