Renishaw SP25M CMM SM25-1 SH25-1 Scanning Module Kit New With 1 Year Warranty A-2237-1101

MSRP: $5,477.00
$3,280.00
(You save $2,197.00)
(No reviews yet) Write a Review
Weight:
3.00 LBS
Shipping:
Calculated at Checkout

Product Description

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging.





Country of Manufacture:   UNITED KINGDOM

Brand:   RENISHAW

Model:   SM25-1 SH25-1

MPN:   A-2237-1101





Item Description

Renishaw SP25M SM25-1 SH25-1 Scanning Module Kit New with 1 Year Warranty.

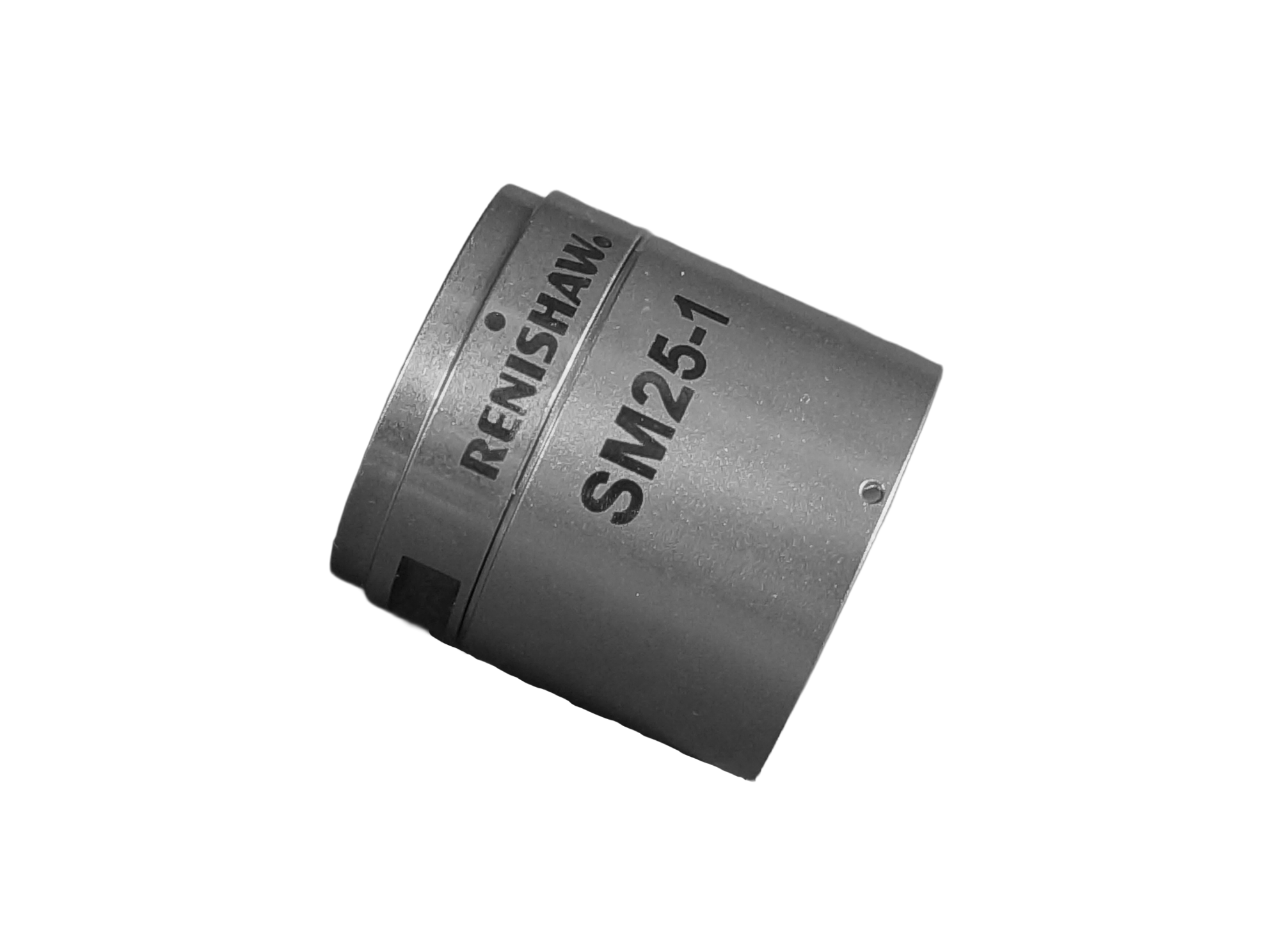

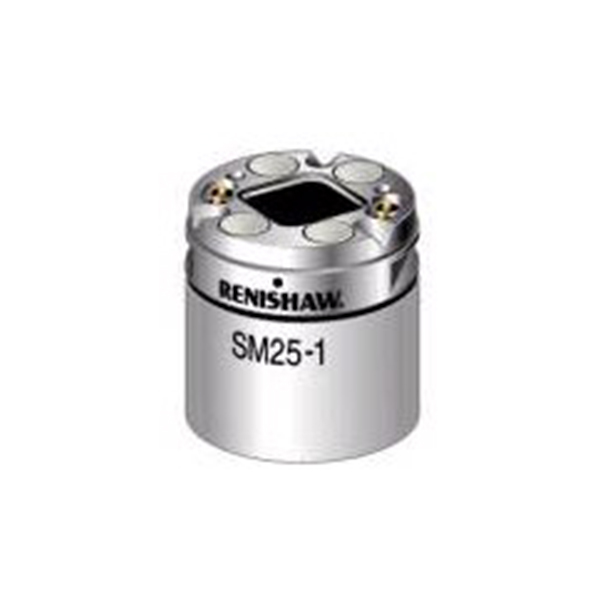

Product A-2237-1111, SM25-1 scanning module only

 Renishaw List Price $5241.00



About SP25M

The SP25M comprises two sensors in a single housing. Users can switch between a choice of four scanning modules (which can carry M3 styli with lengths from 20 mm to 400 mm) and an adaptor module that is compatible with Renishaw's TP20 range of probe modules. This capability enables scanning and touch-trigger probing in a single probe system.

The SP25M's compact size and autojoint mounting makes it compatible with the PH10M/MQ and PH6M probe heads. It can also be mounted on a multiwired extension bar. Together, these combinations permit excellent reach and access to part features.

For details of the technology in SP25M, refer to the SP25M Technical Paper.



Range of scanning modules designed to provide optimised scanning performance over their specified
stylus length ranges:



SM25-1 / 2 / 3 / 4 recommended for use with linear stylus arrangements

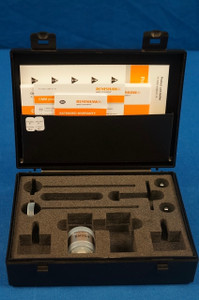

Kit includes 1 x SM25-1 and 2 x SH25-1

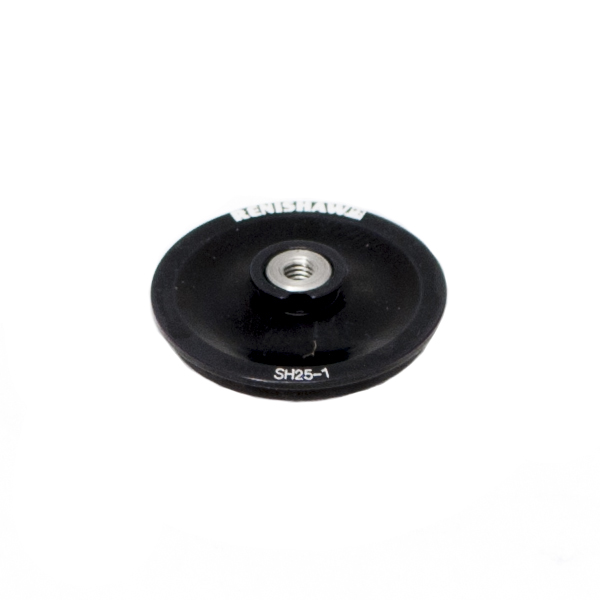

Product A-2237-1301, SH25-1 stylus holder for SM25-1

Features and benefits

  • World's smallest scanning probe at only 25 mm in diameter
  • Excellent metrology - isolated optical sensing and 3rd order polynomial compensation
  • Four modules provide optimal performance across a range of stylus lengths (up to 400 mm)
  • Two sensors in one - scanning and touch-trigger
  • Crash protection and simple stylus changing
  • Fast and simple probe calibration cycle
  • Ideal for profile and form measurement
  • Suitable for use on motorised indexing heads for greater flexibility and shorter scanning cycle times
  • Simple and robust design for greater reliability - no motors or locking mechanisms





SP25M modules and stylus holders

A range of module kits allows SP25M users to build up their probing capability over time.

Each SM25-# scanning module is optimised in terms of gain and spring rate to suit the range of stylus lengths specified. For every module, there is a matching SH25-# stylus holder.



renishaw-sp25m-system-components-.jpg renishaw-sp25m-stylus-performance-.jpg

The SH25-3 and SH25-4 stylus holders are constructed with a fixed carbon fibre stem to which an M3 stylus is mounted, selected to provide the correct working length.

Whilst the SP25M can carry cranked (non straight) styli configurations when using SM25-1/2/3/4 scanning modules and the original standard stylus holders (SH25-1/2/3/4) but for optimum metrology where larger offsets are required Renishaw recommends the new SH25-2A/3A/4A range of stylus holder, specifically designed to meet the challenges posed by such stylus arrangements.



This is by the far the best price you will find on a Renishaw SP25M SM25-1 SH25-1 Scanning Module Kit New with 1 Year Warranty.

Why pay retail prices when you can purchase from Metrology Parts.

Purchase with confidence from a Paypal verified retailer.

If what you order is not what you receive you will be refunded the full purchase price for this sale.

Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw needs.

If you have any questions feel free to contact us. With 36 plus years of experience with Renishaw products we can help with all of your application needs as well as your after sales support.
