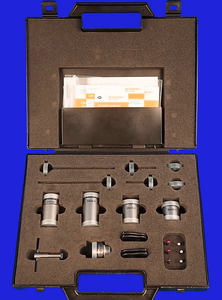

Renishaw SP25M CMM SCAN/TTP Full Combination Kit Fully Tested 90 Day Warranty A-2237-1015

MSRP: $20,613.00
$8,700.00
(You save $11,913.00)
(No reviews yet) Write a Review
Condition:
Used
Weight:
4.00 LBS
Shipping:
Calculated at Checkout

Product Description

Condition:

Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended.





Country of Manufacture:   UNITED KINGDOM

Brand:   RENISHAW

Model:  SP25M SPECIAL SCAN/TTP FULL COMBINATION KIT

MPN:   A-2237-1015





Item Description

Renishaw SP25M Special SCAN/TTP Full Combination Kit Fully Tested with 90 Day Warranty.


Renishaw List Price $19,725.00



SP25M Special SCAN/TTP Full Combination Kit


SP25M Scanning Probe - Compact and Versatile Scanning System

  • The world's most compact and versatile scanning probe system
  • Two sensors in one - a scanning probe and a touch-trigger probe using TP20 stylus modules
  • Rapid and repeatable automatic interchange between modular elements
  • Excellent scanning accuracy across an M3 stylus range of 20 mm to 400 mm (0.79 in to 15.75 in)
  • Low cost, entry-level kits available which can easily be expanded
  • Isolated optical metrology technology gives unrivalled measurement performance, even with long styli
  • Compatible with PH10M PLUS / PH10MQ PLUS articulating probe probe heads allowing access to many features with fewer styli
  • Ultra compact system at Ø25 mm (Ø0.98 in) for superior part accessibility
  • Compatible with probe extensions bars up to 100 mm long
  • Flexible change rack where ports can be easily configured to carry any system element
  • Bump-stop crash protection in the Z-axis, together with a detachable stylus holder for XY
    crash protection

About SP25M

The SP25M comprises two sensors in a single housing. Users can switch between a choice of four scanning modules (which can carry M3 styli with lengths from 20 mm to 400 mm) and an adaptor module that is compatible with Renishaw's TP20 range of probe modules. This capability enables scanning and touch-trigger probing in a single probe system.

The SP25M's compact size and autojoint mounting makes it compatible with the PH10M/MQ and PH6M probe heads. It can also be mounted on a multiwired extension bar. Together, these combinations permit excellent reach and access to part features.

For details of the technology in SP25M, refer to the SP25M Technical Paper.

SP25M System Components




renishaw-sp25m-probe-system-attributes-.jpeg renishaw-sp25m-set-up-options.jpeg



Features and benefits

  • World's smallest scanning probe at only 25 mm in diameter
  • Excellent metrology - isolated optical sensing and 3rd order polynomial compensation
  • Four modules provide optimal performance across a range of stylus lengths (up to 400 mm)
  • Two sensors in one - scanning and touch-trigger
  • Crash protection and simple stylus changing
  • Fast and simple probe calibration cycle
  • Ideal for profile and form measurement
  • Suitable for use on motorised indexing heads for greater flexibility and shorter scanning cycle times
  • Simple and robust design for greater reliability - no motors or locking mechanisms

SP25M Use

renishaw-sp25m-use-scanning-probe-.jpeg renishaw-sp25m-touch-trigger-probe-options-.jpeg

SP25M modules and stylus holders

A range of module kits allows SP25M users to build up their probing capability over time.

Each SM25-# scanning module is optimised in terms of gain and spring rate to suit the range of stylus lengths specified. For every module, there is a matching SH25-# stylus holder.

The SH25-3 and SH25-4 stylus holders are constructed with a fixed carbon fibre stem to which an M3 stylus is mounted, selected to provide the correct working length.

Whilst the SP25M can carry cranked (non straight) styli configurations when using SM25-1/2/3/4 scanning modules and the original standard stylus holders (SH25-1/2/3/4) but for optimum metrology where larger offsets are required Renishaw recommends the new SH25-2A/3A/4A range of stylus holder, specifically designed to meet the challenges posed by such stylus arrangements.




This is by the far the best price you will find on a Renishaw SP25M Special SCAN/TTP Full Combination Kit Fully Tested with 90 Day Warranty.

Why pay retail prices when you can purchase with warranty from Metrology Parts.

Purchase with confidence from a Paypal verified retailer with 6 Month Warranty.

If what you order is not what you receive you will be refunded the full purchase price for this sale.

Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw needs.

If you have any questions feel free to contact us. With 36 plus years of experience with Renishaw products we can help with all of your application needs as well as your after sales support.
