Model: SH80K STYLUS HOLDER
MPN: A-2238-0430
Item Description

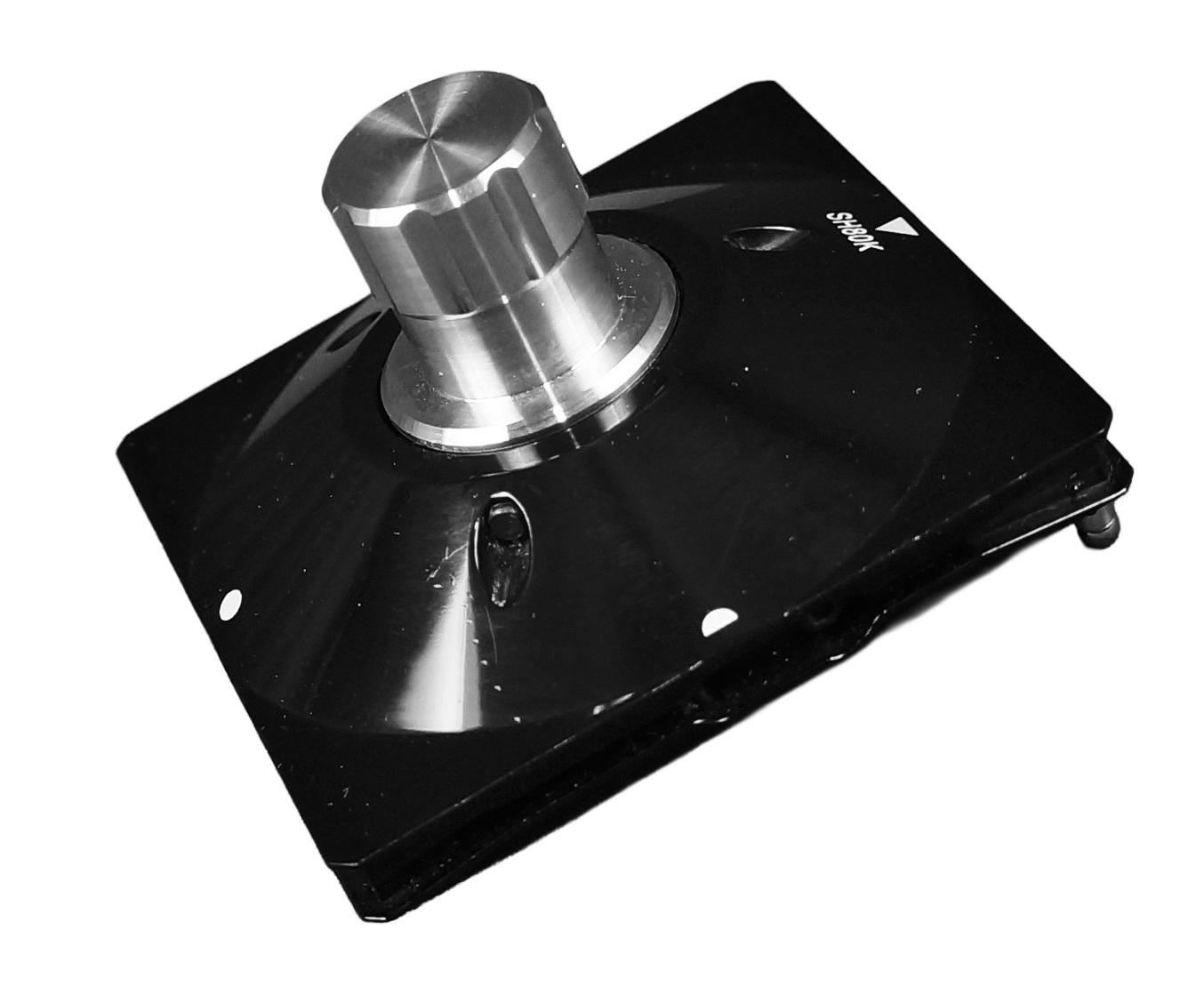

Renishaw SH80K Stylus Holder for SP80 and SP80H Scanning Probes Display Model with 6 Month Warranty.
SH80K
The SP80 and SP80H do not use absolute encoders. Therefore, when you power off the probe the encoder's position is not remembered. This means that when the probe is powered back on it is necessary to re-home the probe. The SH80K is a device with a kinematic location ball that allows you to power off the SP80 and SP80H probes and turn it back on without needing to re-home the probe. This is achieved by fitting the SH80K before the power is switched off. The kinematic location ball locates into a kinematic location screw that is fitted to the probe and therefore holds the probe mechanism in a fixed position. This means that the readheads remain in a fixed position and therefore the probe does not need to be re-homed on power up.
The SH80K can be fitted to the probe either manually or automatically using an SCP80 / SCP80V. It is possible to use SH80K with any SP80 or SP80H probe, providing you fit the kinematic location screw to the probe body.
SH80 Assembly
Mounting / Removing the SH80 / SH80K on the SP80 / SP80H Body
The SH80 incorporates the male half of a magnetic kinematic joint that connects to the female half of the joint on the bottom of both the SP80 and SP80H probe body. The SH80 carries M5 styli, and has a 5-way centre design that can be rotationally adjusted for infinite angle position of the stylus.
Fit the SH80 / SH80K into the SH80 removal tool and slowly offer up to the SP80 / SP80H, whilst aligning the triangular alignment marks indicating the front of the probe, and allow the magnetic attraction to make the kinematic joint – the damping mechanism located in the SH80 will ensure a gentle connection. The SH80 tool should also be used to remove the SH80 and SH80K. Ultimately we recommend that where possible stylus changing is performed automatically to give the best system performance.
When removing the SH80 / SH80K manually it is recommended to use the SP80 removal tool, which is supplied as standard with every probe kit. Slide the removal tool into the grooves on the SH80 / SH80K. Then use the SH80 removal tool to act as a lever.
