Renishaw SCR200 CMM Stylus Module Change Rack New in Box with 1 Year Warranty A-1085-0002

MSRP: $7,879.00
$5,575.00
(You save $2,304.00)
(No reviews yet) Write a Review
Condition:
New
Weight:
5.00 LBS
Shipping:
Calculated at Checkout

Product Description

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging.





Country of Manufacture:   UNITED KINGDOM

Brand:   RENISHAW

Model:   SCR200

MPN:   A-1085-0002





Item Description

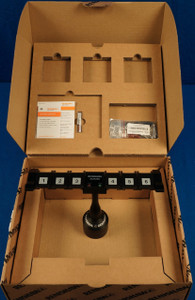

Renishaw SCR200 Stylus Changing Rack, Mounting Kit and SCR200 Location Plate New with 1 Year Warranty.


Renishaw List Price $7879.00



About TP200




The TP200 system components are:

  • TP200 or TP200B probe body (the TP200B is a variant with increased vibration tolerance)
  • TP200 stylus module - choice of fixed overtravel forces: SF (standard force) or LF (low force)
  • PI 200 probe interface
  • SCR200 stylus changing rack

There is also an EO module (extended overtravel) which has the same overtravel force

as the SF but provides increased operating range and protection in the probe Z axis.



The TP200 is a electronic probe using strain gauge technology which gives higher accuracy than kinematic touch trigger probes.



Features and benefits

  • Strain-gauge technology offers excellent repeatability and precision 3D form measurement.
  • Zero reseat errors.
  • No lobing effect.
  • 6-way measuring capability
  • Stylus reach of up to 100 mm (GF styli)
  • Rapid probe module changing without the need to re-qualify the stylus tips
  • Life of >10 million triggers

 renishaw-scr200-stylus-module-change-rack-specification-.jpeg renishaw-scr200-stylus-module-change-rack-part-numbers-.jpeg


TP200 / TP200B probe body

The TP200 probe uses micro strain gauge transducers to deliver excellent repeatability and

accurate 3D form measurement even with long styli.

The sensor technology gives sub-micron repeatability and eliminates the lobing characteristics

encountered with kinematic probes. The solid state ASIC electronics within the probe ensure

reliable operation over millions of trigger points.

The TP200B uses the same technology as TP200 but has been designed to have higher

tolerance to vibration. This helps to overcome the problem of 'air' trigger generation which

can arise from vibrations transmitted through the CMM or when using long styli with faster

positioning speeds. Please note that we do not recommend the use of TP200B with the LF

module or cranked/star styli.



TP200 specification

Summary

TP200

TP200B

Principal application

DCC CMM where high accuracy is required.

As TP200 but where 'air' trigger events occur.

Sense directions

6-axis: ±X, ±Y, ±Z

6-axis: ±X, ±Y, ±Z

Unidirectional repeatability (2s µm)

Trigger level 1:  0.40 µm (0.000016 in)

Trigger level 2:  0.50 µm (0.00002 in)

Trigger level 1:  0.40 µm (0.000016 in)

Trigger level 2:  0.50 µm (0.00002 in)

XY (2D) form measurement deviation

Trigger level 1:  ±0.80 µm (0.000032 in)
Trigger level 2:  ±0.90 µm (0.000036 in)

Trigger level 1:  ±1 µm (0.00004 in)
Trigger level 2:  ±1.2 µm (0.000047 in)

XYZ (3D) form measurement deviation

Trigger level 1:  ±1 µm (0.00004 in)

Trigger level 2:  ±1.40 µm (0.000056 in)

Trigger level 1:  ±2.50 µm (0.0001 in)

Trigger level 2:  ±4 µm (0.00016 in)

Repeatability of stylus change

With SCR200:  ±0.50 µm (0.00002 in) max.
Manual:  ±1 µm (0.00004 in) max.

With SCR200:  ±0.50 µm (0.00002 in) max.
Manual:  ±1 µm (0.00004 in) max.

Trigger force (at stylus tip)

XY plane (all modules):  0.02 N

Z axis  (all modules):  0.07 N

XY plane (all modules):  0.02 N

Z axis  (all modules):  0.07 N

Overtravel force (@ 0.50 mm displacement)

XY plane (SF/EO module):  0.2 N to 0.4 N
XY plane (LF module):  0.1 N to 0.15 N
Z axis (SF/EO module):  4.90 N
Z axis (LF module):  1.60 N

XY plane (SF/EO module):  0.2 N to 0.4 N
XY plane (LF module):  0.1 N to 0.15 N
Z axis (SF/EO module):  4.90 N
Z axis (LF module):  1.60 N

Weight (probe sensor and module)

22 g (0.78 oz)

22 g (0.78 oz)

Maximum extension (if on a PH10 series head)

300 mm (11.81 in)

300 mm (11.81 in)

Maximum recommended stylus length (M2 styli range)

SF/EO module:  50 mm (1.97 in) steel to 100 mm (3.94 in) GF

LF module:  20 mm (0.79 in) steel to 50 mm (1.97 in) GF

 SF/EO module:  50 mm (1.97 in) steel to 100 mm (3.94 in) GF

LF module:  20 mm (0.79 in) steel to 50 mm (1.97 in) GF

Mounting method

M8 thread

M8 thread

Suitable interface

PI200, UCC

PI200, UCC

Stylus module changing rack

Automatic:  SCR200
Manual:  MSR1

Automatic:  SCR200
Manual:  MSR1

Stylus range

M2

M2

TP200 stylus modules

Module

SF (standard force)

LF (low force)

EO (extended overtravel)

Application

General use.

Small diameter stylus balls or where minimum force is essential.

Extra overtravel to enable the CMM to stop safely from higher probing speeds.

Comments

Styli up to 100 mm long and ball diameter > 1 mm.

Balls less than 1 mm diameter.

Same overtravel force as SF.

Extra 8 mm of overtravel in probe Z axis.



This is by the far the best price you will find on a Renishaw SCR200 Rack New with 1 Year Warranty.

Why pay retail prices when you can purchase with warranty from Metrology Parts.

Purchase with confidence from a Paypal verified retailer with 1 Year Warranty

If what you order is not what you receive you will be refunded the full purchase price for this sale.

Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw needs.

If you have any questions feel free to contact us. With 36 plus years of experience with Renishaw products we can help with all of your application needs as well as your after sales support.
