Renishaw RSP3-2 REVO Probe for CMM 3D Scanning New with 1 Year Warranty

MSRP: $7,432.00
(You save $1,932.00)
(No reviews yet) Write a Review
3.00 LBS
Calculated at Checkout

Product Description


New: A brand-new, unused, undamaged item.


Country of Manufacture:   UNITED KINGDOM


Model:   RSP3-2 REVO PROBE

MPN:   A-3060-0332


Item Description

Renishaw REVO RSP3-2 Probe New - 1 Year Warranty.

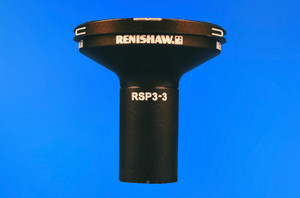

REVO RSP3 3D Scanning Probes

RSP3 provides the REVO® system with 3D-scanning (x,y,z) and crank stylus capabilities.

RSP3 complements the RSP2 probe, providing the REVO system with 3D-scanning (x,y,z) and crank stylus capabilities. It is used for 3-axis scanning, such as with a fixed REVO head angle during measurement. The RSP3 range of probes allow different lengths of stylus to be used whilst maintaining optimum metrology performance.

The RSP3 range of 3D scanning probes gives REVO-2 the ability to carry cranked stylus arrangements and enhanced capability for carrying long styli

Design Principles of the RSP3 Scanning Probes

RSP3 uses an optical transducer sensor and a pivoting motion system similar to that found in SP25M system.

The probe's pivoting motion system has two diaphragm springs. One of the RSP3 springs allows movement in all directions whilst the other (pivot) spring is stiff in (probe) X and Y, but allows movement in Z. Its optical transducer sensor system has two infrared light emitting diodes that project invisible infrared beams on mirrors mounted on the pivoting moving structure within the probe. The mirrors focus the beams back onto two position sensitive devices (PSDs) which provide signal outputs in the three probe axes: p,q,r (converted into X, Y, Z signals by the calibration routine).

Unlike the SP25M, the RSP3's probe and module elements are built as one.


RSP3-# Changing System

The RCP TC-2 (thermally controlled REVO-2 change port) is used for changing RSP3-1 / 2 / 3 / 4. RCP TC-3 is used for changing RSP3-6. The FCR25 (flexible change rack) is configured to change SH25-# or the newer RSH3-# stylus holders. RSH3-6# stylus holders should be changed using RCP2.

The RSP3-1 / 2 / 3 / 4 probes can be used for both 3D-scanning (X, Y, Z) and touch-trigger applications

They enable accurate scanning measurement with effective stylus lengths ranging from 20 mm - 394 mm

The RSP3 range uses 3-axis scanning with fixed REVO-2 head angles during measurement

RSH3 stylus holders are intended to fit only with their respective RSP3 probe


This is by the far the best price you will find on a Renishaw RSP3-2 REVO Probe Kit New with 1 Year

Warranty. Why pay retail prices when you can purchase with warranty from Metrology Parts. Purchase

with confidence from a Paypal verified retailer. If what you order is not what you receive you will be

refunded the full purchase price for this sale. Metrology Parts would like the opportunity to earn your

business for this sale and all of your future Renishaw needs. If you have any questions feel free to

contact us. With 36 plus years of experience with Renishaw products we can help with all of your

application needs as well as your after sales support.
