Renishaw RENGAGE HAAS Mazak RMP600 Q Machine Tool Probe & HSK A63 Shank Display Model

Product Description

Condition:

Display Model: An item in excellent, new condition with no functional defects. The item does not come with original packaging but includes all accessories found with the original product and 6 Month Warranty.

Country of Manufacture:   UNITED KINGDOM

Brand:   RENISHAW

Model:   RMP600 (Q) HSK A63

MPN:   A-5312-0001 M-2045-0188

Item Description

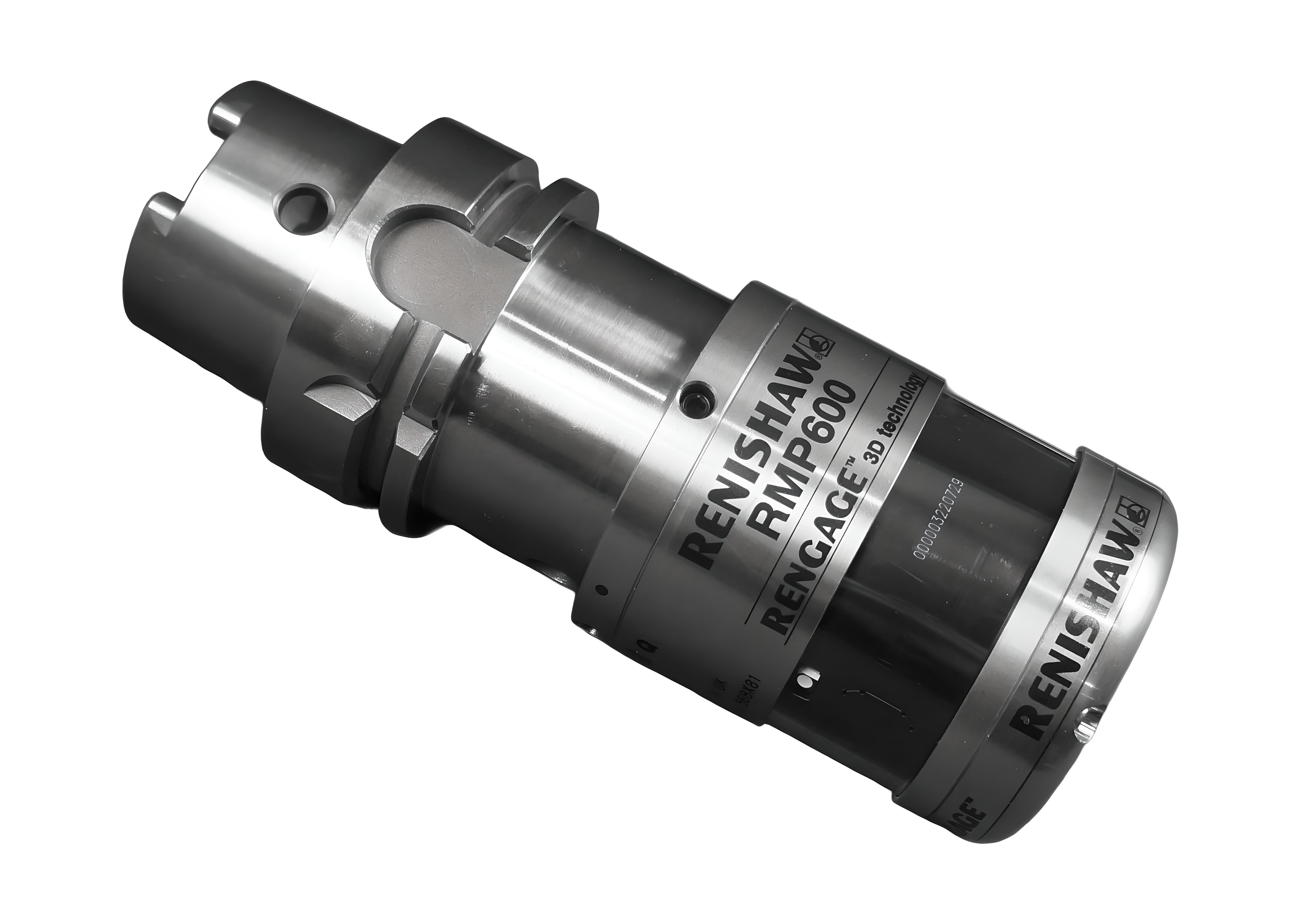

Renishaw RMP600 Q Radio Transmission Probe & HSK A63 Shank Display Model with 6 Month Warranty.

RENGAGE Technology

Rengage combines proven silicon strain gauge technology and ultra compact electronics to achieve unparalleled performance and capabilities. Suitable for a wide range
of machine tool applications and able to address the 3D performance limitations of many alternative probe designs, only Renishaw’s MP250, OMP400 and RMP600 probes feature this technology.

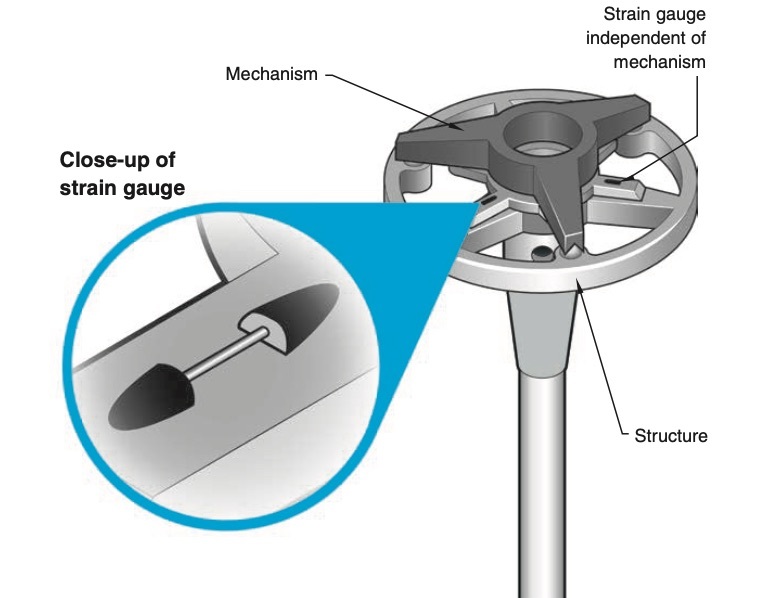

Sensing is independent of the probe mechanism which means that probes with Rengage technology provide capabilities not associated with conventional design.

Advantages

• Unbeatable 3D accuracy and repeatability enables reliable on-machine gauging/measurement

• Improved accuracy with long styli means difficult parts can be probed more easily

• Ultra low trigger force for delicate work helps eliminate surface and form damage

• Compact design enables better access in restricted spaces and small machines

• Robust, even in the harshest environment, means reliable measurement and long service life

Key Benefits

• Reduced set-up and calibration time
• Improved control processes and quality set-up • Reduced costs

RENGAGE Superior 3D Performance

Lobing, a characteristic of all probes, is caused by bending of the stylus and movement of the probe mechanism before the probe registers contact with a surface. It is therefore dependent upon:

Length and stiffness of the stylus

Force required to trigger the probe

Direction of contact with the surface

Design of the probe mechanism

Rengage technology as featured in RMP600 was tested for 3D accuracy against products from other brands. The results as illustrated in the error plots below are compelling.

Note 1 Performance specification is tested at a standard test velocity of 240 mm/min (9.45 in/min). Significantly higher velocity is possible depending on application requirements.

Note 2 Trigger force, which is critical in some applications, is the force exerted on the component by the stylus when the probe triggers. The maximum force applied will occur after the trigger point (overtravel). The force value depends on related variables including measuring speed and machine deceleration. Equipped probes offer ultra low trigger forces.

Note 3 Stylus overtravel force in XY plane occurs 80 μm after the trigger point and rises by 0.35 N/mm, 36 gf/mm (32 ozf/in) until the machine tool stops (in the high force direction and using a carbon fibre stylus).

Note 4 Stylus overtravel force in +Z direction occurs 7 μm to 8 μm after the trigger point and rises by 1.5 N/mm, 153 gf/mm (137 ozf/in) until the machine tool stops.

Note 5 These are the factory settings, manual adjustment is not possible

About the HSK A + C 63 Shank

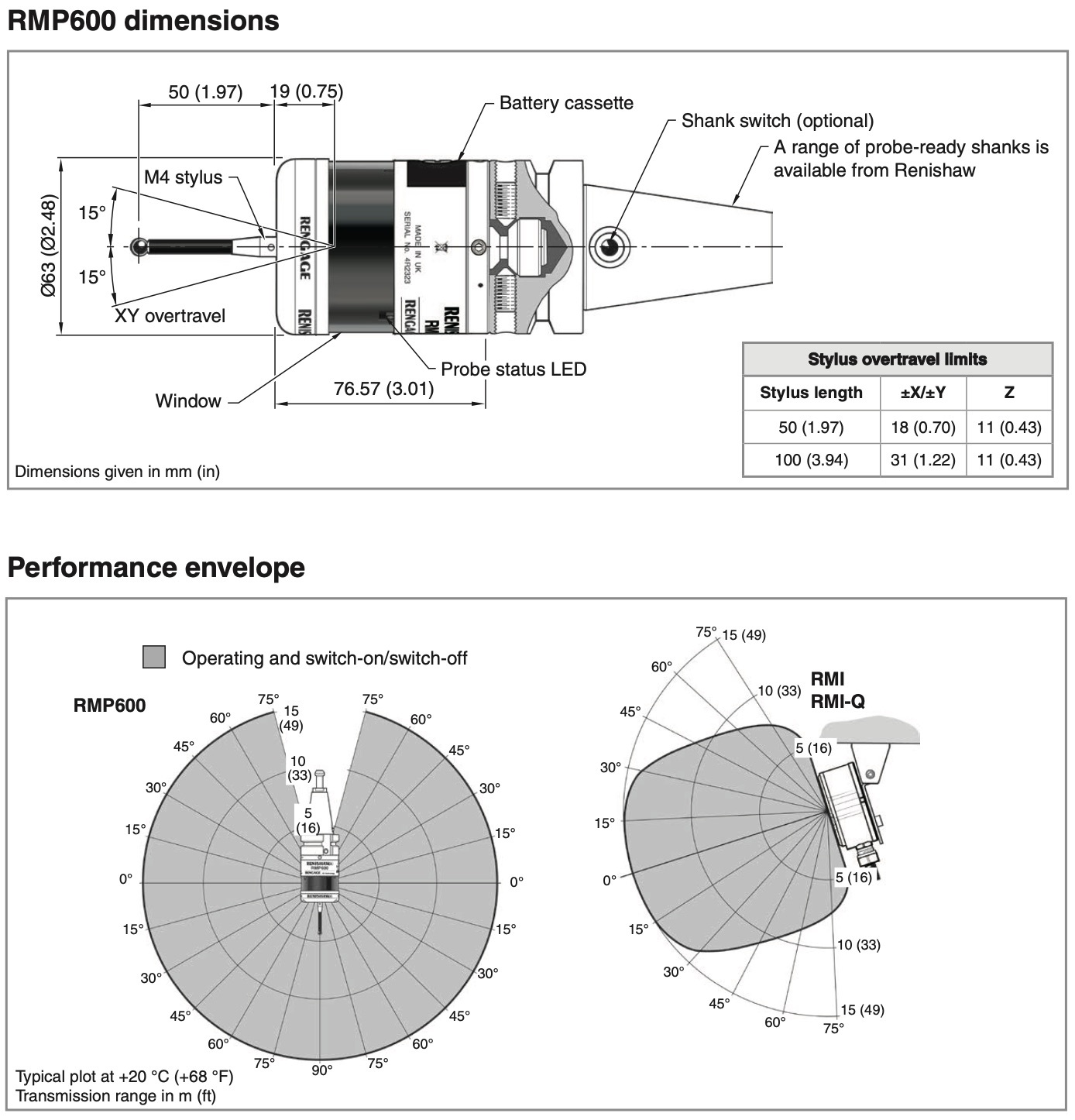

Designed to secure the probe into an HSK A+C 63 machine tool spindle. Shank gauge length 53.00 mm (2.087 inches), and it is suitable for OSP60, OMP60, RMP60 and RMP600 (when not used in shank switch configuration).

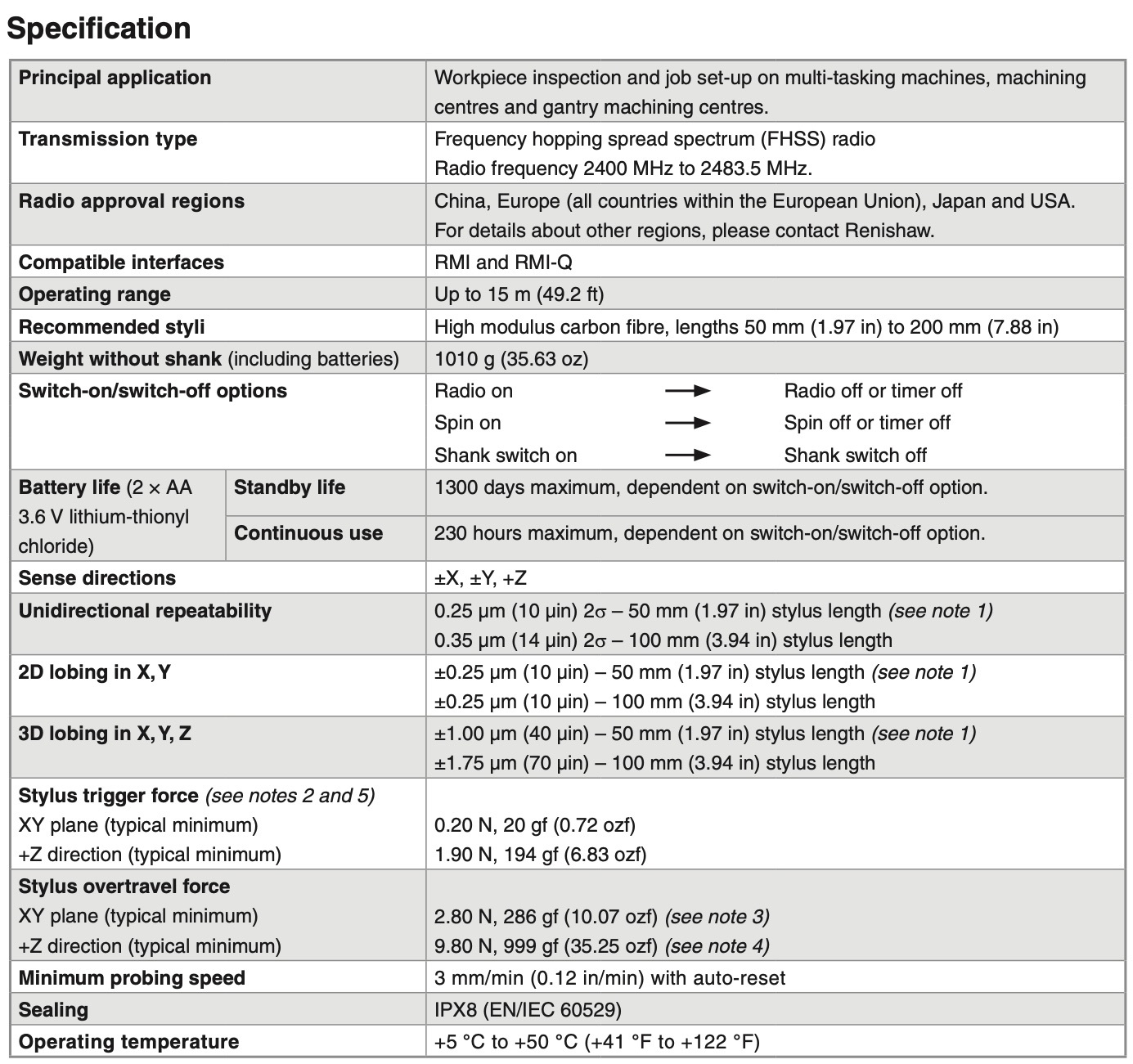

Technical Table

Purchase with confidence from a Paypal verified retailer. Renishaw RMP600 Q Radio

Transmission Probe & HSK A63 Shank Display Model Warranty. If what you order is not what

you receive you will be refunded the full purchase price for this sale. Metrology Parts would

like the opportunity to earn your business for this sale and all of your future Renishaw

product needs. If you have any questions feel free to contact us. With 36 plus years of

experience with Renishaw products we can help with all of your application needs as well as

your after sales support.
