Renishaw Non-Inhibit TP20 CMM Probe Kit 3-6 Way Modules New in Box Warranty A-1032-2555 A-1032-0419

MSRP: $6,681.00
$4,190.00
(You save $2,491.00)
(No reviews yet) Write a Review
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

Product Description



Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store.





Country of Manufacture:   UNITED KINGDOM

Brand:   RENISHAW

Model:   TP20

MPN:   A-1032-2555 A-1032-0419







Item Description

Renishaw Non Inhibit TP20 CMM touch probe kit with three 6 way probe modules New in box 1 Year Warranty.






The TP20 NI probe differs from the standard TP20 body in that it is not affected by magnetic fields. However the probe trigger must be inhibited through software during cycle changes if using the MCR20 probe rack.



Product A-1371-0419, TP20 6-way probe module   Product A-1371-0419, TP20 6-way probe module   Product A-1371-0419, TP20 6-way probe module



What's Included in this kit:

TP20 NI body

three 6 way TP20 modules with certificates,

cleaning kit, TP20 manual, Styli Wrenches





About TP20

The TP20 is a compact 5-way, or 6-way, kinematic touch-trigger probe system. The two-piece design, comprising probe body and detachable stylus module(s), connected using a highly repeatable magnetic kinematic coupling. This provides the facility to change stylus configurations either manually or automatically without the need for requalification of the stylus tips, thereby giving significant time savings in inspection routines.

Modules offering a range of trigger forces allow the probe performance to be best matched to the measurement task. A set of probe extensions is also available, as is a 6-way module. The stylus mounting thread accepts styli from the Renishaw M2 range.

The TP20 system is easily retrofitted and is compatible with existing touch trigger probe interfaces, extensions and adaptors.

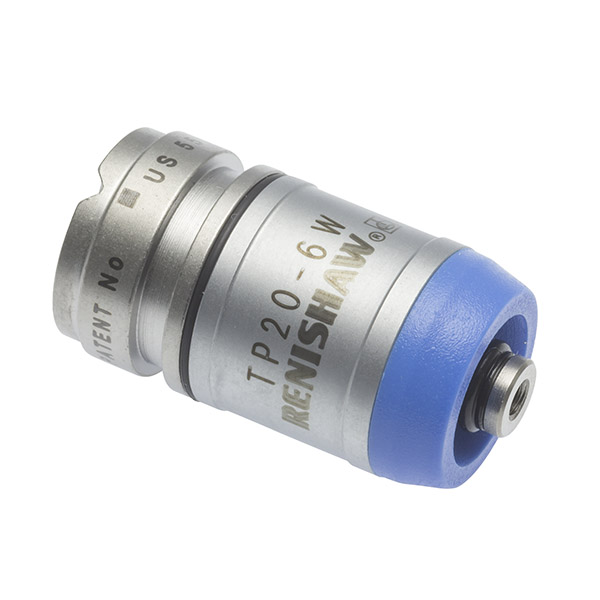

The blue tipped 6 way probe module with 6 way probing technology performs all the functions of a 5 way module but also has been designed for measuring undercuts.



System components

The system components are:

  • TP20 probe body
  • TP20 probe module - seven variants allow optimisation to suit application
  • MCR20 module changing rack - automatic operation
  • MSR1 module storage rack - manual operation
  • Suitable for interfacing with Renishaw's PI4-2, PI7-2 or PI200


TP20 specification

Sense directions

All modules except 6W

6W

±X, ±Y, +Z

±X, ±Y, ±Z

Suitable interface   PI4-2, PI7-2, PI200, UCC
Pre-travel variation

LF

SF / EM1 / EM2

MF

EF

6W

±0.60 µm (± 0.000023 in)

±0.80 µm (± 0.000032 in)

±1.00 µm (± 0.000039 in)

±2.00 µm (± 0.000079 in)

±1.50 µm (±0.000058 in)

Unidirectional repeatability

 LF / SF / EM1 / EM2

MF

EF

6W

±0.35 µm (± 0.000014 in)

±0.50 µm (± 0.000020 in)

±0.65 µm (± 0.000026 in)

±0.80 µm (± 0.000032 in)

Repeatability of stylus changing

MCR20

Manual

±0.50 µm (± 0.000020 in)

±1.00µm (± 0.000040 in)

Stylus range   M2
Mounting method   M8 thread

Probe modules



This is by far the best price you will find on a Renishaw TP20 NI Probe Kit, 3 TP20 6 Way Probe Modules New with 1 Year Warranty.

Why pay retail prices when you can purchase from Metrology parts.

Purchase with confidence from a Paypal verified retailer.

If what you order is not what you receive you will be refunded the full purchase price of this sale.

Metrology Parts would like the opportunity to earn your business  for this sale and all of your future Renishaw needs.

If you have any questions feel free to contact us. With 36 plus years of experience with Renishaw products we can help with all of your application needs as well as your after sales support.
