We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended.
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: MP700E
MPN: A-2107-0159

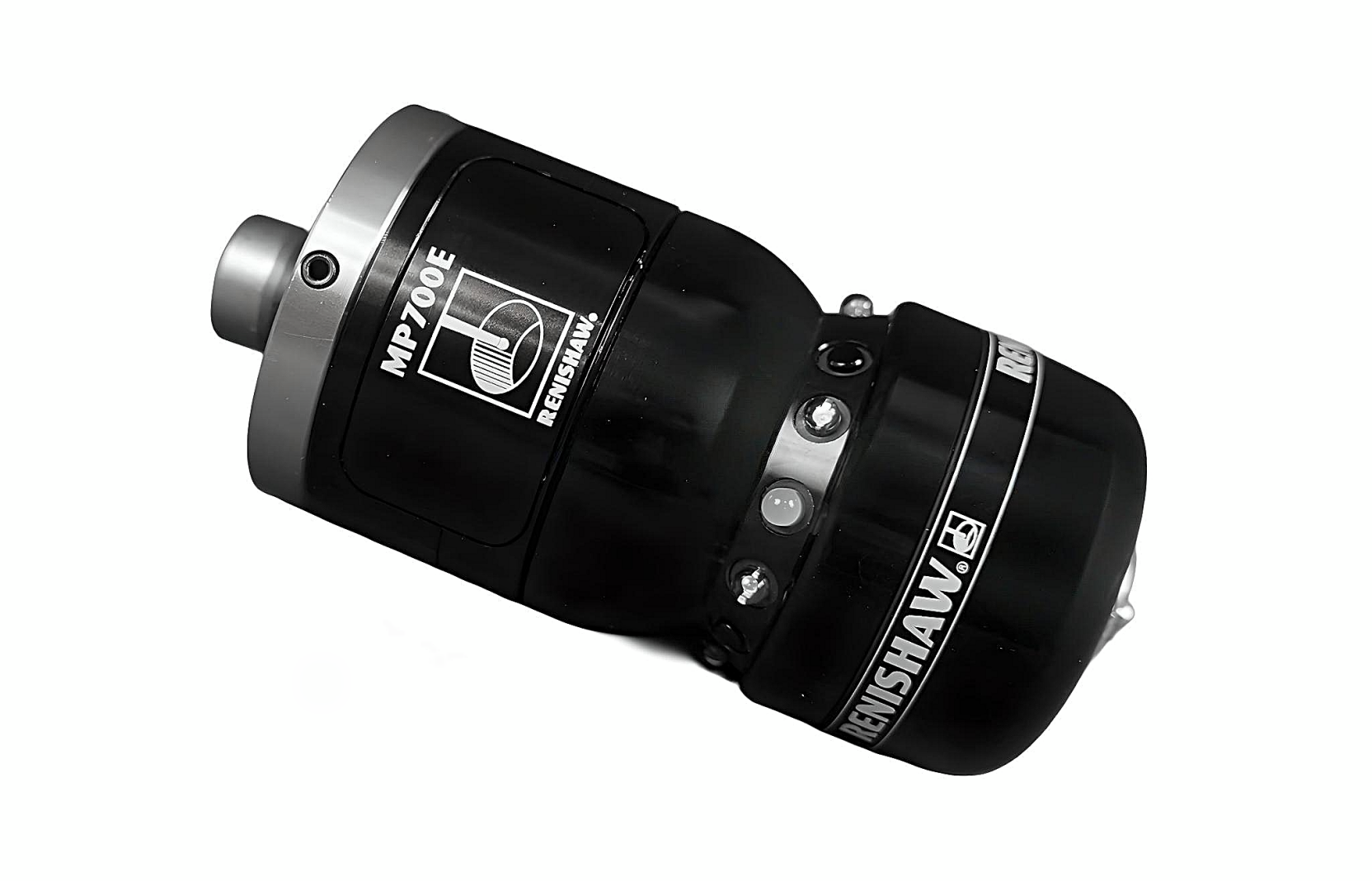

Renishaw MP700E Machine Tool Probe Head Fully Tested with 90 Day Warranty.
Introduction
The high power optical transmission system is based upon standard optical systems, enhancements allow the system to transmit up to 12 m (39.3 ft) benefiting from reflections to maintain transmission. It enables the use of the MP700E and MP10E in applications requiring large probe and receiver separation.
|
System Comparison |
|
|
|
|
Operating range |
Turn-on range |
|
MP700E or MP10E and OMME |
9.5 m (31.1 ft) |
6 m (19.6 ft) |
|
MP700 or MP10 and OMM |
6 m (19.6 ft) |
3 m (9.8 ft) |
|
MP700 or MP10 and OM1 |
3 m (9.8 ft) |
3 m (9.8 ft) |
For dimensional and system operation, please use in conjunction with:
MP700 user guide - part no. H-2000-5132, MP10 user guide - part no. H-2000-5059, OMM user guide - part no. H-2000-5044, MI 12 user guide - part no. H-2000-5073
MP700E 70 Output
The high power optical transmission system is based upon standard optical systems, enhancements allowing the system to transmit up to 12 m (39.3 ft) and benefiting from reflections to maintain contact with the receiver. It enables the use of the MP700E and MP10E in applications requiring large probe and receiver separation.
For dimensional and system operation, please use in conjunction with:
MP700 probe data sheet - part no. H-2000-2246, OMM data sheet - part no. H-2000-2275,

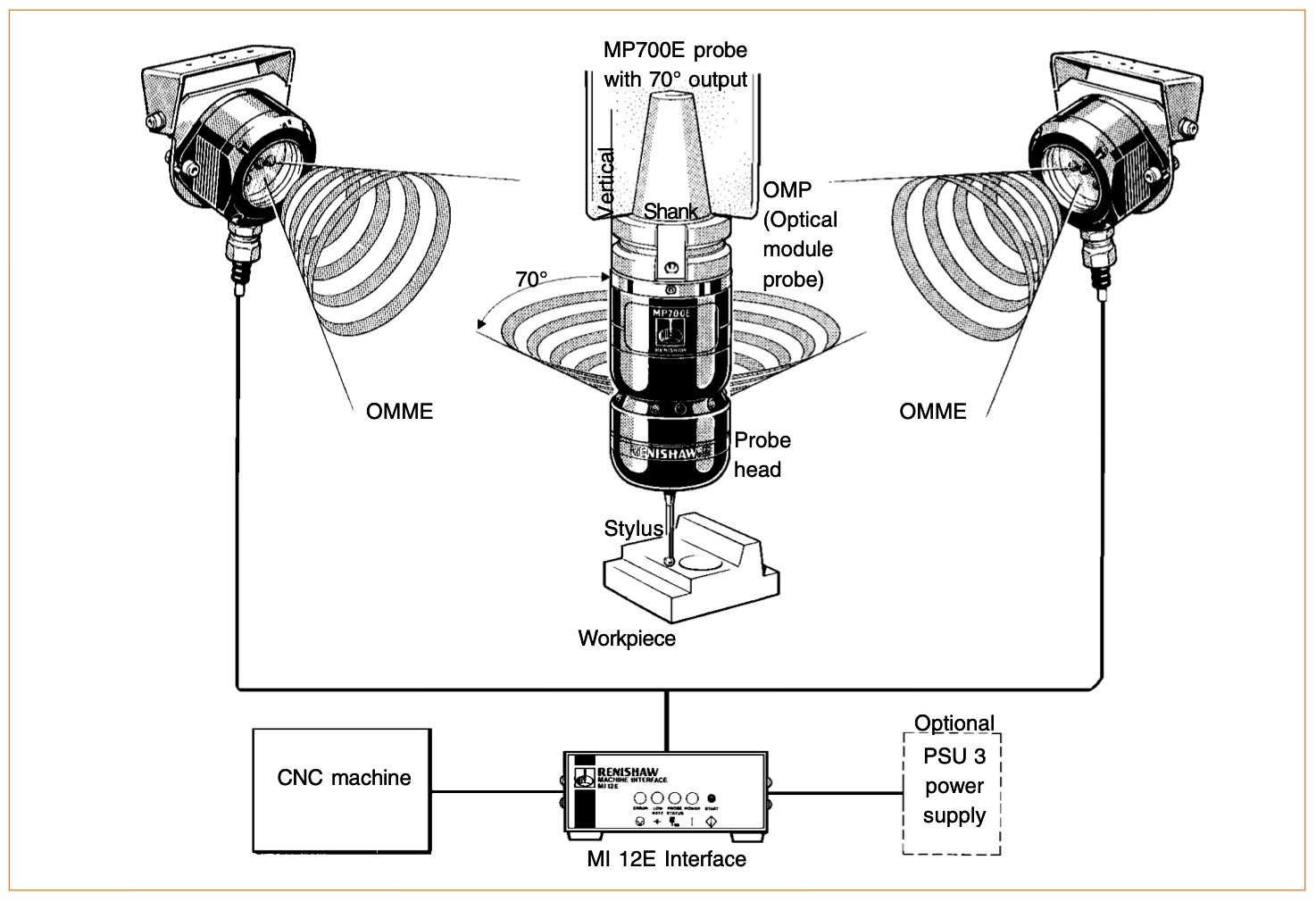

System components MP700E and MP10E

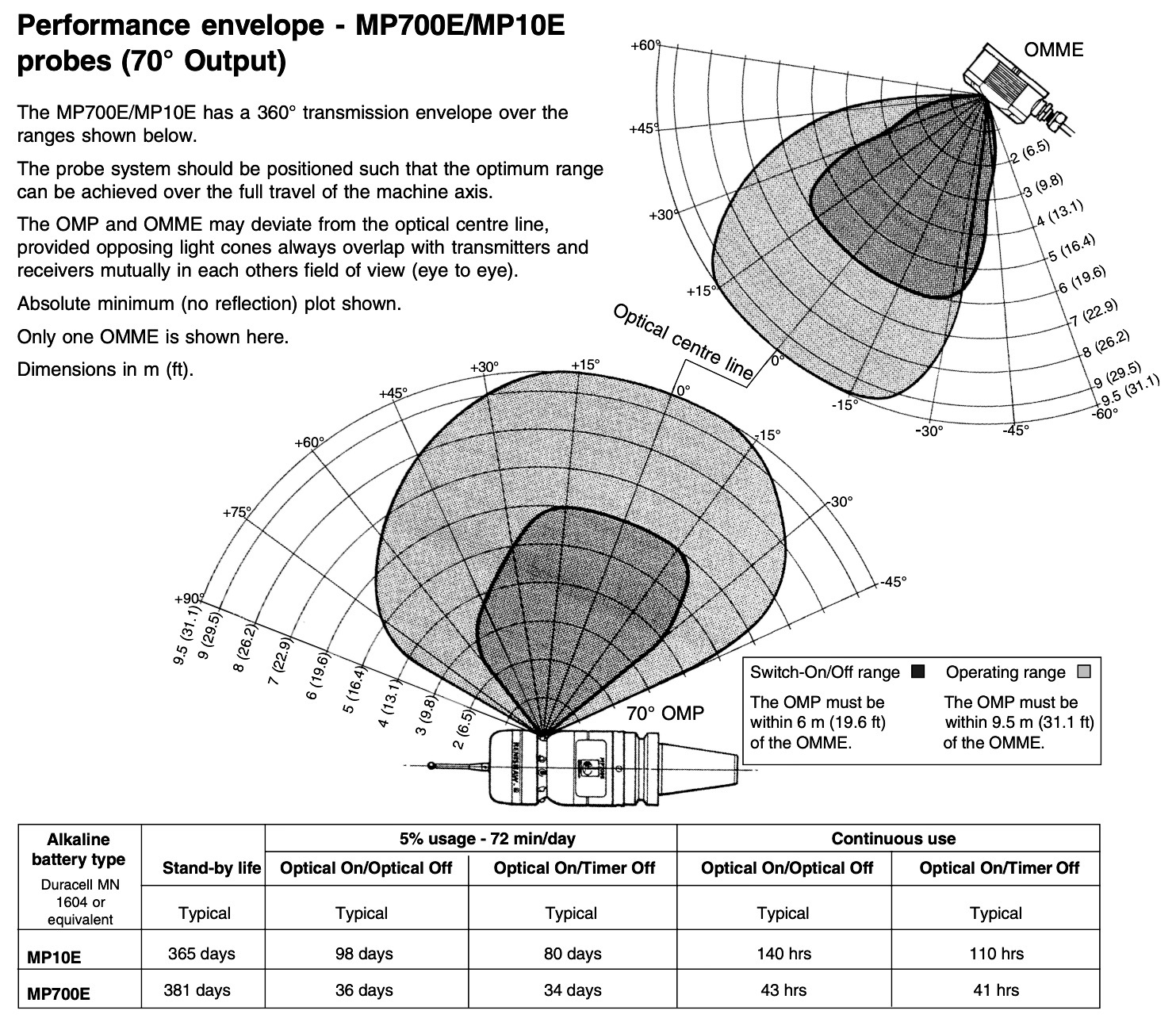

Using an MP700E or MP10E gives an increased 360° operating envelope over MP700 or MP10. The MP700E and MP10E probes are available in a 70° version with extended optical lobe.
OMME
The OMME incorporates an auto-gain circuit which changes sensitivity according to the strength of the OMP signal.
The specification applies to a test rig gauging speed of 240 mm/min (9.45 in/min) with zero time delay.
§ Performance specification is for a test velocity of 30 mm/min (1.18 in/min) with a 50 mm stylus and with the trigger filterdelay set to 8 ms.
† Performance specification is with a 50 mm stylus.
This is a great price for a Renishaw MP700E Machine Tool Probe Head Fully Tested with 90 Day
Warranty. Purchase with Paypal from Metrology Parts a Paypal verified retailer. If what you order is not
what you receive you will be refunded the full purchase price for this sale. Metrology Parts would like
the opportunity to earn your business for this sale and all of your future Renishaw product needs. If
you have any questions feel free to contact us. With 36 plus years of experience with Renishaw products
we can help with all of your application needs as well as your after sale support.
