We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
Display Model: An item in excellent, new condition with no functional defects. The item is missing original packaging and was used for demo purposes. Comes with a 6 Month Warranty
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: MP12 ISO 40 SHANK
MPN: A-2075-0009 M-2045-0065
Item Description:

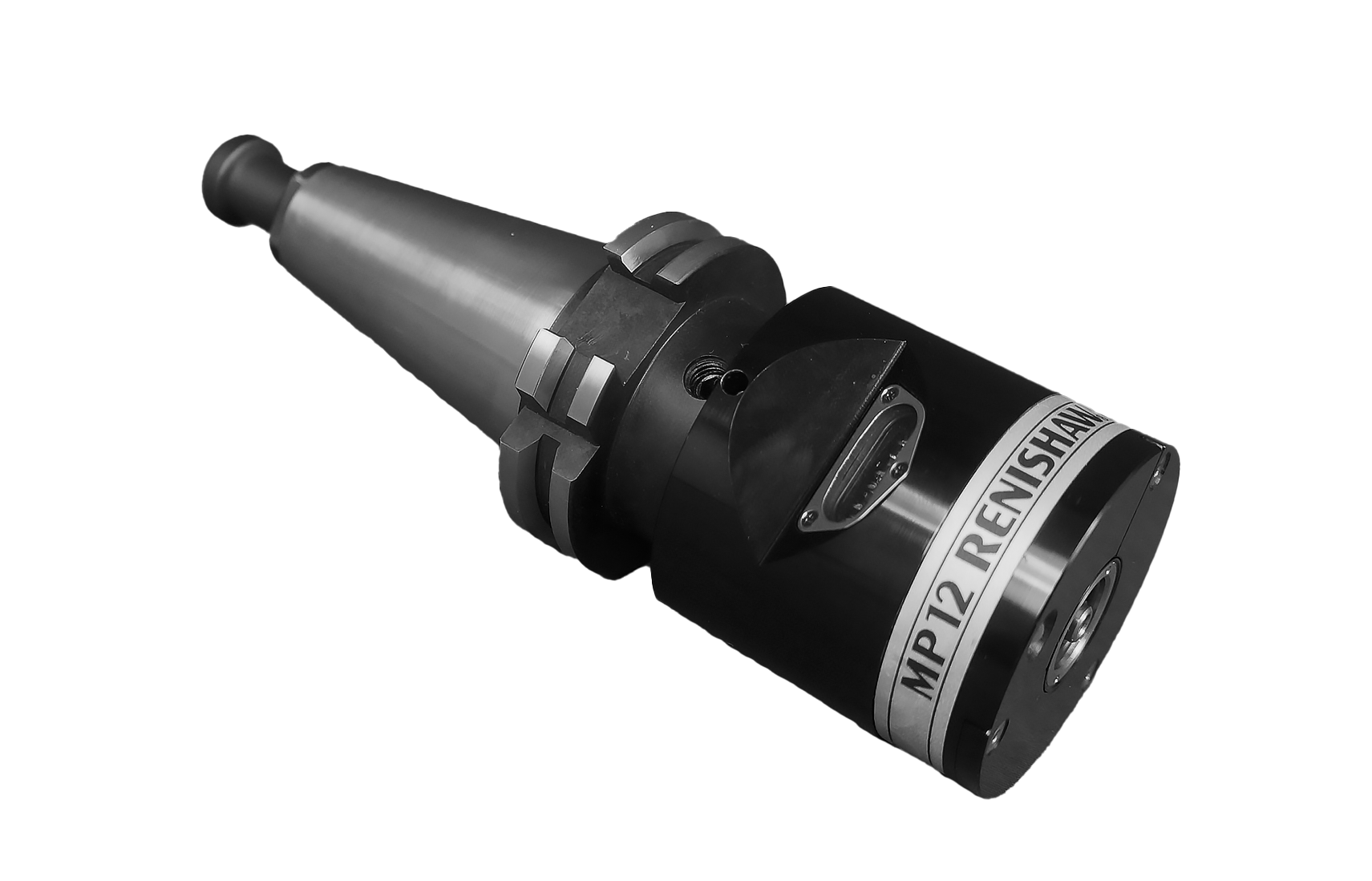

Renishaw MP12 Probe Head & ISO 40 Machine Tool Shank Display Model with 6 Month Warranty.

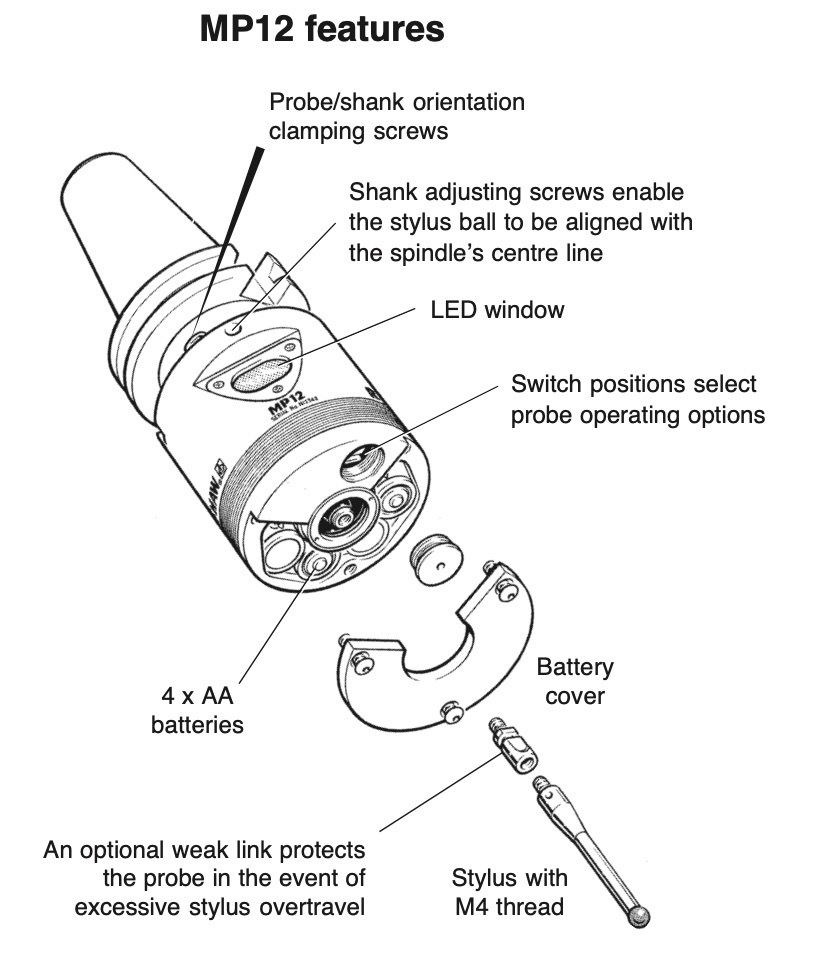

MP12 Features
The MP12 is a compact 3D touch trigger inspection probe (±X, ±Y, +Z sense directions), used for workpiece set-up and inspection on CNC machining centres.
Power for the probe is supplied by four AA batteries contained within the OMP (optical module probe). Battery life is typically
205 days (optical on/off) or 165 days (optical on/timeout off) at 5% usage.
OMP–OMM/OMI Alignment
The probe can be set through 360° to align with the OMM/OMI window. The OMM/OMI transmission direction is set by adjusting the mounting bracket.
Stylus on-centre adjustment
Translational adjustment enables the centre of the stylus ball to be aligned with the spindle’s centre line.
System Components
OMM (optical module machine) + MI 12 interface unit
Signals pass from the CNC control to the OMP via the MI 12 and OMM, and return along the same route. The MI 12 converts probe signals into a form compatible with the CNC control. OMM transmission and reception ranges are factory set to 100%. If OMM signals interfere with probes on other machines, the optical range can be reduced.
OMI (Optical Machine Interface)
This is an alternative to the OMM + MI 12, combining the functions of the OMM and the MI 12 in a single unit.
MP12, OMM and OMI sealing
The units are sealed to IPX8 and designed for reliable operation in the machine tool environment.
PSU3 power supply unit for MI 12 or OMI
This can be used when a 24 V supply is not available from the machine.
Software for probe routines
The MP12 is used with Renishaw’s single and double touch probing cycles.
Performance Envelope
Natural reflective surfaces within the machine may increase the signal transmission range. Coolant residue accumulating on the OMP, OMM and OMI windows will have a detrimental effect on transmission performance. Operation in temperatures of 0 °C to 5 °C (32 °F to 41 °F) or 50 °C to 60 °C (122 °F to 140 °F) will result in some reduction in range. The overhang of the tool changer gripper flange may restrict the optical beam spread on some larger shanks. Where systems are installed on multi-axis machines, care should be taken to ensure the probe LEDs have line of sight to the OMM/OMI.
If two systems are operating in close proximity, take care to ensure that signals transmitted from the OMP on one machine are not received by the OMM/OMI on the other machine, and vice versa. If required, internal OMP/OMM/OMI switches can be set to reduce signal output power by 50%.
This is the best price for a Renishaw MP12 Probe Head & ISO 40 Machine Tool Shank Display Model
with 6 Month Warranty. Purchase with Paypal from Metrology Parts a Paypal verified retailer. If what
you order is not what you receive you will be refunded the full purchase price for this sale. Metrology
Parts would like the opportunity to earn your business for this sale and all of your future Renishaw
product needs. If you have any questions feel free to contact us. With 36 plus years of experience with
Renishaw products we can help with all of your application needs as well as your after sale support.
